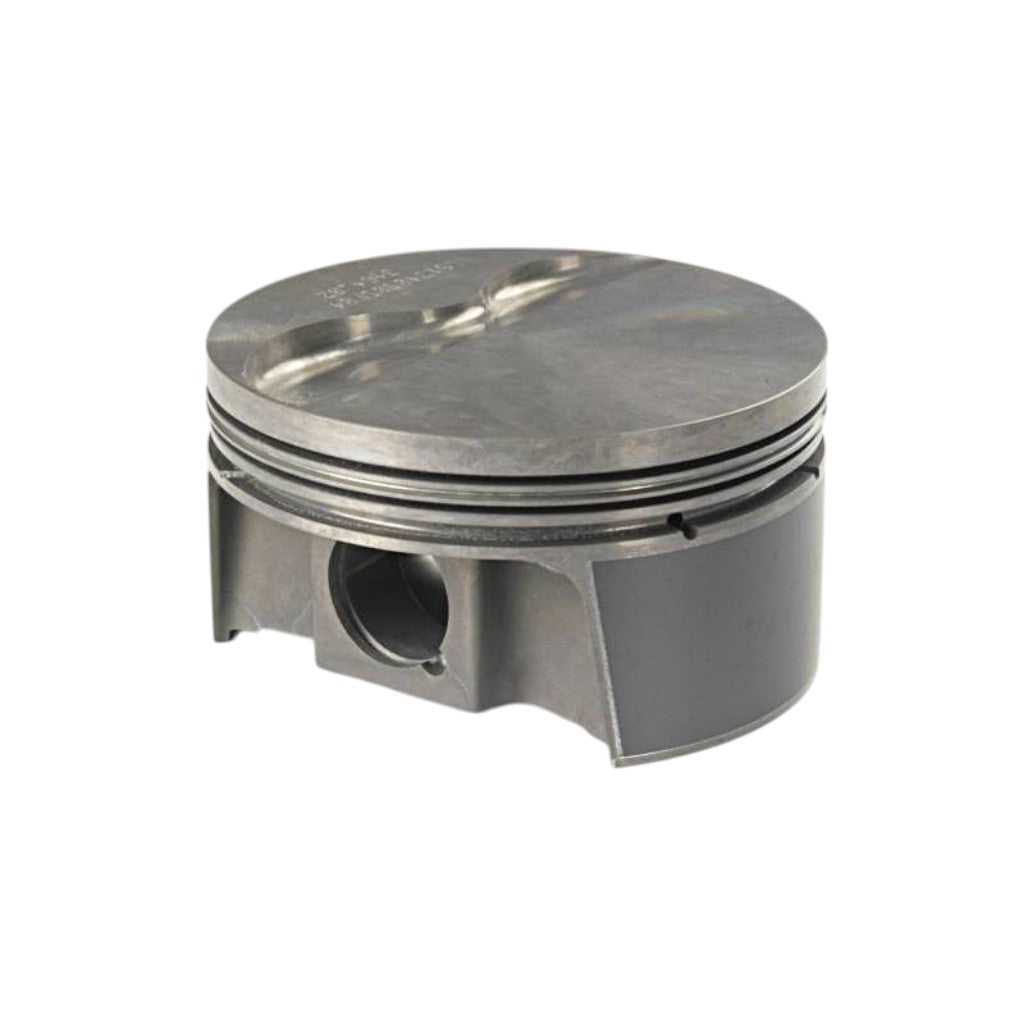

MAHLE 928989305 Piston Kit 86.50mm / -14.2cc / 8.6CR / 22mm Pin for TOYOTA 2JZ-GTE Engine
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
MAHLE 928989305 Piston Kit 86.50mm / -14.2cc / 8.6CR / 22mm Pin for TOYOTA 2JZ-GTE Engine
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
MAHLE 928989305 is a forged piston kit engineered for high-performance TOYOTA 2JZ-GTE 3.0L engines. Made from 2618 aluminum alloy with an anodized top ring groove to withstand extreme load conditions.
- Bore: 86.50 mm
- Compression Height (CH): 34.0 mm
- Stroke: 86.0 mm
- Rod Length: 142.0 mm
- Dish Volume: -14.2 cc
- Compression Ratio: 8.6:1 (with 46 cc chamber)
- Piston Pin: 22 mm, steel, 103 g
- Piston Weight: 337 g
- Material: Forged 2618 aluminum
- Ring Grooves: 1.2 / 1.2 / 2.8 mm
Application: TOYOTA 2JZ-GTE (Supra) 3.0L — ideal for turbocharged and racing builds.
