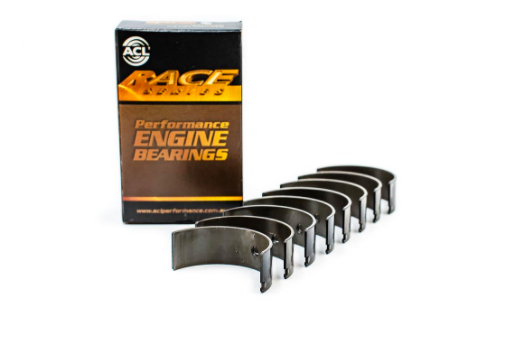

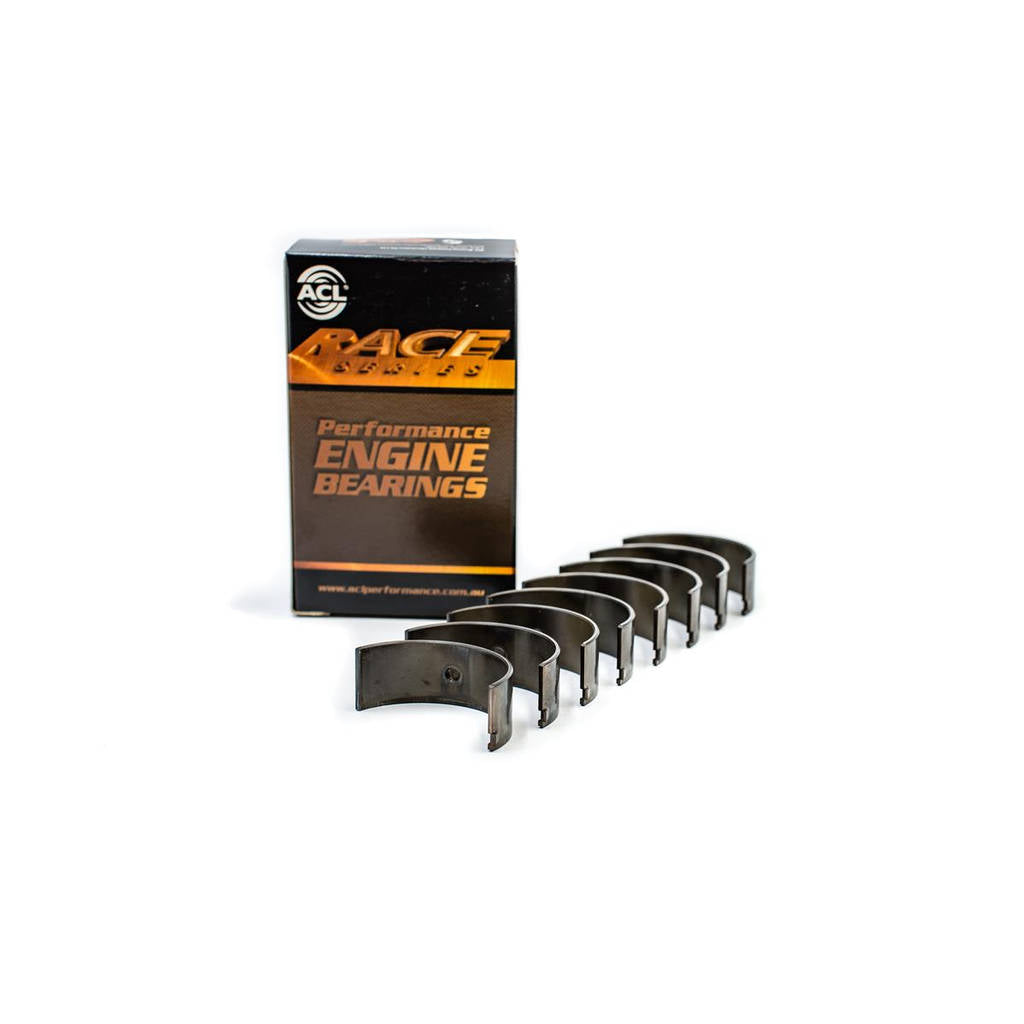

ACL 4B1780H-STD Conrod Bearing Set TOYOTA 4AGE / 4AGZE Photo-0

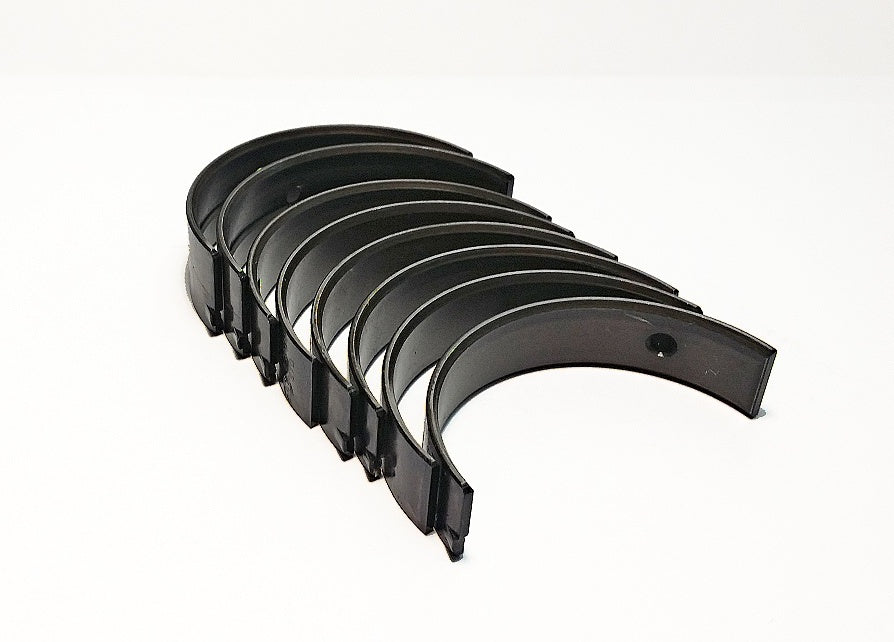

ACL 4B1780H-STD Conrod Bearing Set TOYOTA 4AGE / 4AGZE Photo-1

ACL 4B1780H-STD Conrod Bearing Set TOYOTA 4AGE / 4AGZE

Sale price€43,21

Shipping calculated at checkout

ACLP/N: 4B1780H-STD
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature:


  • High strength overlay plate with reduced thickness for improved fatigue properties.
  • Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • Increased crush for improved bearing retention.
  • Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
  • Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • Tight consistent wall tolerances to help you maintain consistent clearances.
  • Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

Technical information:

Tunnel [mm] - 45.000 / 45.024
Shaft [mm] - 41.985 / 42.000
Max. Wall - 1.487
Max. Length - 17.1
Half type - Identical halves
Note - Suits 42mm shaft.
Weight [KG] - 0.12
