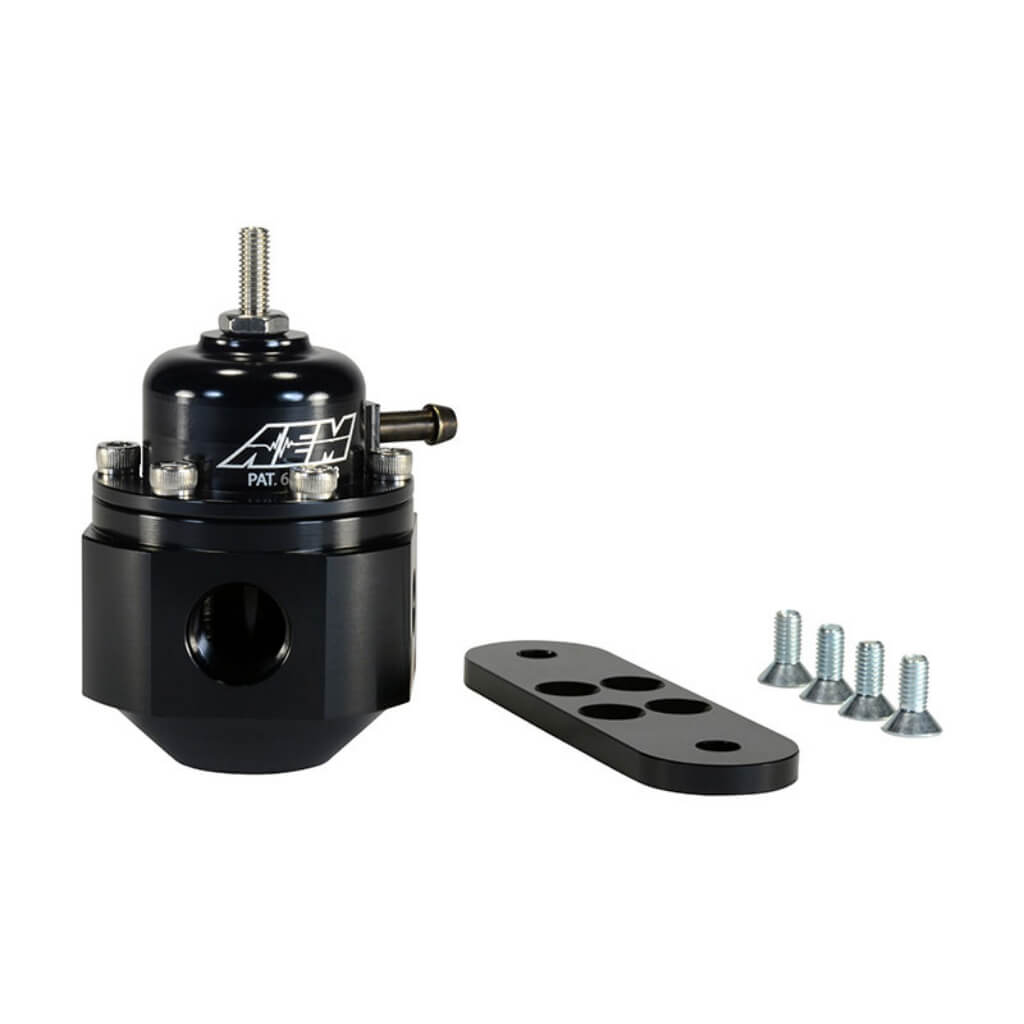

AEM's Universal Adjustable Fuel Pressure Regulator (AEM 25 302BK) is capable of supporting enough fuel flow for engines up to 1000 horsepower. The universal AEM FPR is tapped to accept a -6 AN, or 9/16”x18 fittings and includes a 1/8 NPT port for a fuel pressure gauge or pressure sensor pick up.
- Universal fuel pressure regulator adapts to virtually any vehicle
- Adjustable from 20 psi to maximum fuel pump capacity
- Supports fuel flow in racing applications up to 1,000 horsepower
- Boost dependent rising fuel pressure rate
- CNC-machined from 6061-T6 billet aluminum
- In the box: Regulator, Mounting Bracket
Technical specs
- Inlet Attachment - Female Threads
- Fittings Included - No
- Mounting Bracket Included - Yes
- Gauge Port - Yes
- Inlet Quantity - One
- Regulator Style - Return
- Boost/Vacuum Reference Port - Yes
- Rebuildable - Yes
- Regulator Location -Inline
- Regulator Finish- Black anodized
- Outlet Attachment - Female Threads
- Pressure Range (psi) - 20-150
- Outlet Quantity - One
- Regulator Material - Aluminum
- Inlet Size -6 AN
- Outlet Size -6 AN
- Return Attachment - Female Threads
- Boost/Vacuum Rise Ratio - 1:01
- Return Fitting Size -6 AN
