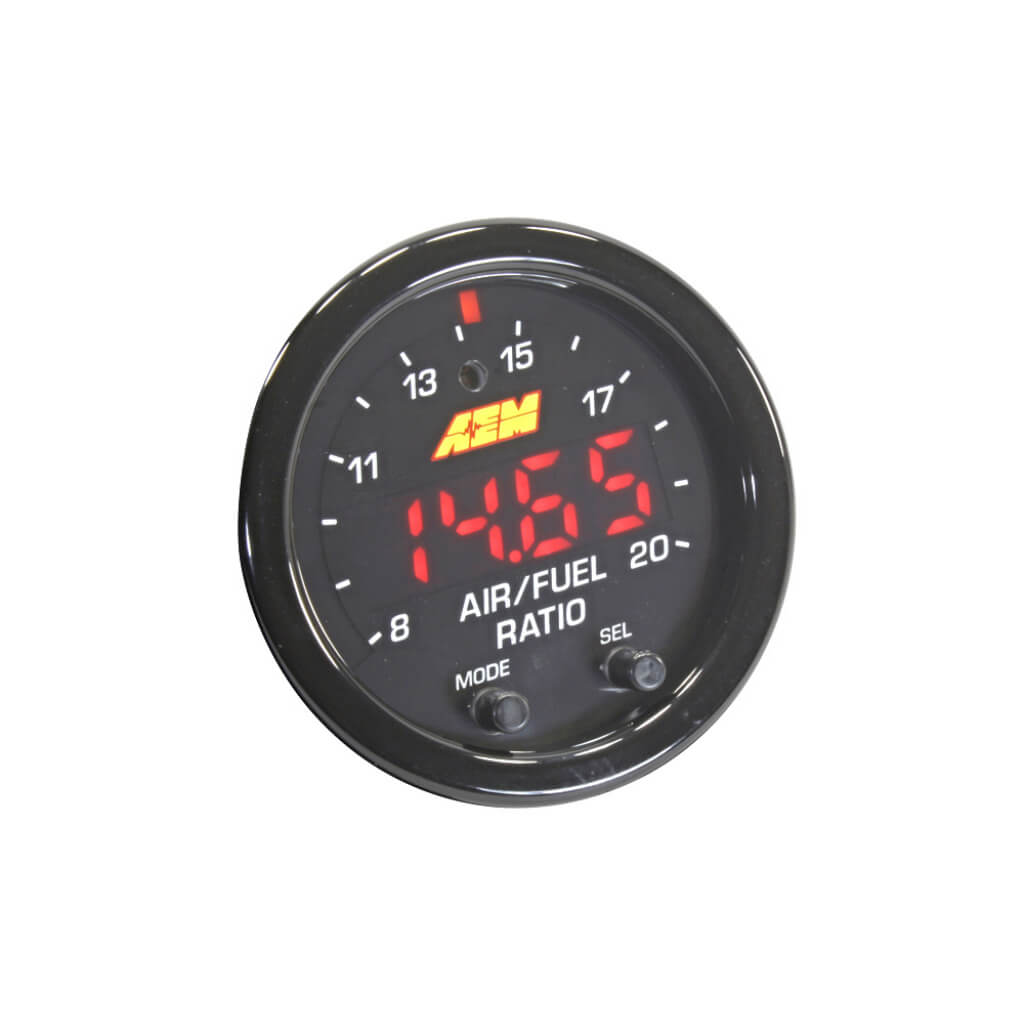

AEM 30-0300 Wideband UEGO AFR Sensor Controller Gauge X-Series

AEM's X-Series Wideband UEGO Air/Fuel Ratio Sensor Controller Gauges are built upon unique, patented 100% Digital technology (Patent 9,575,030) that makes them the fastest responding wideband air/fuel ratio controllers in independent testing.

• X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
• Patented X-Digital wideband technology (Patent 9,575,030)
• AEM co-developed the new sensor with global automotive supplier FAE, culminating in a new sensor design that has a faster response time than the Bosch 4.9 LSU and is less prone to failure in high performance vehicles
• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Can display AFR values in hundredths of %

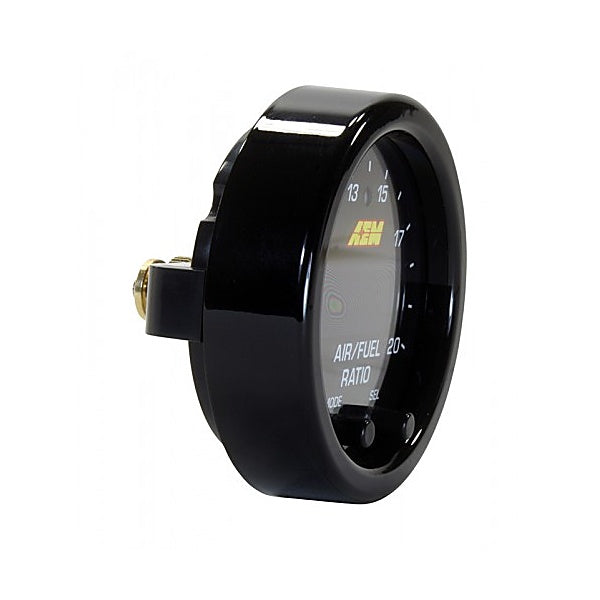

• 52mm gauge diameter and slim 0.825" gauge depth
• Gauge cup depth only .200" deep!
• Auto dimming feature
• User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
• Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
• Locking connectors
