AEM 30-2014 Air Inlet Temperature Sensor Kits
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AEM 30-2014 Air Inlet Temperature Sensor Kits
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
- Accuracy: < 1.5°C / 2.7°F
- Operating Temp: -20C to 150C / -4F to 302F
- Resistive Range (Ω): See Instructions
- Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady-state value when subjected to a step-change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
- Sensor Body Material: Brass
- Thread: 1/8" NPT
- Hex Size: 1/2"
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 10g
- Electrical Termination: Weatherproof High-Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

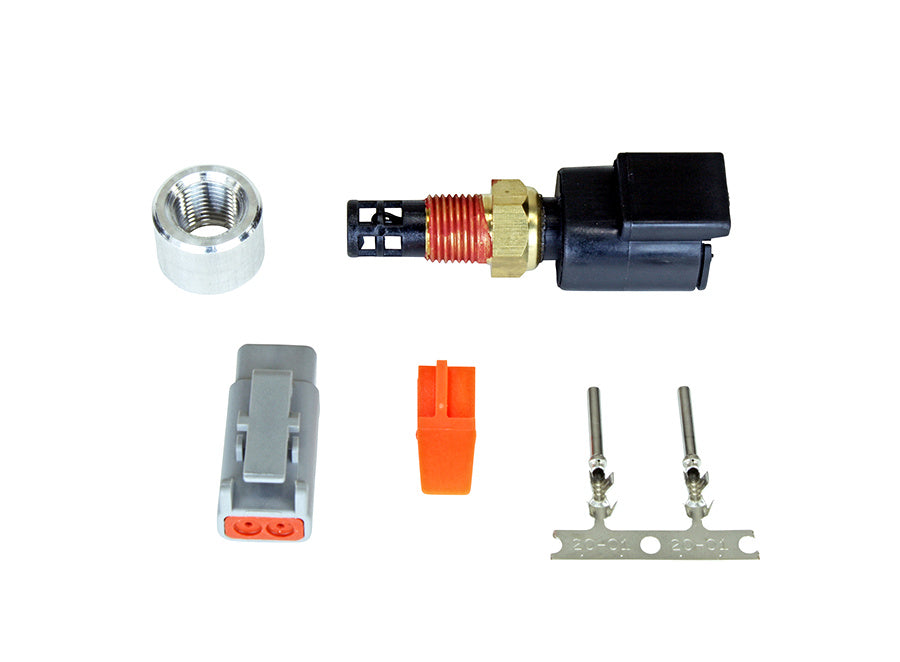

- Includes: Air Temp Sensor High-Performance DTM-Style, 1/8" NPT Aluminium Bung, Mating Connector, Pins & Wire Seals
