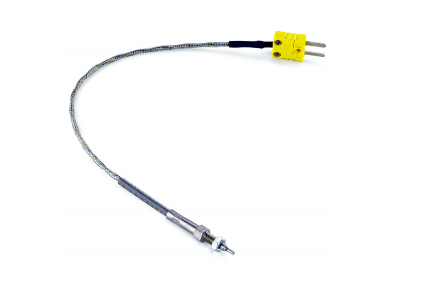

AIM 3CVGAS807 Exhaust gas thermocouple (EGT) M5 30 cm
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AiM devices can measure exhaust gas temperature using a sensor – thermocouple – placed in the
exhaust header pipe. All AiM thermocouples are K type sensor and fit car/bike/kart installations.
- Datasheet can be downloaded here
- Race Studio 3 configuration can be downloaded here
- Race Studio 2 configuration can be downloaded here
Installation notes
Place the exhaust gas temperature sensor (EGT) in the header pipe at about 150 mm (5.9 inches) from
the exhaust pipe.
To install the sensor:
- make a 5mm hole in the header pipe at about 150mm (5.9 inches) from the exhaust pipe
- weld the sensor screw in the point where you made the hole.
