0-5bar absolute pressure sensor is suitable for manifold air pressure reading (MAP), being able to read depressions up to -1 bar in relation with atmospheric pressure, additionally to absolute pressures up to 4 bars.

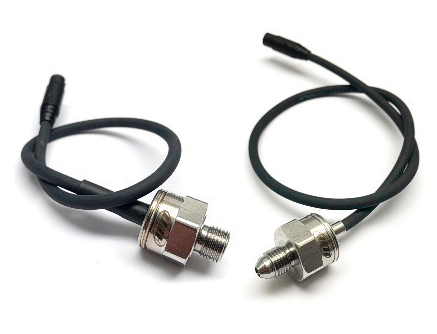

The sensor is sold with two different threads, whose part number is:
• 0-5 bar absolute M10 X05PSA00005B10AK
• 0-5 bar absolute 3/8 24 X05PSA00005B38AK
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24
