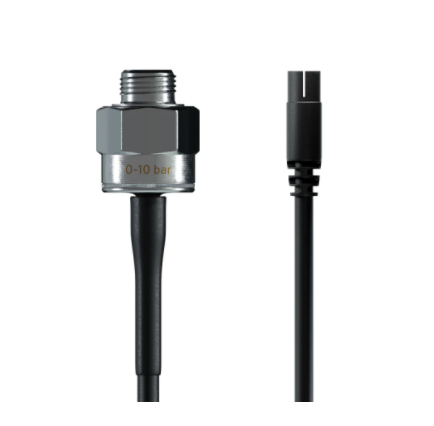

AIM X05PSA00010B10K AiM pressure sensor 0-10 bar M10 40 cm
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AIM X05PSA00010B10K AiM pressure sensor 0-10 bar M10 40 cm
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
AiM 0-10bar M10 pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.
The sensor is sold with three different threads, whose part number is:
• 0-10 bar M10 - X05PSA00010B10K
• 0-10bar 1/8 NPT - X05PSA00010B18K
• 0-10 bar 3/8 24 - X05PSA00010B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24 – 1/8 NPT
Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
