AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM Photo-0

AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM

Sale price€266,56

VAT included. Shipping calculated at checkout

AIM P/N: X05PSA00010B18K
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

AIM X05PSA00010B18K AiM pressure sensor KIT 0-10BAR 1 / 8 NPTAIM

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

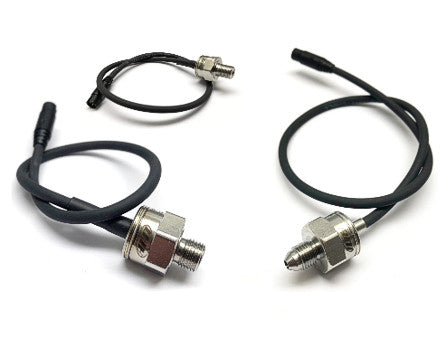

AiM 0-10bar 1/8 NPT pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.

The sensor is sold with three different threads, whose part number is:
• 0-10 bar M10 - X05PSA00010B10K
• 0-10bar 1/8 NPT  - X05PSA00010B18K
• 0-10 bar 3/8 24  - X05PSA00010B38K

Technical characteristics:
  • Supply - 8-16 V
  • Accuracy  - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
  • Consumption - < 10 mA
  • Temperature working range - from -20°C to 135°C
  • Sealing - IP66
  • Housing - 316 stainless steel
  • Weight - 30 g
  • Cable - length 400 mm
  • Thread  - M10 – 3/8 24 – 1/8 NPT

Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
