AiM 0-10bar 3/8 24 pressure sensor is suitable for oil and fuel pressure reading, being able to read pressures up to 10 bars.

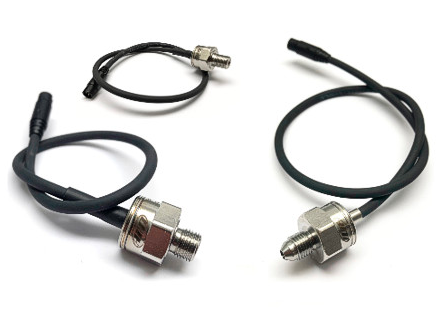

The sensor is sold with three different threads, whose part number is:
• 0-10 bar M10 - X05PSA00010B10K
• 0-10bar 1/8 NPT - X05PSA00010B18K
• 0-10 bar 3/8 24 - X05PSA00010B38K
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable - length 400 mm
- Thread - M10 – 3/8 24 – 1/8 NPT
Datasheet can be downloaded here
Race Studio3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
