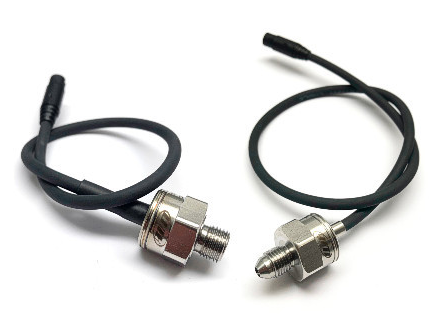

AIM X05PSA00100B38K AiM pressure sensor 0-100 bar Photo-0

AIM X05PSA00100B38K AiM pressure sensor 0-100 bar

Sale price€266,56

VAT included. Shipping calculated at checkout

AIM P/N: X05PSA00100B38K
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

AIM X05PSA00100B38K AiM pressure sensor 0-100 bar

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
AiM 0-100 bar 3/8 24 pressure sensor is suitable for brake pressure reading, being able to read pressures up to 100 bars.

The sensor is sold with two different threads, whose part number is:
 0-100 bar M10 - X05PSA00100B10K
• 0-100 bar 3/8 24 - X05PSA00100B38K

Technical characteristics:
  • Supply - 8-16 V
  • Accuracy  - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
  • Consumption - < 10 mA
  • Temperature working range - from -20°C to 135°C
  • Sealing - IP66
  • Housing - 316 stainless steel
  • Weight - 30 g
  • Cable - length 400 mm
  • Thread  - M10 – 3/8 24

Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
