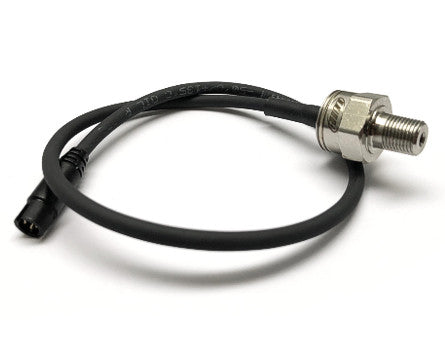

AIM X05PSA00150P18K AiM pressure sensor 0-150 psi 1 / 8 NPT 40 cm
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AIM X05PSA00150P18K AiM pressure sensor 0-150 psi 1 / 8 NPT 40 cm
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
AiM 0-150 PSI pressure sensor is suitable for oli and fuel pressure reading, being able to read pressures
up to 150 PSI.
Technical characteristics:
- Supply - 8-16 V
- Accuracy - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
- Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
- Consumption - < 10 mA
- Temperature working range - from -20°C to 135°C
- Sealing - IP66
- Housing - 316 stainless steel
- Weight - 30 g
- Cable length - 400 mm
- Thread - 1/8 NPT
