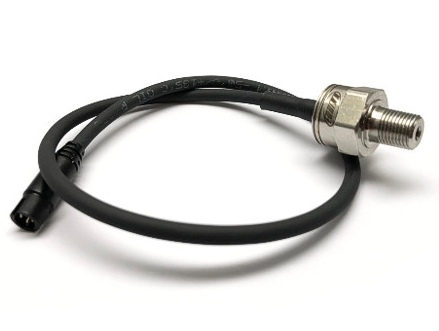

AIM X05PSA02000P18K AiM pressure sensor 0-2000 PSI Photo-0

AIM X05PSA02000P18K AiM pressure sensor 0-2000 PSI

€266,56

VAT included. Shipping calculated at checkout

AIM P/N: X05PSA02000P18K
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

AIM X05PSA02000P18K AiM pressure sensor 0-2000 PSI

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
AiM 0-2000 PSI pressure sensor is suitable for brake pressure reading, being able to read pressures up
to 2000 PSI.

Technical characteristics:
  • Supply - 8-16 V
  • Accuracy  - < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
  • Characterisation - 500 mV/ 0 bar 4500 mV/ 5 bar
  • Consumption - < 10 mA
  • Temperature working range - from -20°C to 135°C
  • Sealing - IP66
  • Housing - 316 stainless steel
  • Weight - 30 g
  • Cable length - 400 mm
  • Thread  - 1/8 NPT

Datasheet can be downloaded here
Race Studio 3 configuration can be downloaded here
Race Studio 2 configuration can be downloaded here
