AIM X47SOLO2DL01E0 Lap Timer Solo 2 DL (CAN/K-Line and External Power Cable with OBDII Connector)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AIM X47SOLO2DL01E0 Lap Timer Solo 2 DL (CAN/K-Line and External Power Cable with OBDII Connector)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
GPS Lap Timer with integrated track database and datalogger connectable to the ECU. internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer, 4 GB memory, internal rechargeable lithium battery, magnetic support. Connectable to the ECU via CAN/RS232 and OBDII-K Line, IP67.
Solo 2 DL is the upgraded version of Solo 2, it features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform and provides:
- Lap times
- Sector times
- Position and vehicle speed
- 3D acceleration and gyro
- ECU data: you can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own. CAN, K-Line or RS232 connections.
- Digital RPM from the primary of the coil (150-400V) or from a square wave (8-50V)
- CAN expansions: Lambda controller LCU1S, analog inputs ACC2, professional motorsport camera SmartyCam 3
In the box
- Solo 2 DL
- Battery charger with AC adapter

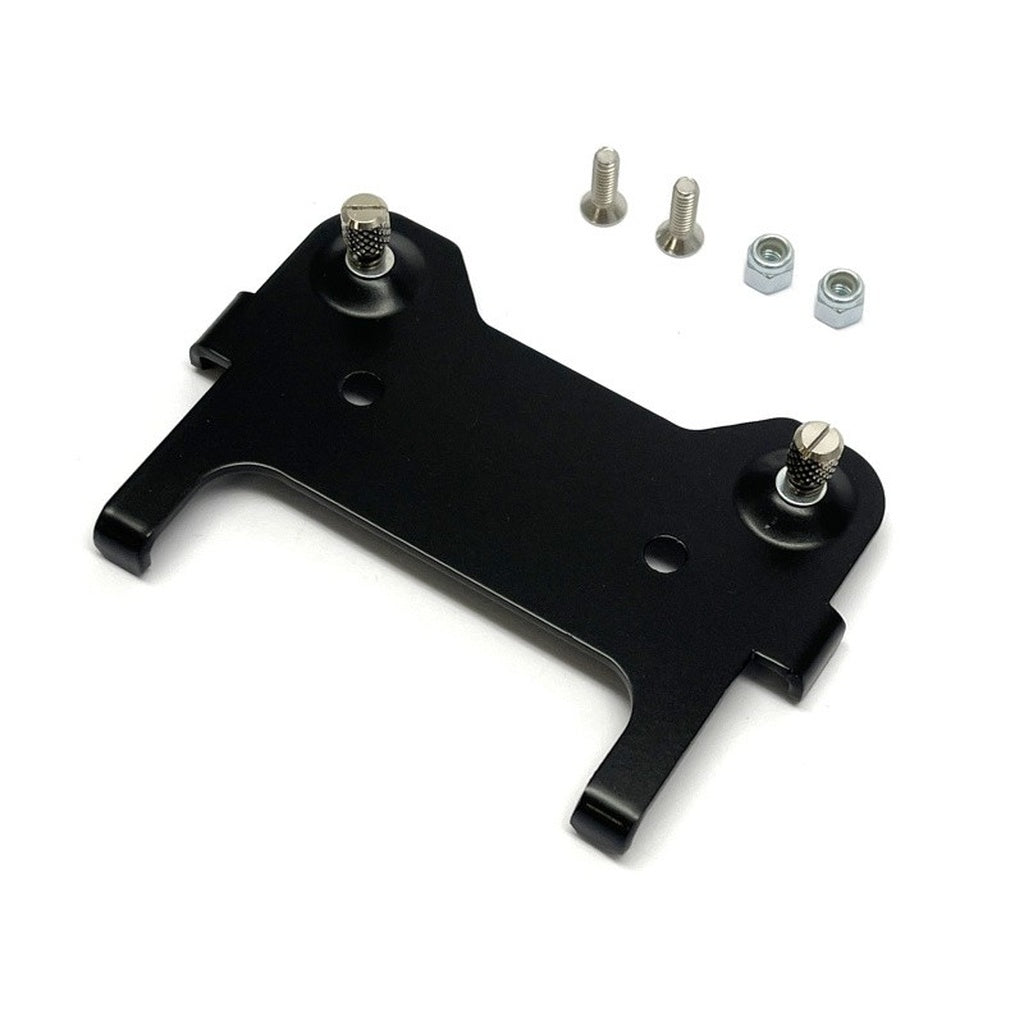

- Mounting bracket with screws
- User manual

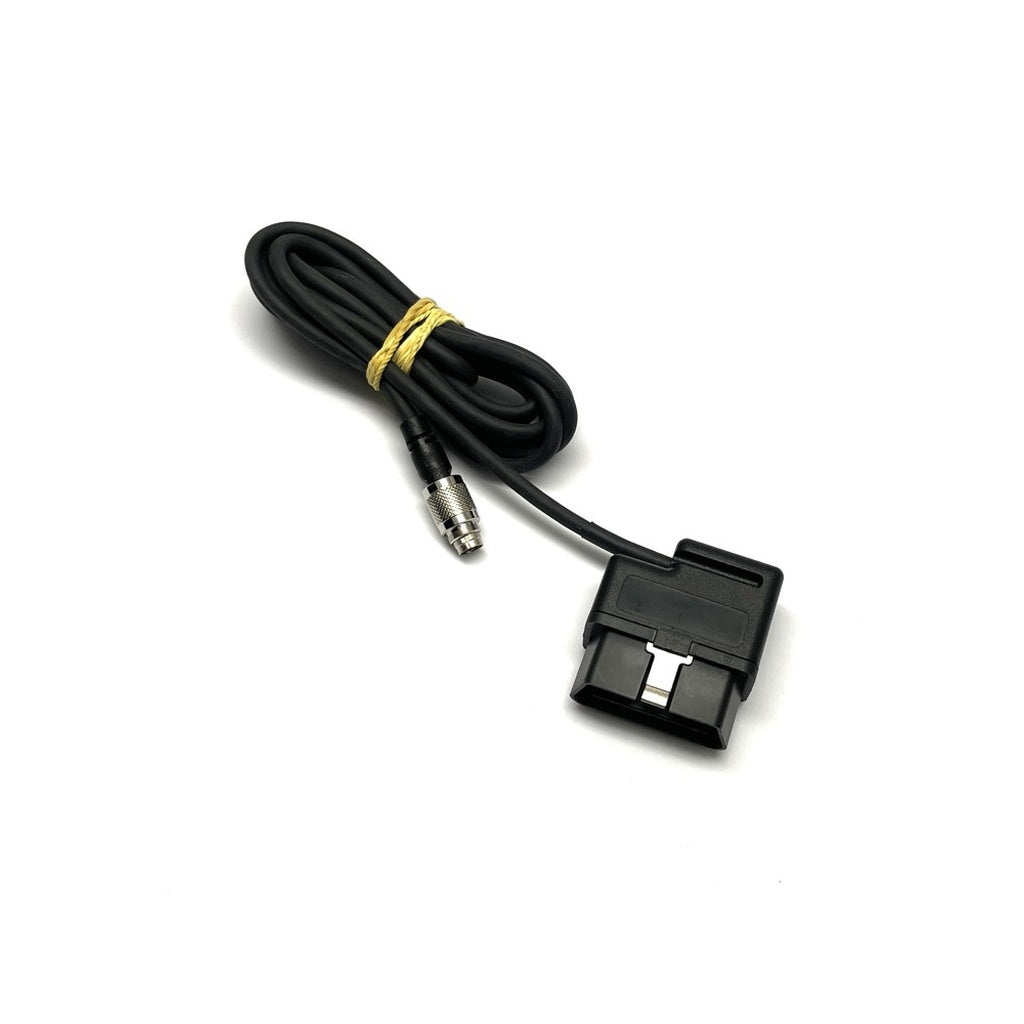

- CAN/K-Line + external power cable with OBDII connector
Charger for EUROPE
