AMS ALP.07.07.0010-3 Fuel System (Single to dual Pump Conversion) for NISSAN GT-R (R35)

Description AMS ALP.07.07.0010-3 Fuel System (Single to dual Pump Conversion) for NISSAN GT-R (R35)

The Omega Brushless Fuel Pump System was developed to address common fueling issues experienced by many GT-R owners. Previous fuel pump solutions for the GT-R often required multiple pumps, resulting in bulky, difficult installations and excessive noise, with a tendency toward fuel starvation due to pressure loss from overheating. After more than two years of research and testing, this system offers a comprehensive fueling solution for the R35 GT-R.

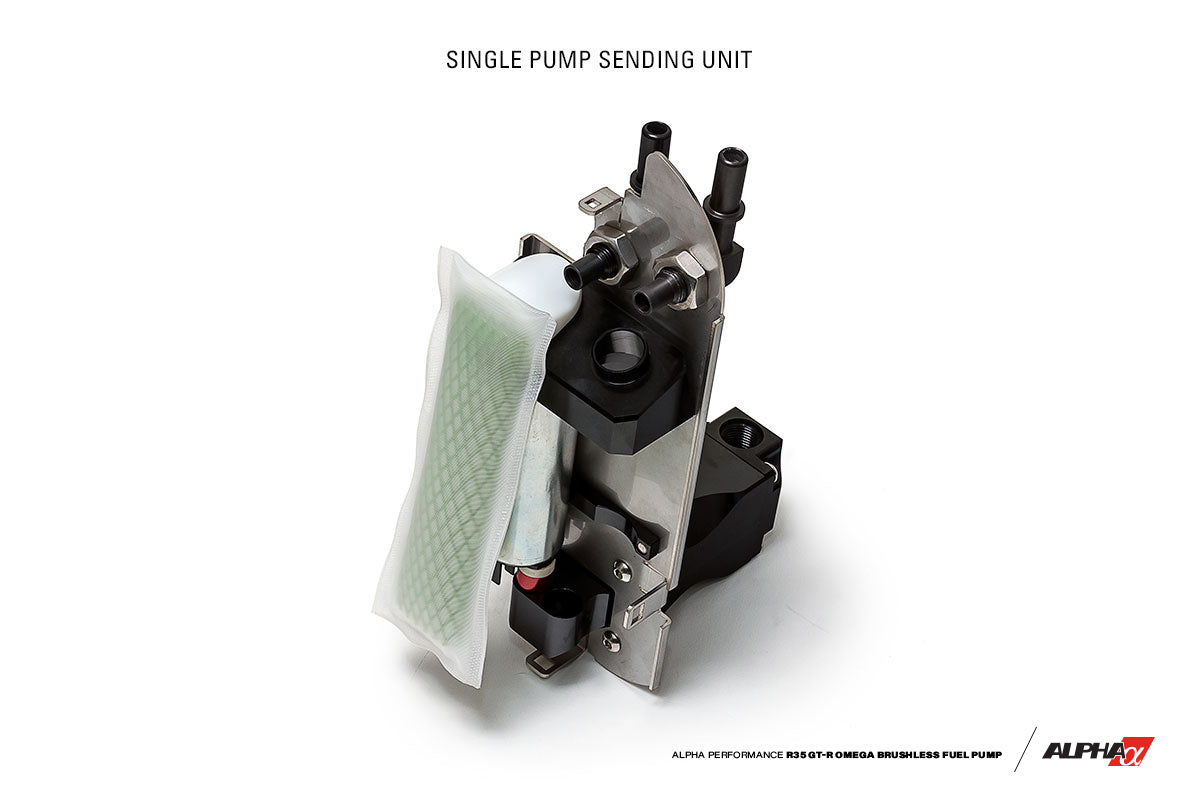

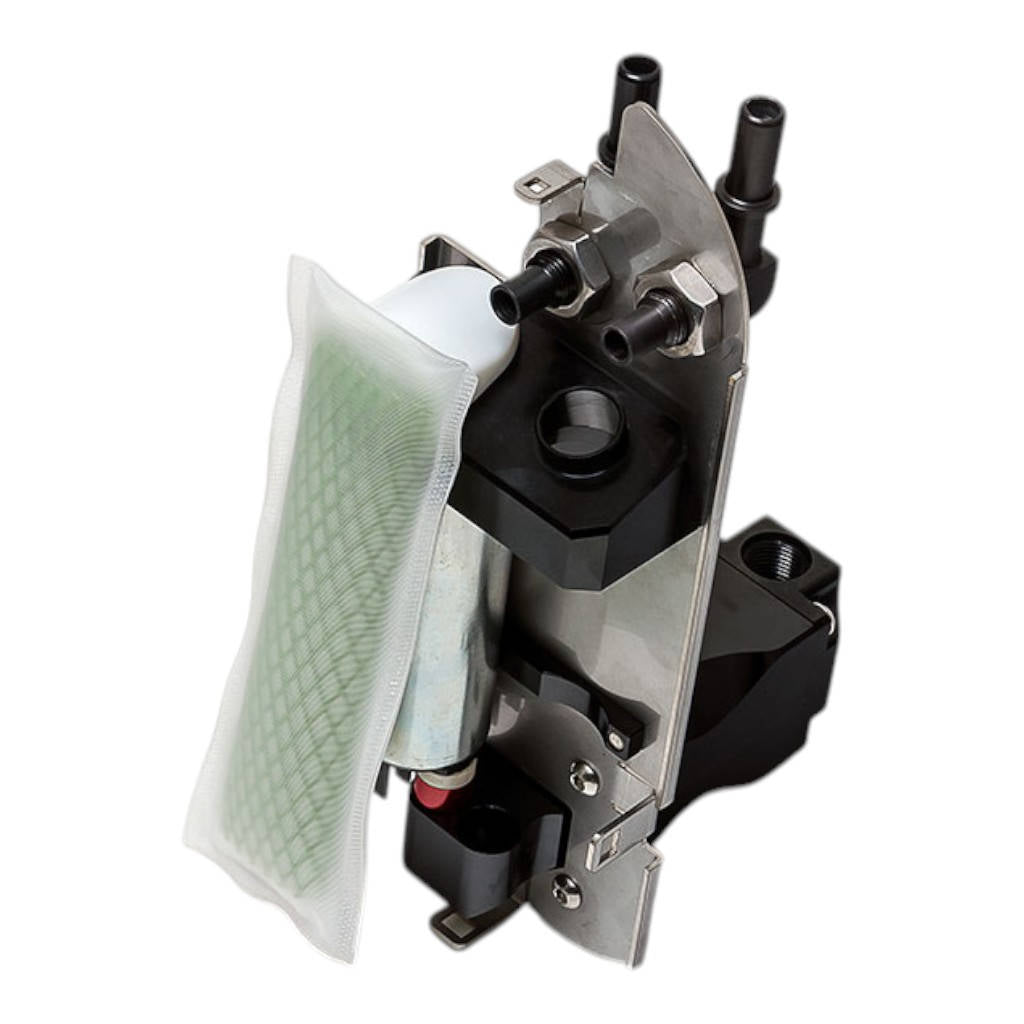

The system is available in single (up to 1200whp) or dual (over 1200whp) brushless pump configurations. Brushless motors generate less heat and wear compared to brushed motors, as there is no friction from brushes. The pump controller adjusts output as needed, resulting in significantly reduced fuel temperatures. OE quality brushless motors and automotive-grade controllers are used throughout the system.

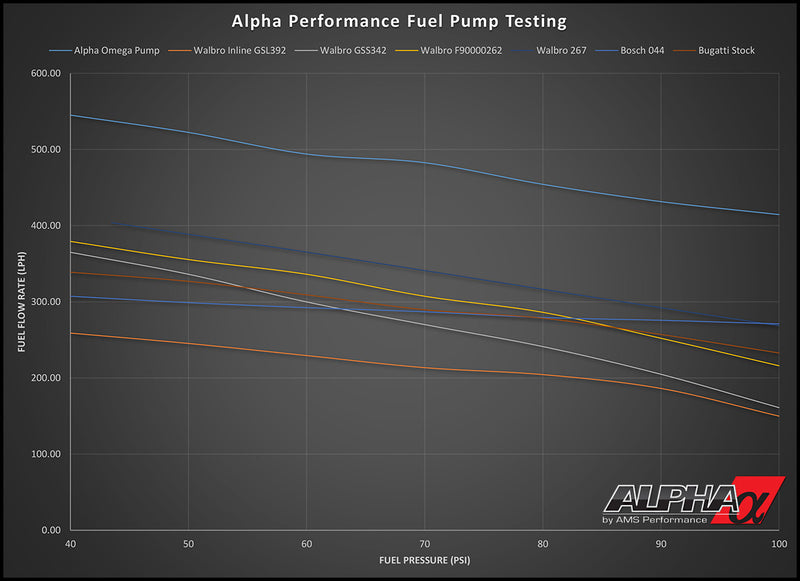

Overheating of fuel inside the tank is a known problem for the R35 GT-R, especially with multiple brushed pumps. The Omega system uses a screw style pump mechanism, which maintains high fuel output even at elevated temperatures and is less affected by pressure drops than traditional vane or impeller style pumps. The compact design fits neatly in the stock tank location, retaining all factory fuel system functions and allowing for simple installation. The user-friendly controller interface enables custom tuning of fuel output to match specific requirements.

• Brushless motor design reduces heat and wear for improved reliability
• Screw style pump mechanism maintains consistent fuel output at high temperatures
• Compact system fits in the stock tank and retains factory functionality
• User interface allows custom tuning and easy setup

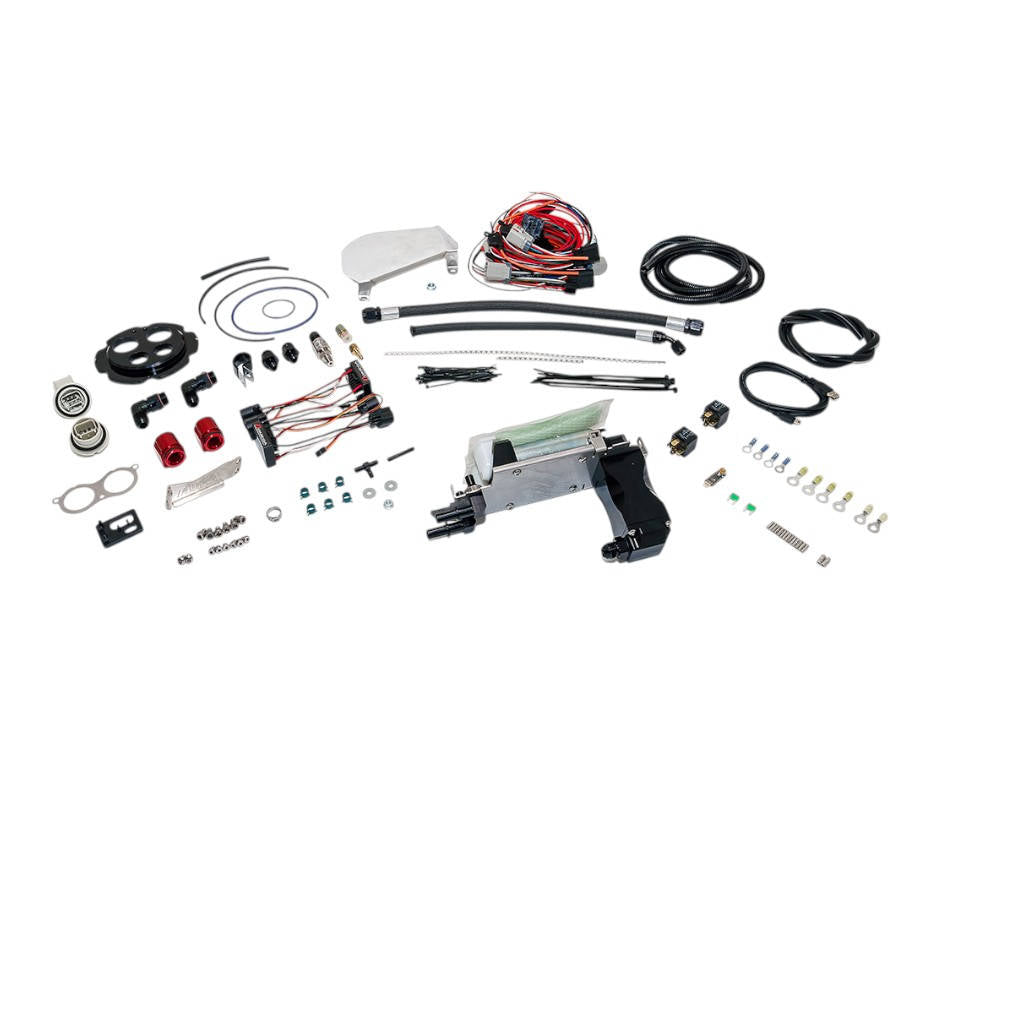

Kit comes with:

• Billet fuel pump filter housing with pump installed and assembled
• Wire harnesses
• 3.5 Bar MAP sensor
• Fuel pump controller
• USB interface
• USB thumb drive with software and detailed instructions
• Inside tank hoses
• Replaceable Fuel Filters: Pre-pump filter socks (Walbro 125-118) and post-pump 6 micron filter (Fuelab 71804)
• All necessary hardware and fittings to install

Vehicle Compatibility:

• 2009+ Nissan R35 GT-R (USDM, JDM, European Models, LHD & RHD)
