AMS ALP.07.14.0200-1 Turbo Kit OMEGA 9 for NISSAN G-TR (R35) 2009-2019

Description AMS ALP.07.14.0200-1 Turbo Kit OMEGA 9 for NISSAN G-TR (R35) 2009-2019

Since 2009, the standard practice for stock-style turbo upgrades on the R35 Nissan GTR has been to use the OEM “turbofolds” and machine the housings to fit larger aftermarket turbo CHRAs. However, the factory manifold is designed for compactness and is only optimized for OEM power and boost levels. When modified, its limitations become apparent.

Many current stock-style options on the market have poor boost control or excessive boost creep, sometimes requiring high octane race fuel at all times. With the introduction of the 2020 GT-R, the AMS Snailworks Engineering Team optimized stock location turbo kit offerings by creating their own two-piece style manifolds and turbine housings, eliminating expensive core charges and machining lead times.

The AMS Performance ALPHA line of turbo kits has set the benchmark in GTR performance. The new OMEGA Turbo Kit line, named after the ALPHA OMEGA GTR, aims to deliver the best performing and most reliable street car turbo kits without compromise.

Note: Fits all USDM, JDM, Gulf, and European models (LHD and RHD).

Note: 2020+ model year vehicles will reuse their existing OEM exhaust manifolds. 2009-2019 model year vehicles must use the full AMS turbine housing and manifold system.

Note: Not compatible with OEM stock intakes. Fitment with other brand aftermarket 3″ intakes is not guaranteed. AMS carbon intakes are required and available separately.

Note: Compatible with OEM LICP; upgraded AMS 3″ lower intercooler piping is available separately.

Note: Horsepower and torque numbers, quarter mile times, 0-60 mph, 60-130 mph, and other recorded times are approximate and can vary significantly depending on numerous factors such as ambient temperature, elevation, tire selection, road surface material, fuel octane and quality, and vehicle weight. The advertised numbers are based on optimal conditions and proper supporting modifications, but results may vary.

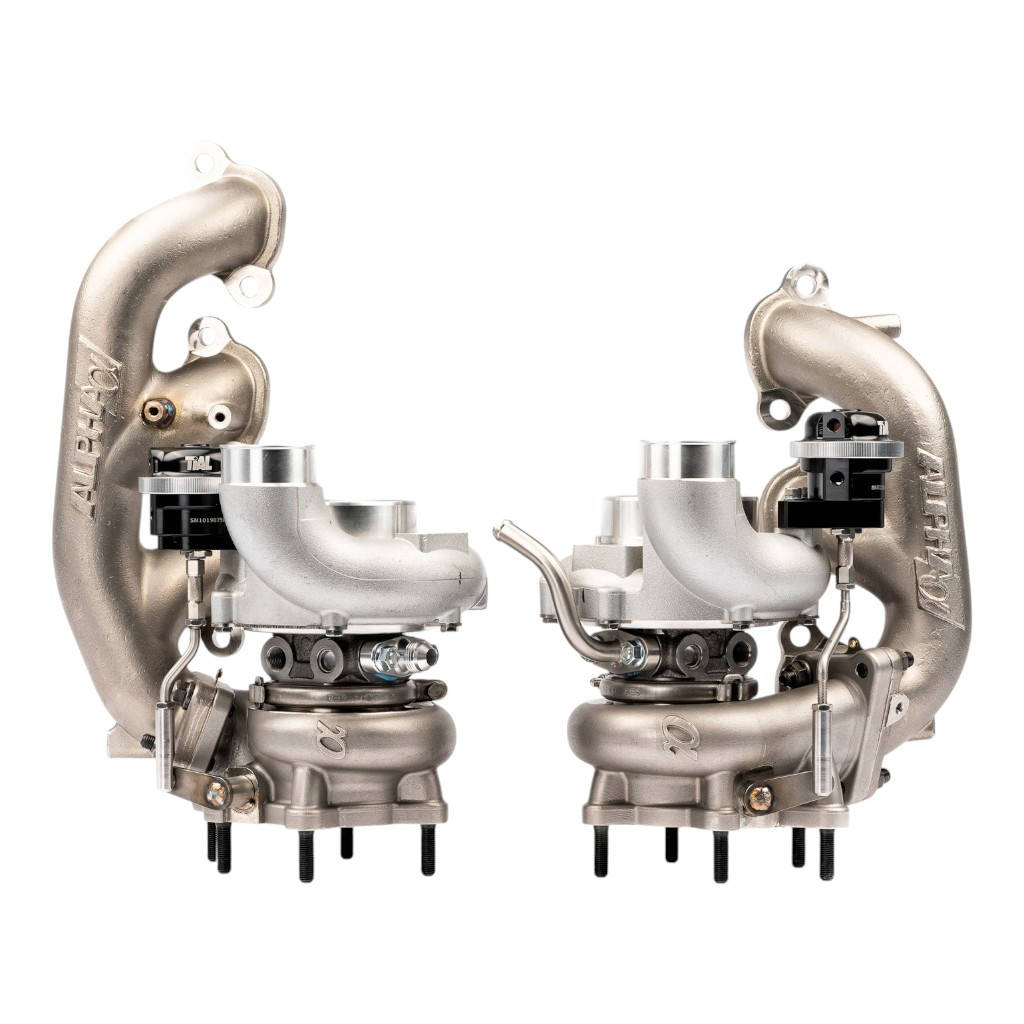

• First and only 2020-style two-piece manifold design on the market
• Utilizes billet wheel TD06 based journal bearing turbo CHRAs with 49mm inducers
• Optimized wastegate port design for improved boost control and reduced boost creep
• OMEGA 9 is capable of low 9 second quarter mile times and 900+ WHP*

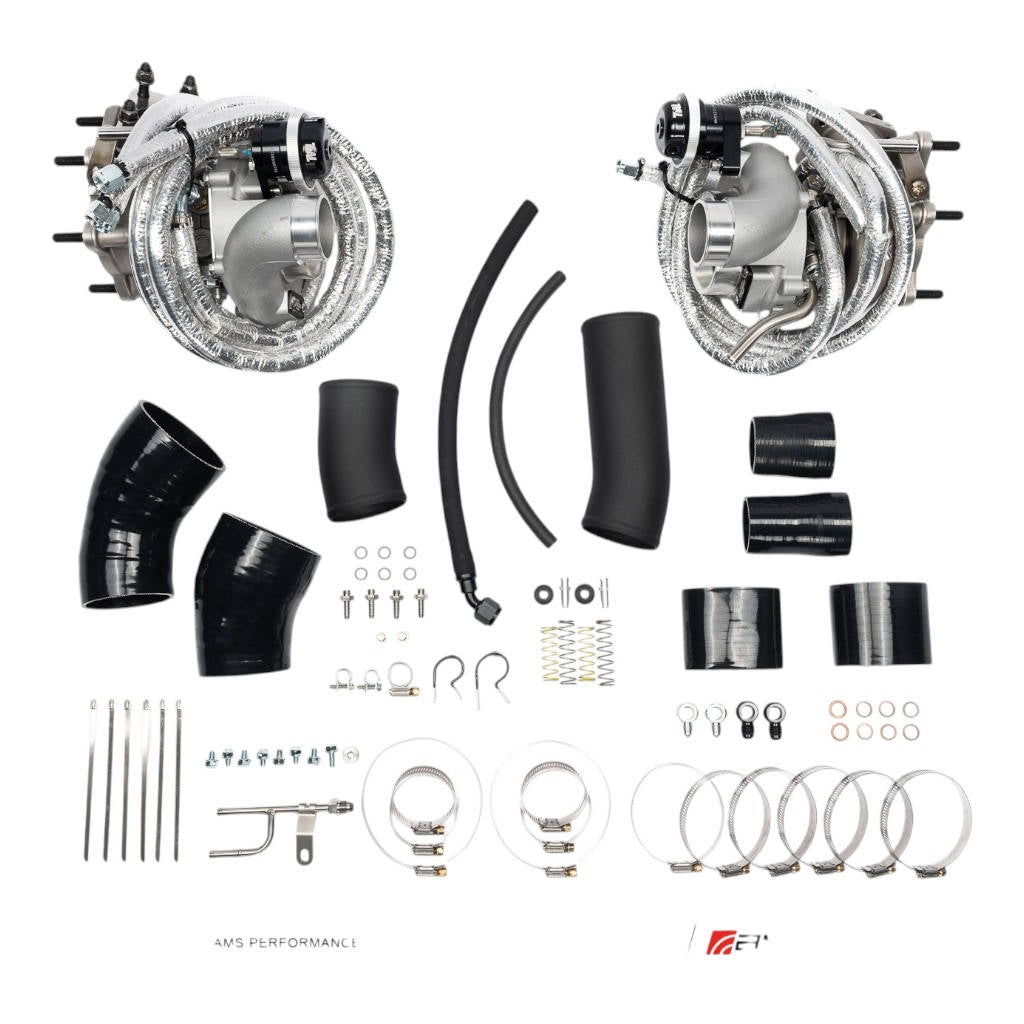

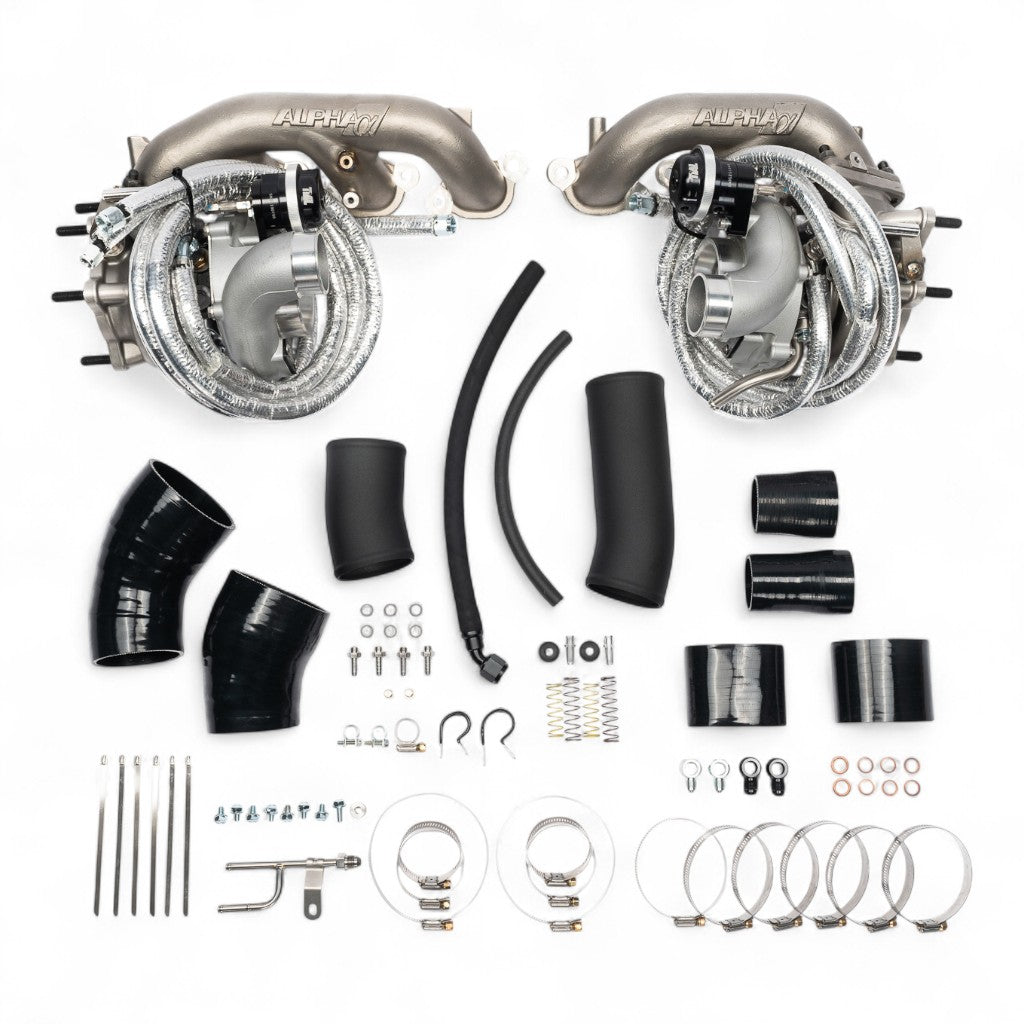

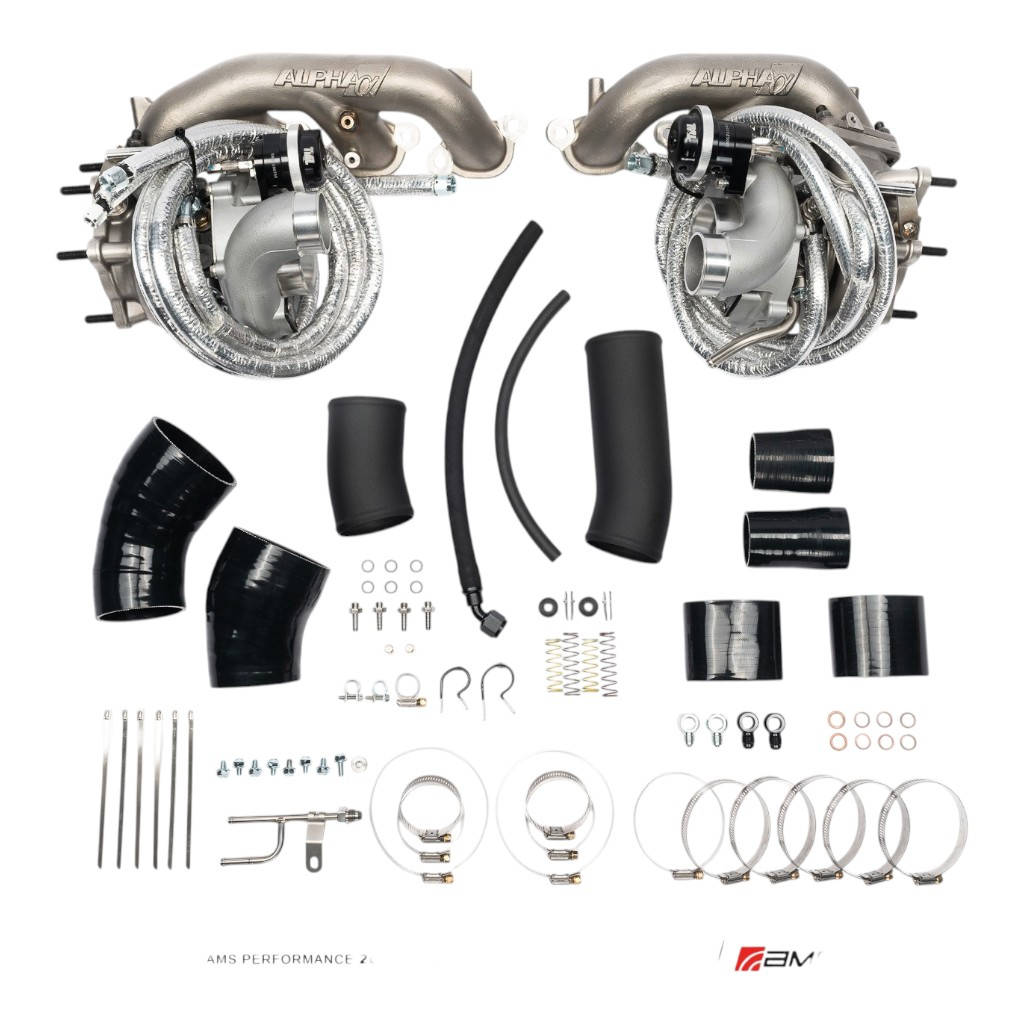

Kit comes with:

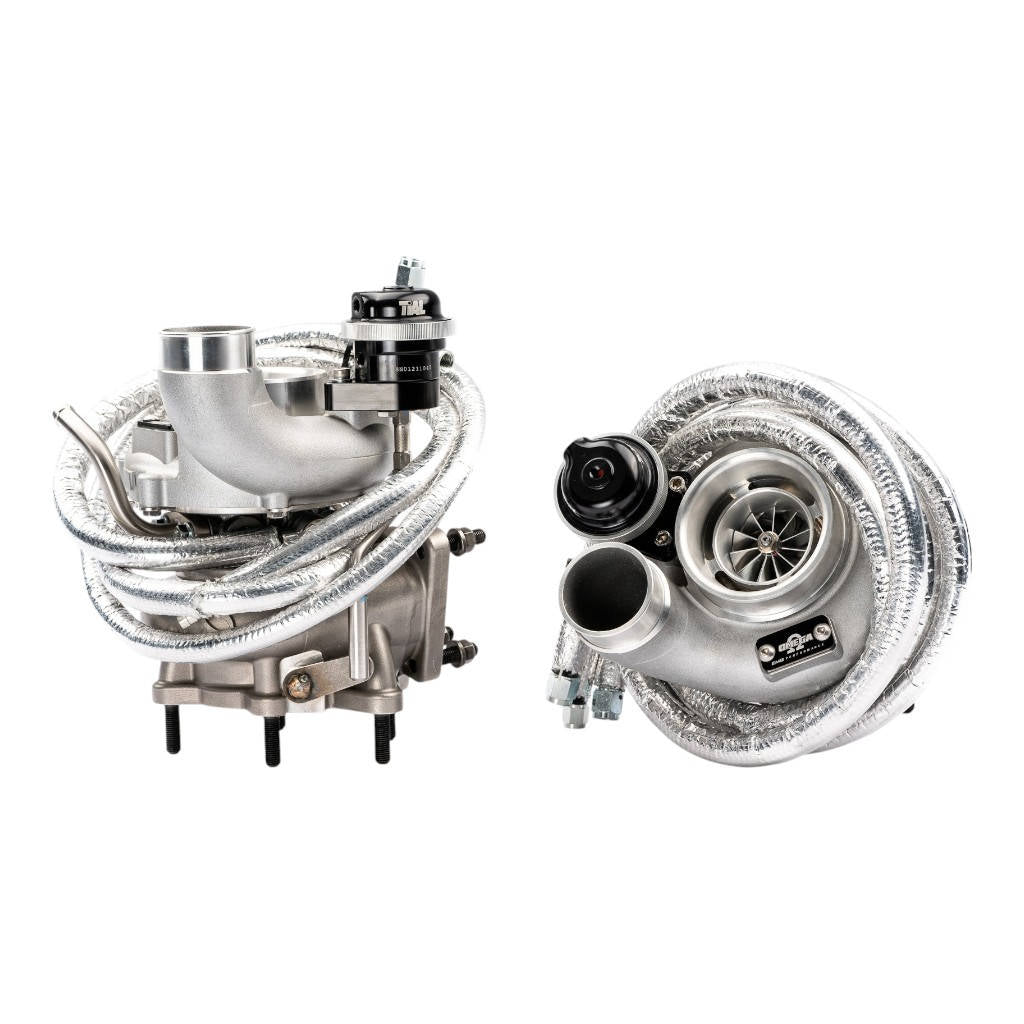

• TD06 based journal bearing CHRAs

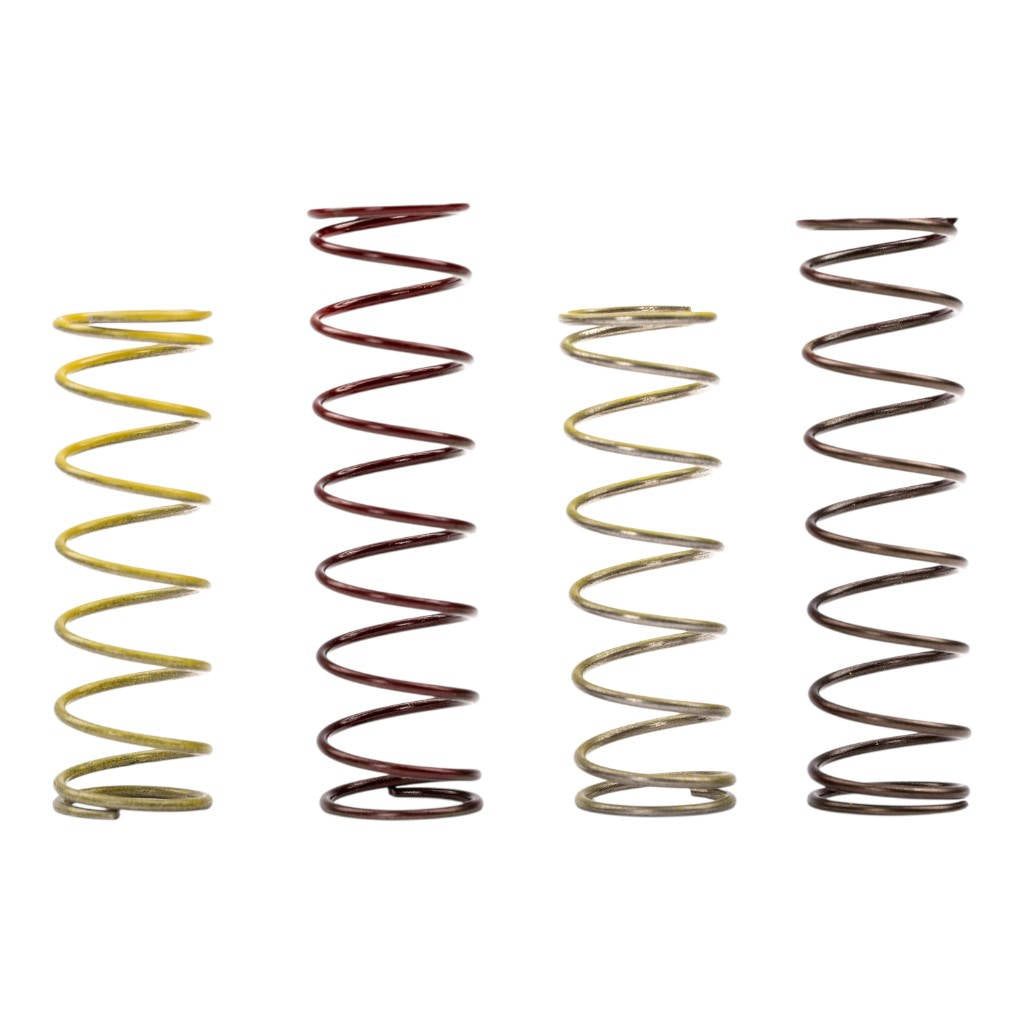

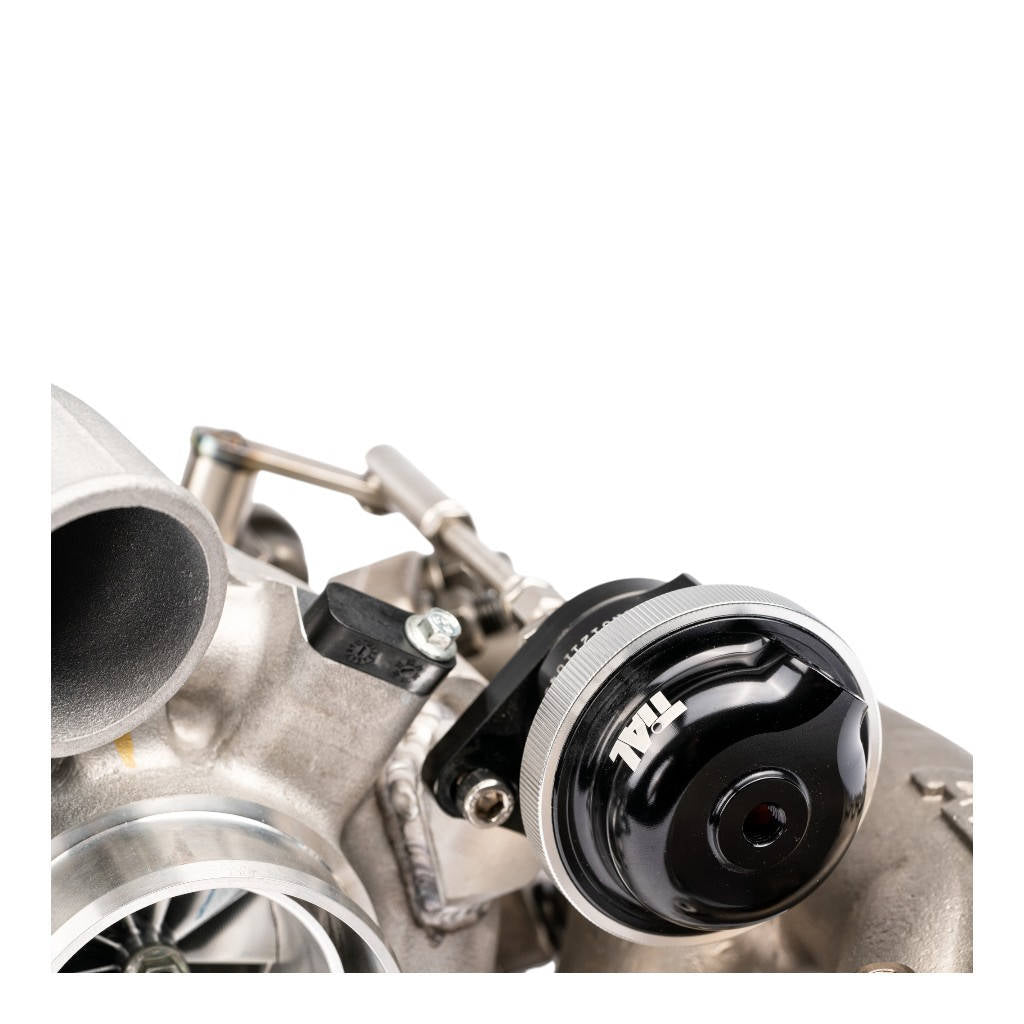

• TiAL MVI 2.5D wastegates
• AMS cast compressor covers with 94mm inlets and 54mm outlets

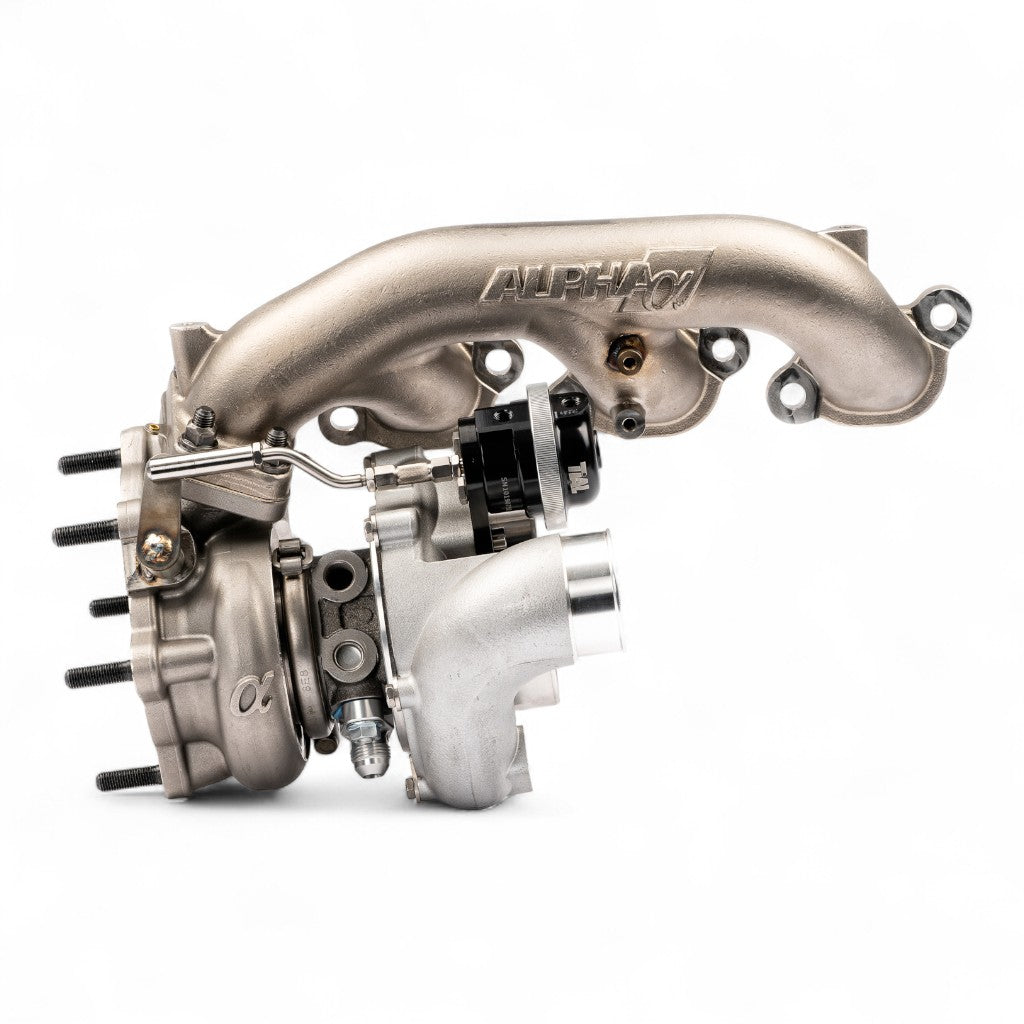

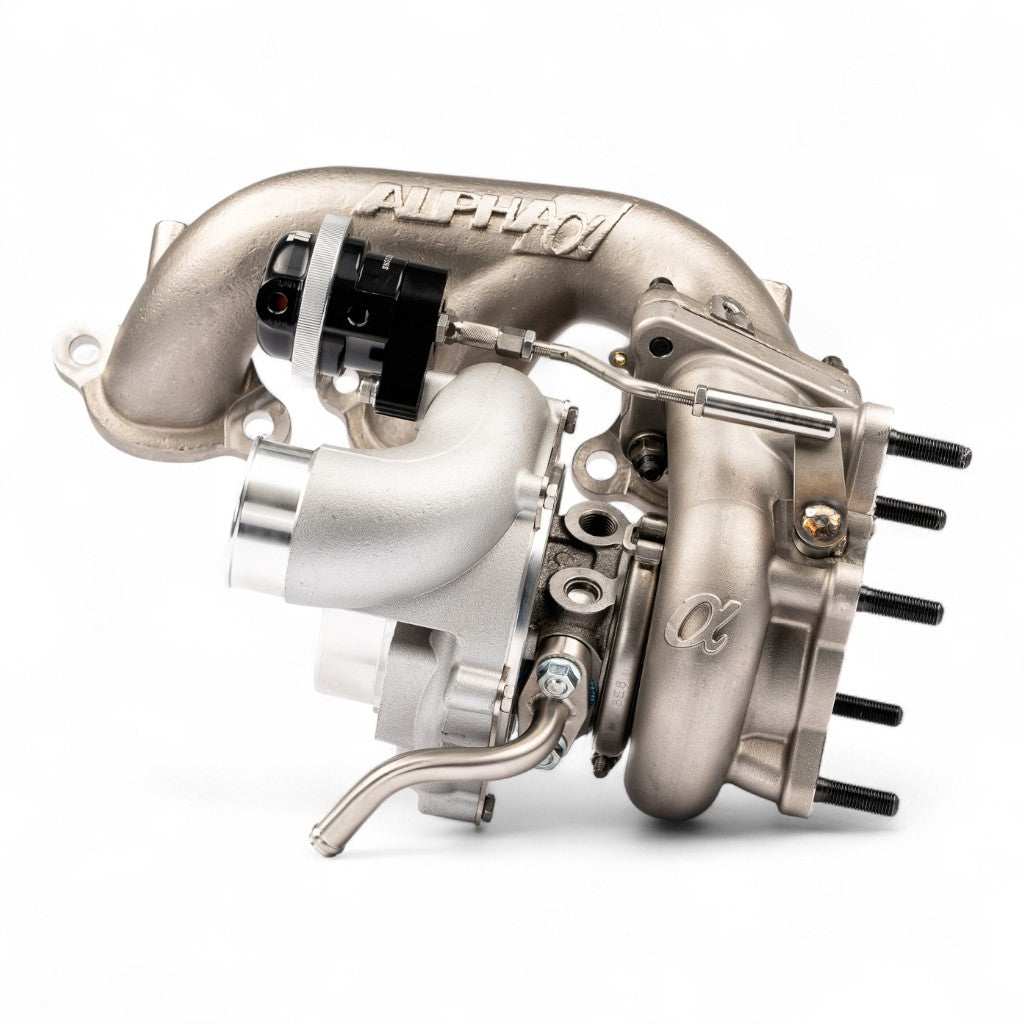

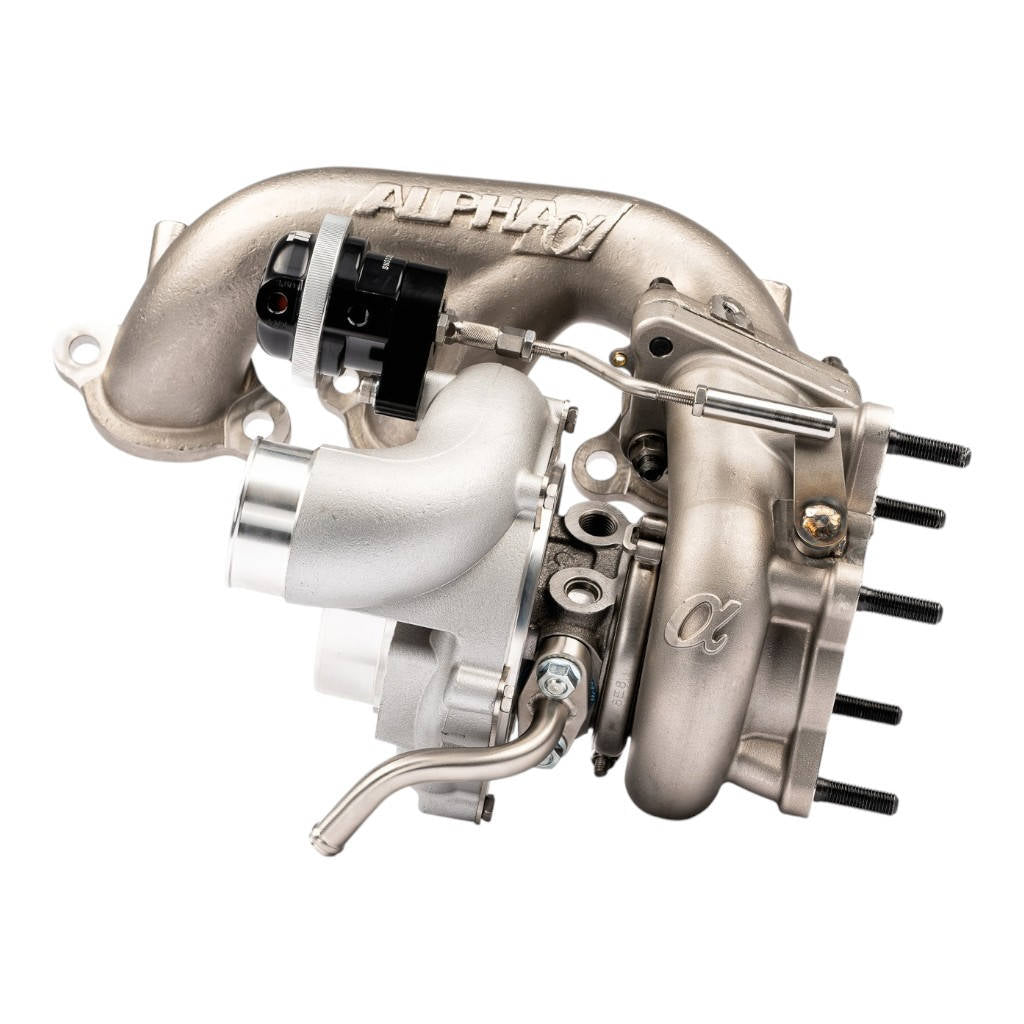

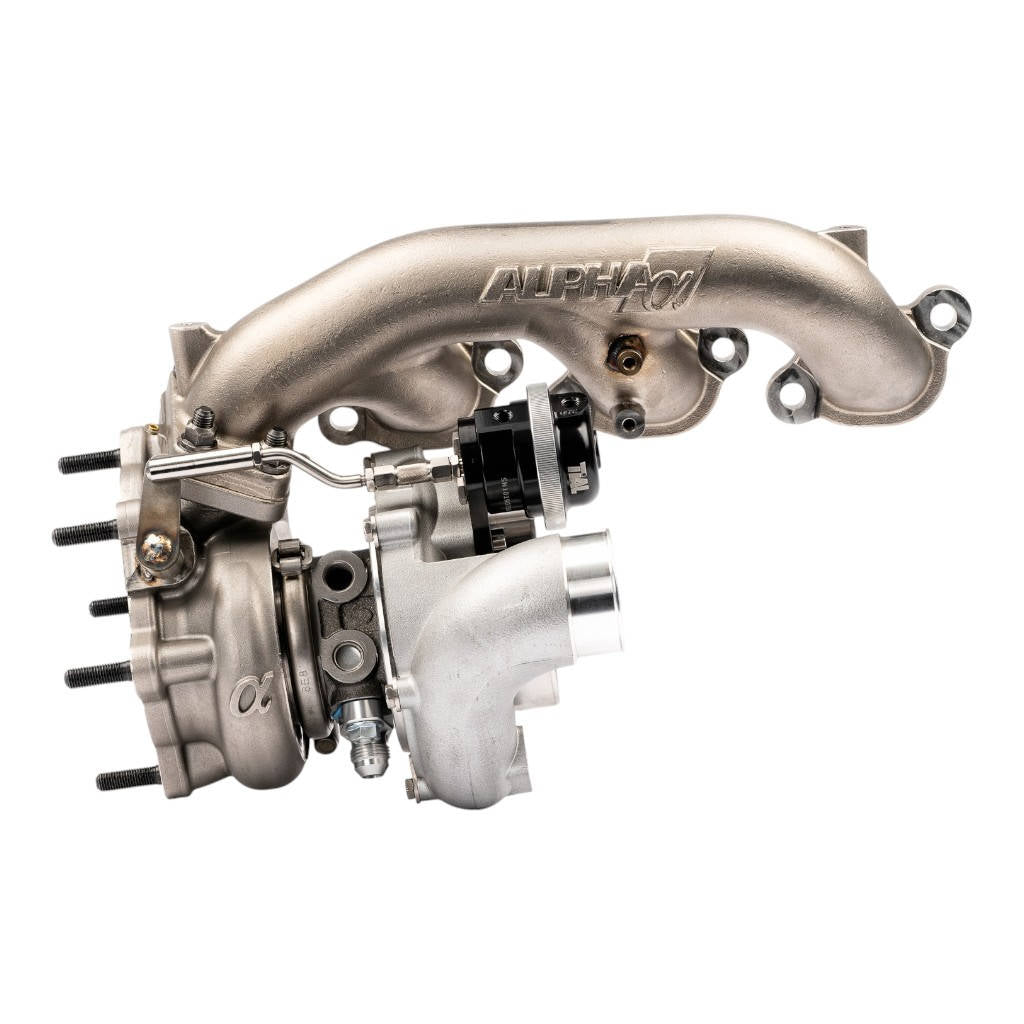

• AMS cast exhaust manifolds (2020-style 2 piece design) (optional)
• AMS cast turbine housings with optimized wastegate ports
• AMS 94mm to 3″ inlet tubes to mate to AMS 3″ carbon fiber intakes (intakes available separately)
• AMS couplers to connect to OEM lower intercooler pipes (AMS 3″ LICP kit available separately)

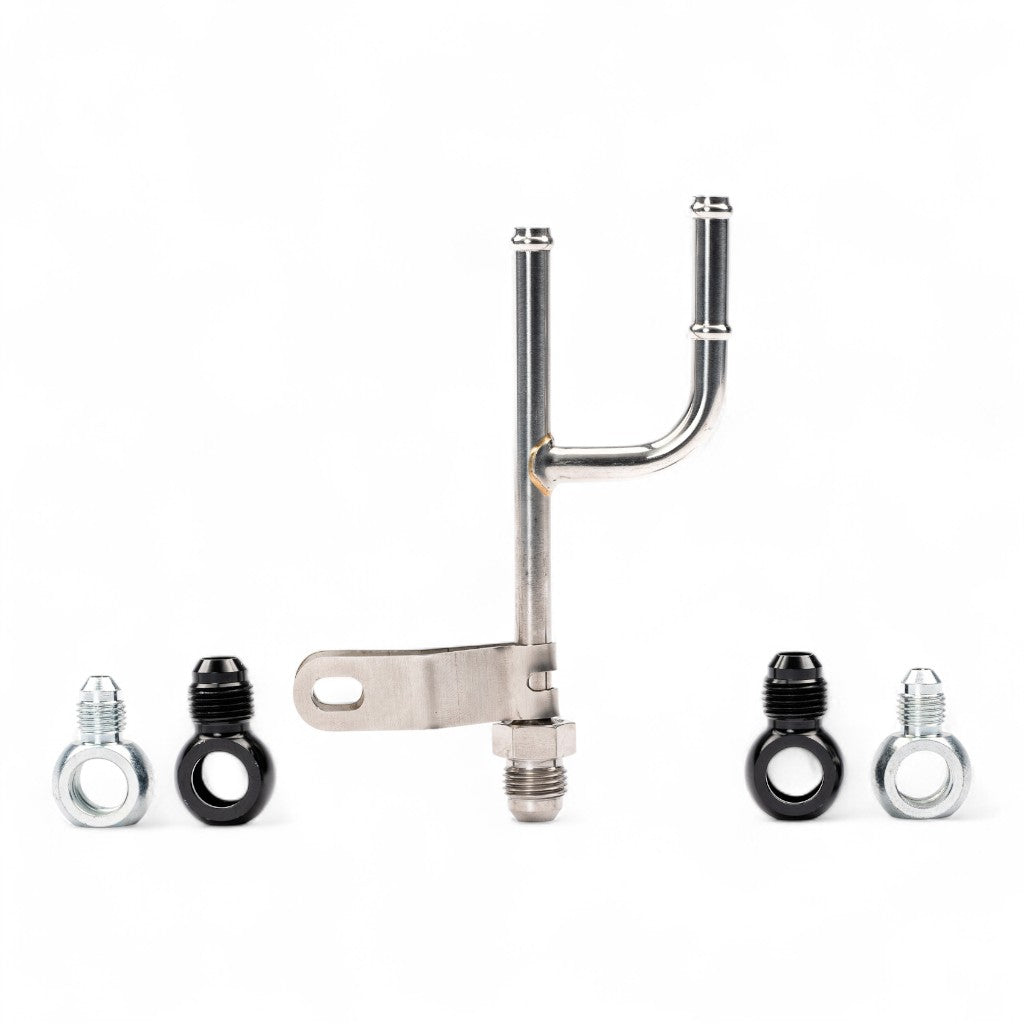

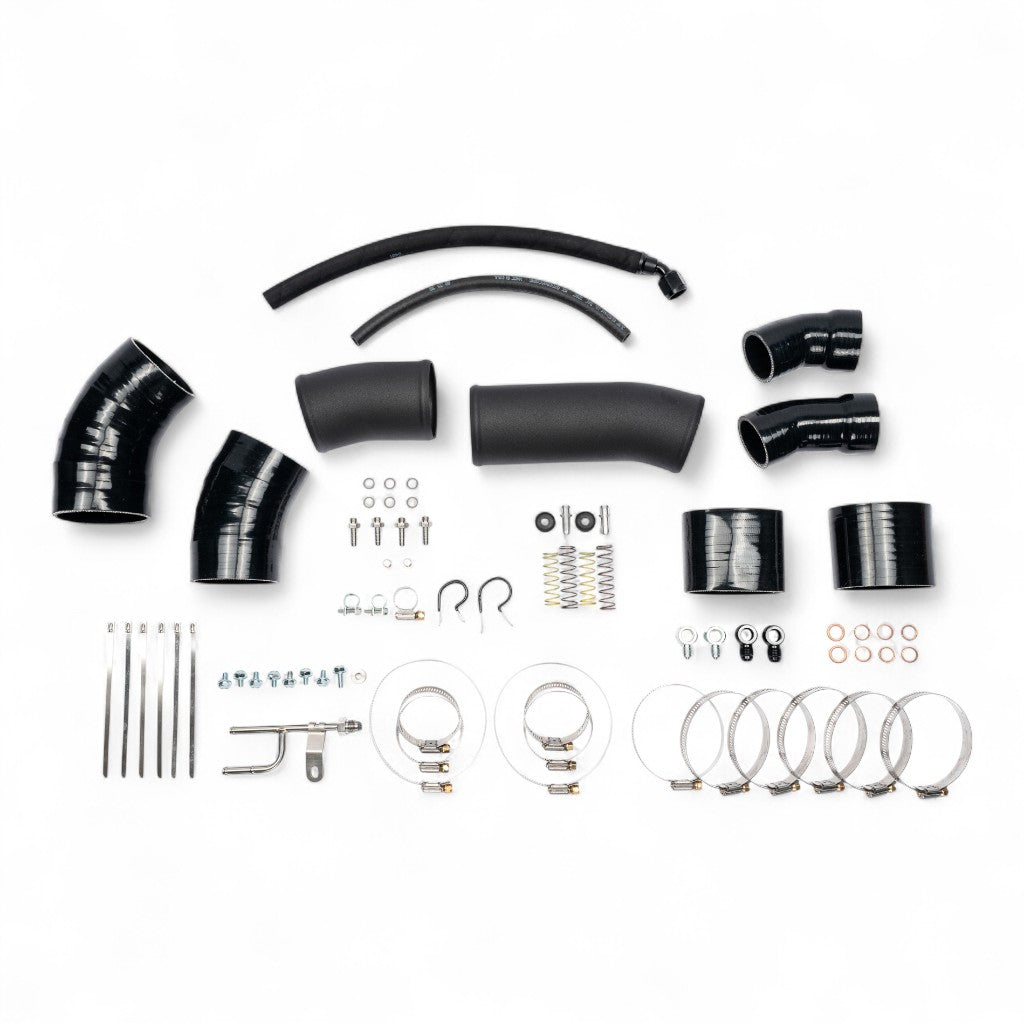

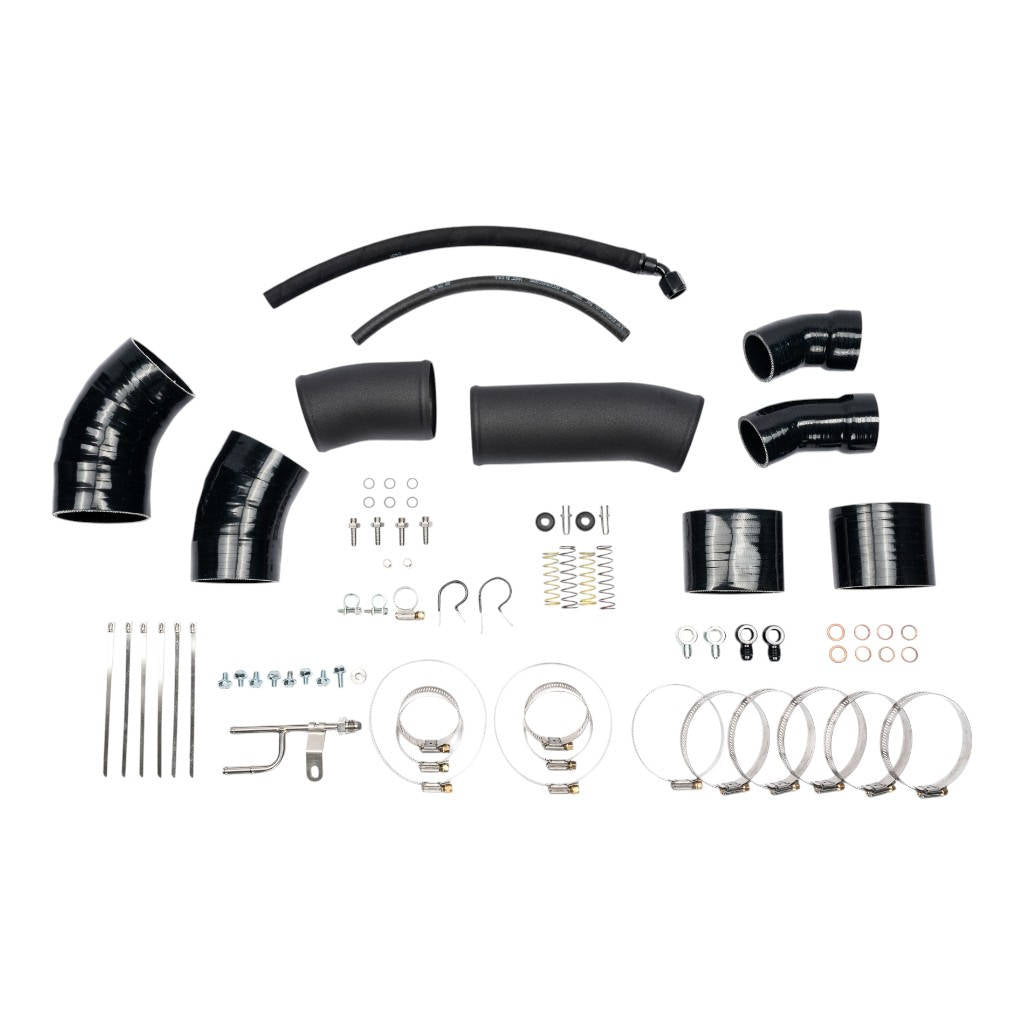

• AMS ancillary components, including all hardware, lines, couplers, and fittings

Vehicle Compatibility:

• 2009-2011 (CBA) Nissan R35 GT-R
• 2012-2016 (DBA) Nissan R35 GT-R
• 2017-2019 (Facelift DBA / “EBA”) Nissan R35 GT-R
• 2020-Current (4BA) Nissan R35 GT-R
