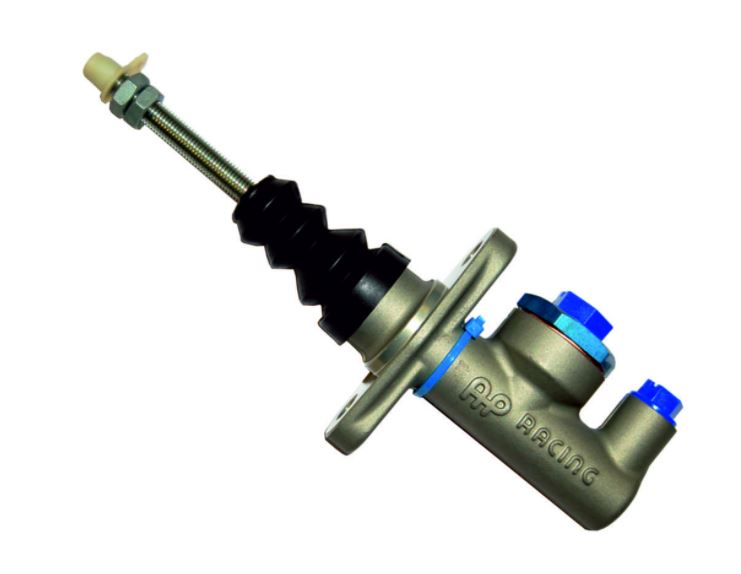

AP RACING CP2623-88PRT160 MCYL-14.00xALU-REMTUF
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AP RACING CP2623-88PRT160 MCYL-14.00xALU-REMTUF
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
Features:
- Forged Aluminium Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.
- Weight 0.31Kg (0.7lbs)
- Full Stroke 25.4mm (1.00")
- Travel To Cut-Off Short - 0.68 to 1.09mm (0.27 to 0.43")
- Inlet Hydraulic Thread 7/16" x 20UNF
- Outlet Hydraulic Thread 3/8" x 24UNF
- Push Rod Threads Available - PRM = M8 x 1.25mm- PRT = 5/16" UNF
- Push Rod Length from Mounting Flange PRM065 - 65mm (2.55")
- PRM088 - 88mm (3.46")
- PRM/PRT115 - 115mm (4.53")
- PRM/PRT160 - 160mm (6.30")
Bore Sizes Available
Part Numbers
14mm
CP2623-88PRM115 / CP2623-88PRM160
CP2623-88PRT115 / CP2623-88PRT160
15mm
CP2623-89PRM088 / CP2623-89PRM115 /CP2623-89PRM160
CP2623-89PRT115 / CP2623-89PRT160
15.9mm (.625") 5/8"
CP2623-90PRM065 / CP2623-90PRM088
CP2623-90PRM115 / CP2623-90PRM160
CP2623-90PRT115 / CP2623-90PRT160
16.8mm
CP2623-905PRM088 / CP2623-905PRM115 /CP2623-905PRM160
CP2623-905PRT115 / CP2623-905PRT160
17.8mm (.70")
CP2623-91PRM065 / CP2623-91PRM088
CP2623-91PRM115 / CP2623-91PRM160
CP2623-91PRT115 / CP2623-91PRT160
19.1mm (.75") 3/4"
CP2623-92PRM065 / CP2623-92PRM088
CP2623-92PRM115 / CP2623-92PRM160
CP2623-92PRT115 / CP2623-92PRT160
20.6mm (.812") 13/16"
CP2623-93PRM065 / CP2623-93PRM088
CP2623-93PRM115 / CP2623-93PRM160
CP2623-93PRT115 / CP2623-93PRT160
22.2mm (.875") 7/8"
CP2623-94PRM065 / CP2623-94PRM088
CP2623-94PRM115 / CP2623-94PRM160
CP2623-94PRT115 / CP2623-94PRT160
23.8mm (.937") 15/16"
CP2623-95PRM065 / CP2623-95PRM088
CP2623-95PRM115 / CP2623-95PRM160
CP2623-95PRT115 / CP2623-95PRT160
25.4mm (1.00")
CP2623-96PRM065 / CP2623-96PRM088
CP2623-96PRM115 / CP2623-96PRM160
CP2623-96PRT115 / CP2623-96PRT160
