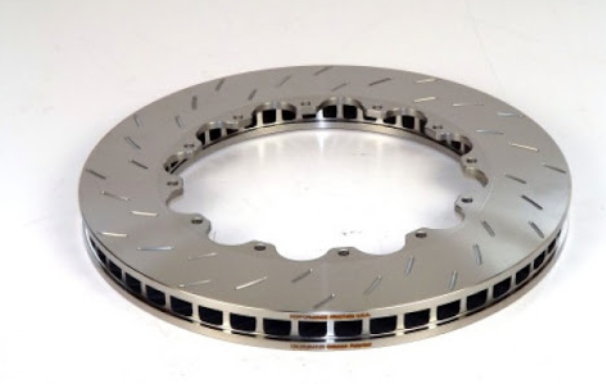

AP RACING CP3580-394RA VD-295x32R12Fx177,8D51
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
AP RACING CP3580-394RA VD-295x32R12Fx177,8D51
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
| ‘A’ Outside Diameter - mm | 295 |
| ‘B’ Thickness - mm | 32 |
| ‘M’ P.C.D. Diameter - mm | 177.8 |
| Mounting Hole Number | 12 |
| Mounting Fixing Type | "Floating" |
| Mounting Bobbin Part Number | CP2494-504MP |
| ‘C’ Eye Diameter - mm | 193.4 |
| ‘D’ Inside Flange Diameter - mm | 153 |
| ‘H’ Mtg Flange Thickness - mm | 6.3 |
| Max Pad Depth | D51 |
| Number of Vanes | 24 |
| Air Gap - mm | 15.5 |
| Weight - Kg | 5.8 |
| Face Types Available | D / RA |
-
Click on the link to download the relevant drawing.
