AP RACING CP5219-16S0 Brake Caliper ACAL(GK)RHTx25,4-CP3215
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP5219-16S0 Brake Caliper ACAL(GK)RHTx25,4-CP3215
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany

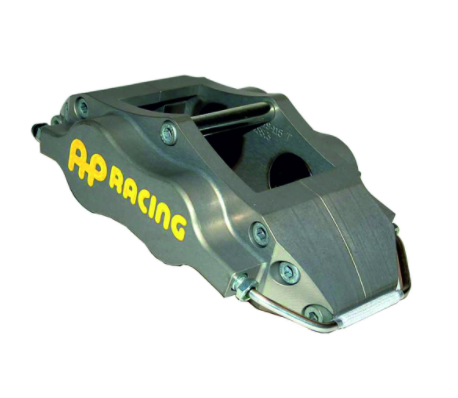

Radial 4 Piston - Two Piece Billet - CP5219
Applications:
- Front & Rear for 13" wheel.
- Lightweight Sportscar.
Features:
- Radial Mount, 152 x 42.78mm centres.
- Two piece billet aluminium alloy body.
- Suits Ø280 x 25.4mm disc.
- High Grade Aluminium pistons.
- CNC machined from billet.
- Superior dynamic performance than that of CP4219.
- Stainless Steel wear plates.
Part Numbers:
- RHT = CP5219-16S0. / - LHT = CP5219-17S0.
- RHL = CP5219-18S0. / - LHL = CP5219-19S0.
| Brake Pad Information|-|
CP3215D42
- Pad Area = 51.7cm²
- Pad Depth = 42.0mm
- Thickness = 16.8mm || TECHNICAL SPECIFICATIONS || Piston Sizes - mm | - Ø34.9 x 2
- Ø41.3 x 2 || Piston Area cm³ | 45.92 || Disc Diameter - mm | Ø280.0 || Disc Thickness - mm | 25.4 || Weight (no pads) - Kg | 1.98 || Hydraulic Threads | M10x1.0 || Mounting Type | Radial || Mounting Centres - mm | 152.0 || Mounting Offset - mm | 42.78 || Mounting Hole Ø - mm | 10.27 || ‘PL’ Dimension - mm | 56.81 || Bleed Screw Tightening Torque | 17Nm || SPARE PARTS || Pistons | - 34.9 = CP2876-101
- 41.3 = CP2270-92 || Seal Repair Kit | CP4518-GK || Pad Retainer | Bolt = CP4219-122 || Pad Retainer Bolt | CP5100.126 || Wear Plates | CP4219-7 || Bleed Screw | CP3880-1 || Fluid Pipe | CP5219-6 |
