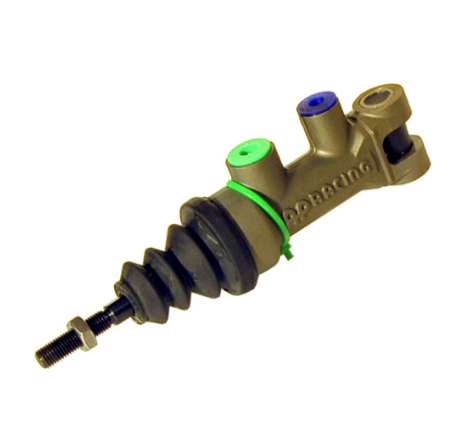

AP RACING CP7854-89PRTE Master brake cylinder 15mm (single-circuit)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
AP RACING CP7854-89PRTE Master brake cylinder 15mm (single-circuit)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
CP7854
A high efficiency single circuit, short push type master cylinder. Fixed through a trunnion system running in needle roller bearings and with a one piece piston / push rod it offers a significant improvement in efficiency over traditional cylinder designs.
Ranging from 14mm to 7/8" with 30mm stroke and 15/16" to 1.00" with 28mm stroke.
Note:
The following master cylinder part numbers have larger body dimensions, please check customer drawing before cylinder selection.
CP7854-93 / -94 / -95 & -96.
Features:
- Hard anodised Aluminium Alloy body.
- Compact Design.
- Extra Short travel to cut-off standard.
- One piece piston and push rod.
- Use with CP5520-3, -4 or -13 Trunnion type balance bar or purpose designed pedal box.
- Full range of 10 bore sizes.
- Rubber boots fitted as standard.
- Replaces CP5854 family
Weight - .28 to .293Kg (.61 to .64lbs)
Full Stroke - 14mm to 7/8" Bores - 30mm (1.18") /- 15/16" to 1.0" Bores - 28mm (1.10")
Travel To Cut-Off - Extra Short - .48 to .63mm (.19" to .25")
Inlet Hydraulic Thread - 7/16" x 20UNF
Outlet Hydraulic Thread - 3/8" x 24UNF
Push Rod Threads - PRTE = 5/16" x 24UNF
Bore Sizes Available Part Numbers
14mm - CP7854-88PRTE
15mm - CP7854-89PRTE
15.9mm (.625") 5/8" - CP7854-90PRTE
16.8mm - CP7854-905PRTE
17.8mm (.70") - CP7854-91PRTE
19.1mm (.75") 3/4" - CP7854-92PRTE
20.6mm (.812") 13/16" - CP7854-93PRTE
22.2mm (.875") 7/8" - CP7854-94PRTE
23.8mm (.937") 15/16" - CP7854-95PRTE
25.4mm (1.00") - CP7854-96PRTE
