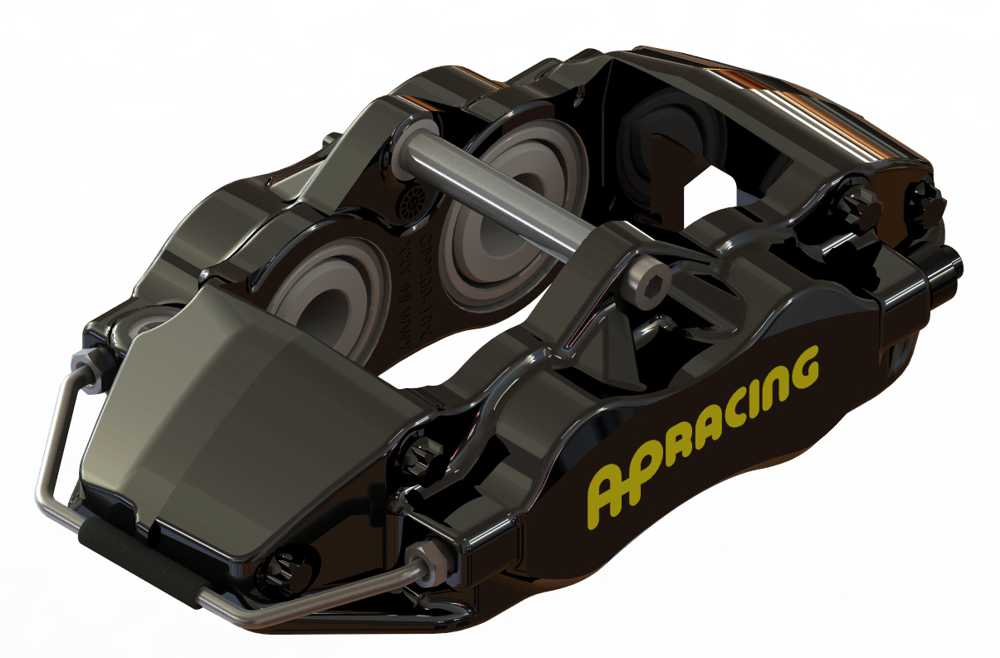

AP RACING CP9200-4S0BG Brake Caliper 4-piston Radial RHL (black) Photo-0

AP RACING CP9200-4S0BG Brake Caliper 4-piston Radial RHL (black)

€794,28

VAT included. Shipping calculated at checkout

AP RACING P/N: CP9200-4S0BG
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

AP RACING CP9200-4S0BG Brake Caliper 4-piston Radial RHL (black)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Applications:
- Front.
- Factory Big Brake Kit.

Features:
- Radial Mount, 152mm centres.
- Suits Ø330 x 28mm Max / 26mm Min Disc.
- Forged two piece Aluminium alloy body.
- Designed to replace CP5200 caliper.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

IMPORTANT NOTE: CP9200 replaces CP5200 family.

Black Caliper Part Numbers:
- RHT = CP9200-2S0BG / - LHT = CP9200-3S0BG.
- RHL = CP9200-4S0BG / - LHL = CP9200-250BG.

Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP9200-2S0R2


Brake Pad Information
(To view larger image of pad
click on Pad Part No)		 CP3215D50
cp3215d50
- Pad Area = 57.4cm²
- Pad Depth = 50.3mm
- Thickness = 16.8mm
TECHNICAL SPECIFICATIONS
Piston Sizes - mm Ø38.1 x 2
Ø41.3 x 2
Disc Diameter - mm Ø330
Disc Thickness - mm - Max = 28
- Min = 26
Weight (no pads) - Kg 2.43
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 152
Mounting Offset - mm 46.86
Mounting Hole Ø - mm 10.1 Nom
‘PL’ Dimension - mm 60.36
Bleed Screw Tightening Torque 17Nm
SPARE PARTS
Pistons - Ø38.1 = CP9200-108
- Ø41.3 = CP109
Seal Repair Kit CP4527-JK
Pad Retainer Type / Part No Bolt - CP5200-104
Pad Retainer Bolt Part No CP3596-112ST
Bleed Screw CP4970-125
Fluid Pipes CP9200-10
Pad Anti-Rattle Clip CP5200-151
