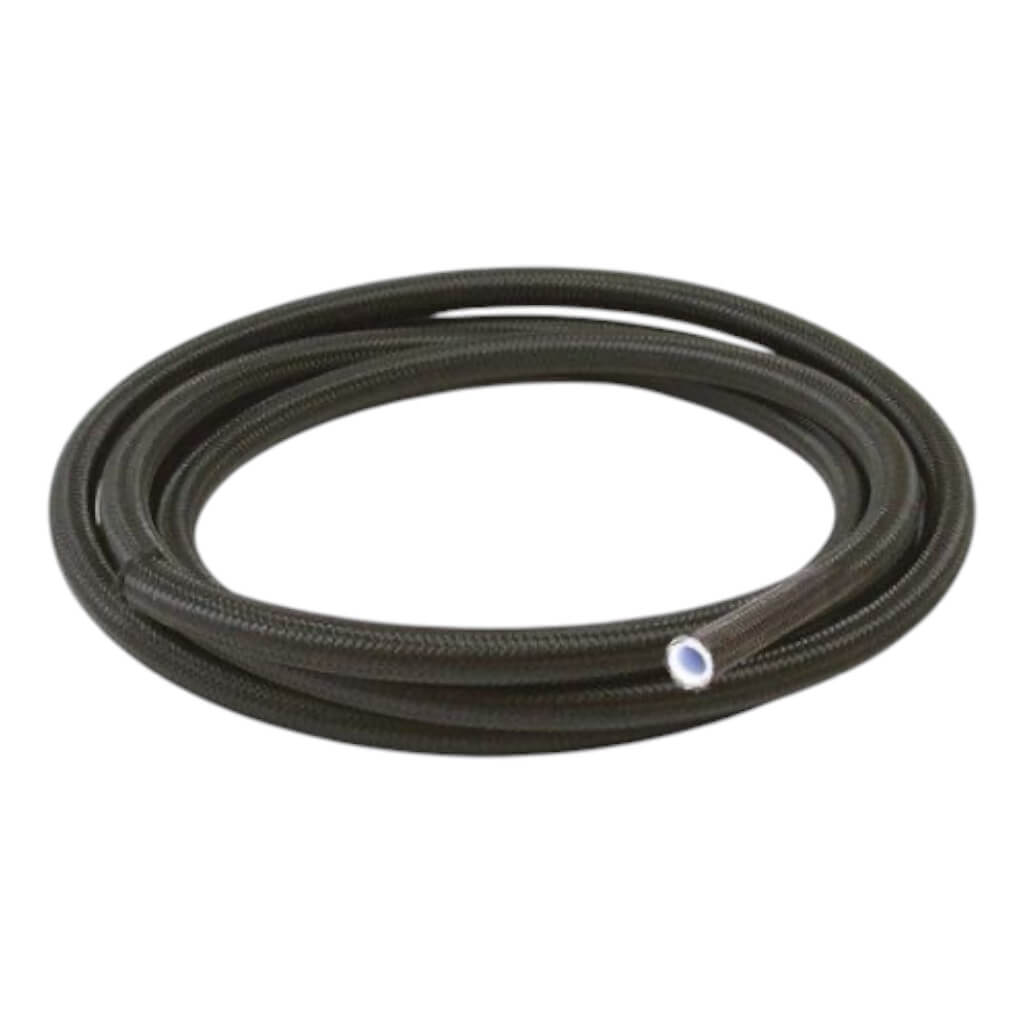

ARD AR0725B-03-M PTFE Stainless Steel Braided Hose AN3

Description ARD AR0725B-03-M PTFE Stainless Steel Braided Hose AN3

The ARD AR0725B-03-M AN3 hose is a high-quality PTFE-lined hose with a rugged stainless steel outer braid, engineered for precision and durability in demanding fluid transfer applications. Offering outstanding resistance to abrasion, chemicals, and high temperatures, this hose is ideal for performance-focused builds that require consistent pressure handling and long-term reliability.

Specifications:

• Size: AN3 (I.D: 9/64" / 3.56 mm, O.D: 1/4" / 6.35 mm)
• Inner Core: Smooth-bore extruded PTFE for low friction and excellent chemical resistance
• Outer Braid: Durable stainless steel for superior abrasion and corrosion resistance
• Operating Temperature: Handles extreme ranges from -70°C to +250°C
• Pressure Rating: Exceptional pressure tolerance — up to 2500 PSI (172 Bar in dash -06)
• Fitting Compatibility: Supports both reusable and crimp-style AN fittings

Best Suited For:

• Off-road brake systems
• Transmission and clutch lines
• Gauge feeds and N2O systems
• Hydraulic circuits and power steering
• Air conditioning and high-pressure air lines

Designed for motorsport and performance applications, the ARD AR0725B-03-M delivers precise fluid flow, high flexibility, and maximum safety — even under the most challenging conditions.
