ARD AR0725BLK-6-M PTFE Hose With Black Stainless Steel Wire Braided AN6

€16,06 €17,85
Save 10%

VAT included. Shipping calculated at checkout

ARDP/N: AR0725BLK-6-M GTIN: 2000000006987
In stock
Color:Default Title
Quantity:
Pickup available at Kelberg Warehouse Usually ready in 24 hours

ARD AR0725BLK-6-M PTFE Hose With Black Stainless Steel Wire Braided AN6

Default Title

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup currently unavailable

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

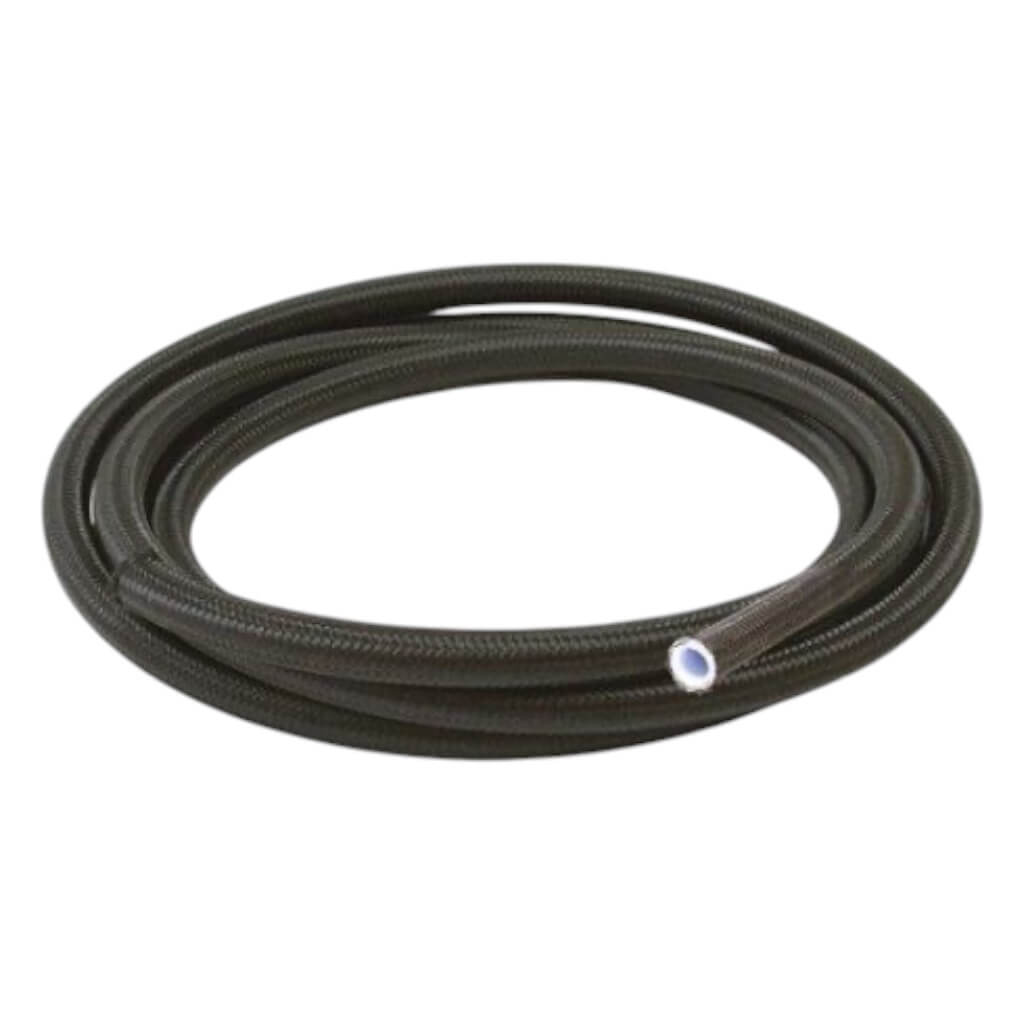

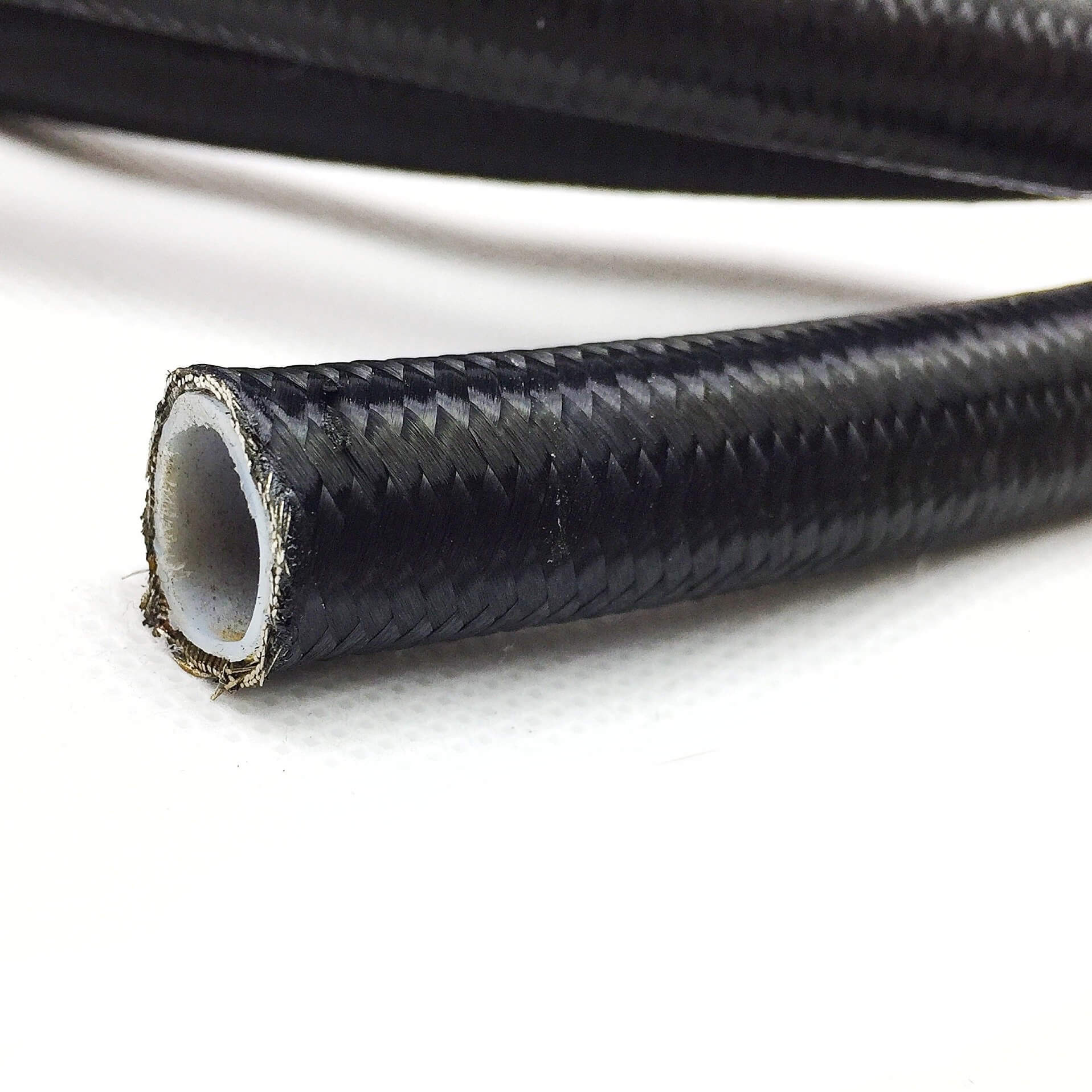

BLACK PTFE (Teflon) STAINLESS STEEL BRAIDED HOSE


  • AN6     I.D - 21/64" (8.13mm)     O.D - 27/64" (10.92mm)
  • Superior fluid compatibility,abrasion and corrosion resistance for reliable service.
  • Stainless steel outer cover for excellent abrasion resistance.
  • Extruded Teflon smooth bore inner tube.
  • -70°C to 250°C Temperature rating.
  • Approved with reusable and crimp fittings.
  • Excellent pressure rating (2500psi in dash -06). Bar (172)

Applications:
Off road brake,Transmission,Clutch,gauge,N2O,Power steering,Hydraulic,Air condition.


   AN                 I.D                             O.D

    3            9/64"   (3.56mm)             1/4"    (6.35mm)
    4            3/16"      (4.83mm)          5/16"     (8.0mm)
    6            21/64"  (8.13mm)           27/64"    (10.92mm)
    8            27/64"      (10.67mm)     35/64"     (13,72mm)
   10           33/64"   (12.95mm)        5/8"   (16.00mm)
   12           41/64"     (16.26mm)     49/64"   (19.30mm)
   16           7/8"   (22.22mm)           1-1/32"   (26.16mm)
   20           1-1/8"   (28.57mm)        1-9/32"    (32.77mm)
