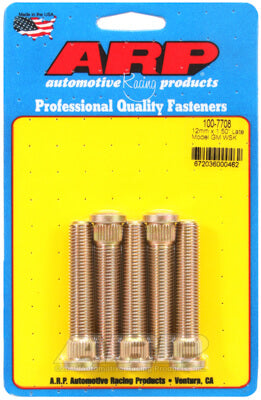

ARP 100-7708 Wheel Stud Kit for Late model GM M12 X 1.50" Photo-0

ARP 100-7708 Wheel Stud Kit for Late model GM M12 X 1.50"

Sale price€55,73

VAT included. Shipping calculated at checkout

ARPP/N: 100-7708 GTIN: 672036000462
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

ARP 100-7708 Wheel Stud Kit for Late model GM M12 X 1.50"

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Specifications
Knurl Diameter 0.509˝
UHL 2.500˝
Knurl Length 0.315˝
Nose Length
Diameter - Pitch M12 x 1.5
Wheel Stud Hole Size - Cast Iron/Steel Hub 0.493˝ - 0.503˝
Cast Iron/Steel Hub Drill Bit Size (actual dim.) 1/2˝ (0.500˝)
Wheel Stud Hole Size - Aluminum Hub 0.493˝ - 0.499˝
Aluminum Hub Drill Bit Size (actual dim.) 12.5mm* (0.492˝)
* The nearest standard drill bit is too small. You will need to use an appropriately sized reamer to enlarge the drilled hole until it is within the tolerance for the material.
click for info on fitting these studs to your hubs
