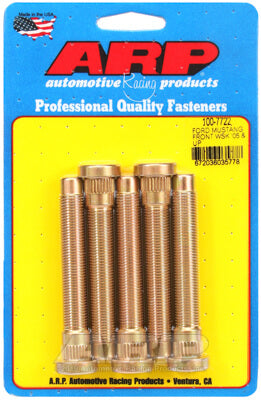

ARP 100-7722 Wheel Stud Kit for Ford Mustang '05 & later. front
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
ARP 100-7722 Wheel Stud Kit for Ford Mustang '05 & later. front
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Pickup available, usually ready in 24 hours
Nürburgring Boulevard 2
53520 Nürburg
Germany
| Specifications | |
|---|---|
| Knurl Diameter | 0.550˝ |
| UHL | 3.315˝ |
| Knurl Length | 0.300˝ |
| Nose Length | 0.300˝ |
| Diameter - Pitch | 1/2-20 |
| Wheel Stud Hole Size - Cast Iron/Steel Hub | 0.534˝ - 0.544˝ |
| Cast Iron/Steel Hub Drill Bit Size (actual dim.) | 13.5mm* (0.532˝) |
| Wheel Stud Hole Size - Aluminum Hub | 0.534˝ - 0.540˝ |
| Aluminum Hub Drill Bit Size (actual dim.) | 13.5mm* (0.532˝) |
| * The nearest standard drill bit is too small. You will need to use an appropriately sized reamer to enlarge the drilled hole until it is within the tolerance for the material. | |
| click for info on fitting these studs to your hubs | |
