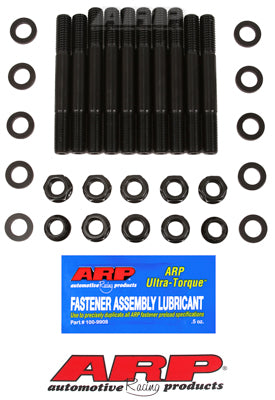

ARP 145-5601 Main Stud Kit for Mopar 426 Hemi

2-Bolt Main Stud Kit (145-5601) by ARP®. There are many important reasons to use ARP main stud kits including the elimination of main cap walk and fretting as well as protecting the threads in your engine block. All kits come complete with hardened parallel-ground washers and high quality nuts. Some applications have provisions for mounting windage trays and have specially designed standoff studs with serrated lock nuts to position the windage tray and lock it securely in place. The studs are manufactured from 8740 Chromoly steel heat-treated in-house to 200,000 psi tensile strength and precision J-form threads rolled after heat-treat to create a fastener that has threads 2000% stronger than others. The engineers at ARP spent quite a bit of time developing these highly effective, unique oil pan studs. They’re designed to make it as easy as possible to install a pan and seal it properly. You’ll note that the studs have a radiused bullet nose that serves to locate the pan rails, then allow the nuts to be easily installed without the worry of cross-threading. For those who prefer bolts, ARP’s got you covered, too.

Material: 8740 Chromoly
Kit Type: Stud
Main Bolt Style: 2-Bolt
Finish: Black
Quantity: Kit

Kit Instructions

Supported Vehicles:

Dodge:

Challenger 1970-1971
Charger 1967-1971
Coronet 1967-1971

Plymouth:

Barracuda 1968-1971
Belvedere 1967-1970
GTX 1967-1971
Satellite 1967
Superbird 1970
