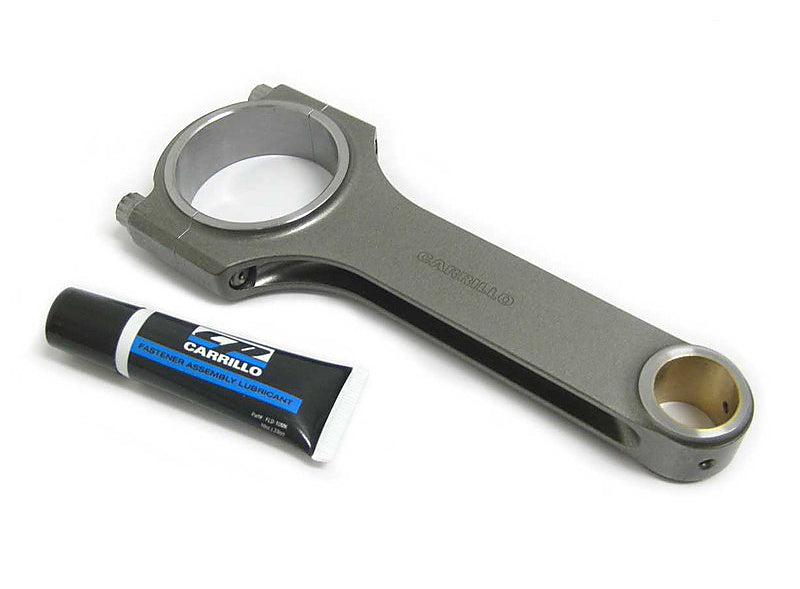

CARRILLO SCR5509 Connecting Rod PRO-H (1 pc) for TOYOTA 1FZ-FE
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CARRILLO SCR5509 Connecting Rod PRO-H (1 pc) for TOYOTA 1FZ-FE
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Overview
Brand: CP-Carrillo
Manufacturer's Part Number: TO-1FZFE-1>-66063S
Part Type: Connecting Rods
Product Line: Carrillo Pro-H Straight H-Beam Connecting Rods
Summit Racing Part Number: CNN-FZFE166063S0
Quantity: Sold individually.
Connecting Rod Length Center to Center (in.): 6.063 in.
Connecting Rod Beam Style: H-beam
Connecting Rod Material: Steel
Connecting Rod Finish: Shot-peened
Wrist Pin Style: Floating
Big End Bore Diameter (in.): 2.3830 in.
Big End Width (in.): 1.096 in.
Pin End Bore Diameter: 26.000mm
Pin End Width (in.): 1.096 in.
Clearanced for Stroker: No
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: CARR
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: Multiphase bolts
Connecting Rod Bolt Head Style: 12-point
Approximate Connecting Rod Weight (g): 760
Weight Matched Set: No
Remanufactured: No
Magnafluxed: No
Carrillo Pro-H Straight H-Beam Connecting Rods
Lead the way with strong Carrillo Pro-H connecting rods. Able to handle the most abusive forces of your race engine, these straight H-beams are the stoutest configurations available. Obsessed with perfection, Carrillo produces their Pro-H connecting rods in small batches. They mesh quality materials, precision forging, excellent craftsmanship, and high-tech designs to deliver a flawless performance for your race engine. Applications are available for many venues of motorsports. Drive your racer to the winner's circle with the high performance ""choice connection""-Carrillo Pro-H straight H-beam connecting rods.
