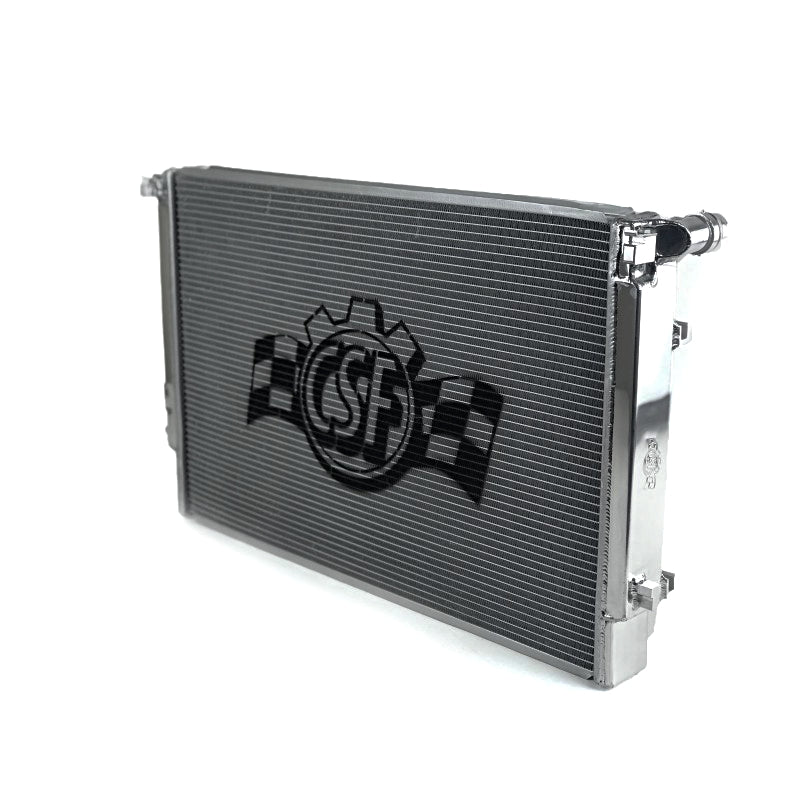

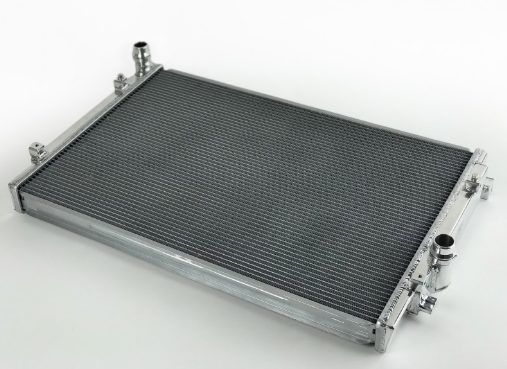

CSF 7084 VAG MQB ALL-ALUMINIUM TRIPLE PASS WATER RADIATOR

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi/VW running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

The CSF Audi/VW radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

Applications

• 2015-2020 Audi A3 - Turbocharged 2.0L L4
• 2015-2020 Audi A3 Quattro - Turbocharged 2.0L L4
• 2019-2022 Audi Q3 - Turbocharged 2.0L L4
• 2015-2020 Audi S3 - Turbocharged 2.0L L4
• 2016-2021 Audi TT Quattro - Turbocharged 2.0L L4
• 2016-2021 Audi TTS Quattro - Turbocharged 2.0L L4
• 2019-2021 Volkswagen Arteon - Turbocharged 2.0L L4
• 2015-2021 Volkswagen Golf - Turbocharged 1.8L L4
• 2017-2019 Volkswagen Golf Alltrack - Turbocharged 1.8L L4
• 2015-2019 Volkswagen Golf R - Turbocharged 2.0L L4
• 2015-2019 Volkswagen Golf SportWagen - Turbocharged 1.8L L4
• 2015-2021 Volkswagen GTI - Turbocharged 2.0L L4
• 2019 Volkswagen Jetta GLI 35th Anniversary Edition - Turbocharged 2.0L L4
• 2019-2021 Volkswagen Jetta GLI Autobahn - Turbocharged 2.0L L4
• 2019-2021 Volkswagen Jetta GLI S - Turbocharged 2.0L L4
• 2018-2020 Volkswagen Tiguan - Turbocharged 2.0L L4

OEM Part Numbers

• Audi: 5Q0121251GN
• Volkswagen: 5Q0121251GN
