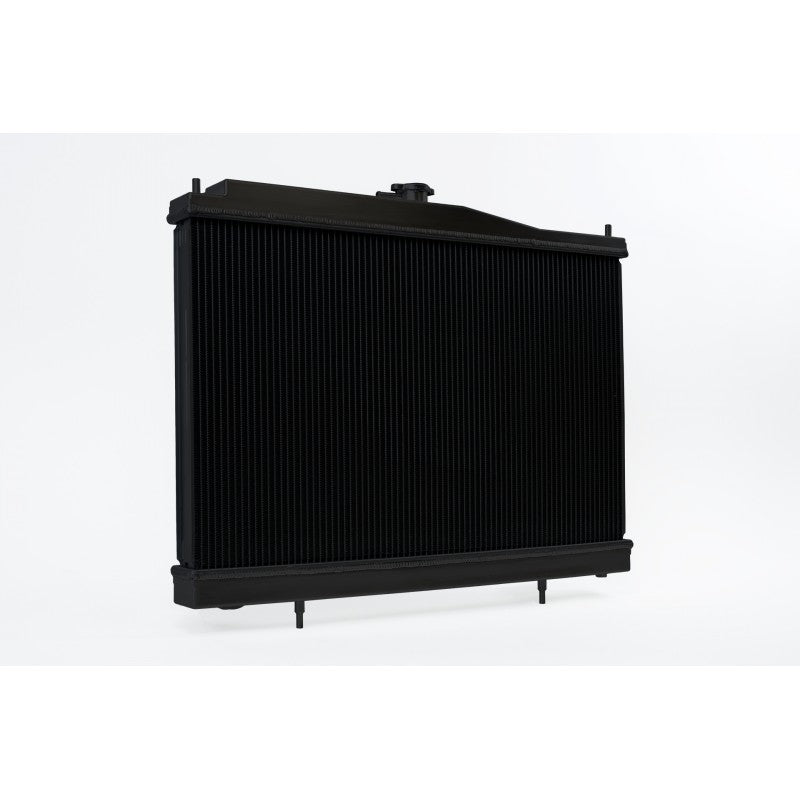

CSF 7219B High Performance Cooling Radiator Black for NISSAN Skyline GT-R (R33) 1995-1998

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant’s heat to dissipate from.

Each end tank is CNC machined billet aluminum giving them incredible strength and durability. CNC machining offers incredible precision and uniformity. The results are perfectly produced end tanks that perfectly match up with the ends of the 42 mm core. Hand TIG welding joins the tanks to the core creating the strongest radiator on the market for the R33 Skyline.

Each radiator includes a 1.4 bar high pressure cap with an embossed CSF logo. High pressure radiator caps raise the boiling point of coolant. This helps protect the system from boiling over at higher operating temperatures. While the radiator is designed to keep the system from reaching such temperatures, it is always good to have extra protection for situations where the coolant gets too hot.

• CNC Machined 100% Billet Aluminum End Tanks
• Raw Billet Aluminum Finish (#7219) or Satin Black Finish (#7219B)
• 2-Row – 42mm Ultra-High-Performance Core
• 75 Cooling Tubes with CSF’s Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• Top Rank Logo machined into Top End Tank and Painted on Core
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• OE Location Fan Shroud Mounting Points
• 2-Year Limited Warranty
• Limited Production

OEM Part Number:

• Nissan: 21410-15U17

Applications:

• 1995-1998 Nissan R33 Skyline GT-R (incl. Nismo, V-Spec, CRS, etc)
• 1994-1997 Nissan R33 Skyline GTS / GTS-25 / GTS-4 / GTS-25t
• 1995-1996 Nissan Skyline R33 400R
• 1997-1998 Nissan Skyline R33 Autech Version 40th Anniversary
• 1995-1998 Nissan Skyline R33 GT-R V-Spec N1
• 1995-1998 Nissan Skyline R33 GT-R LM Limited
• 1995-1998 Nissan Skyline R33 GT-R V-Spec LM Limited
