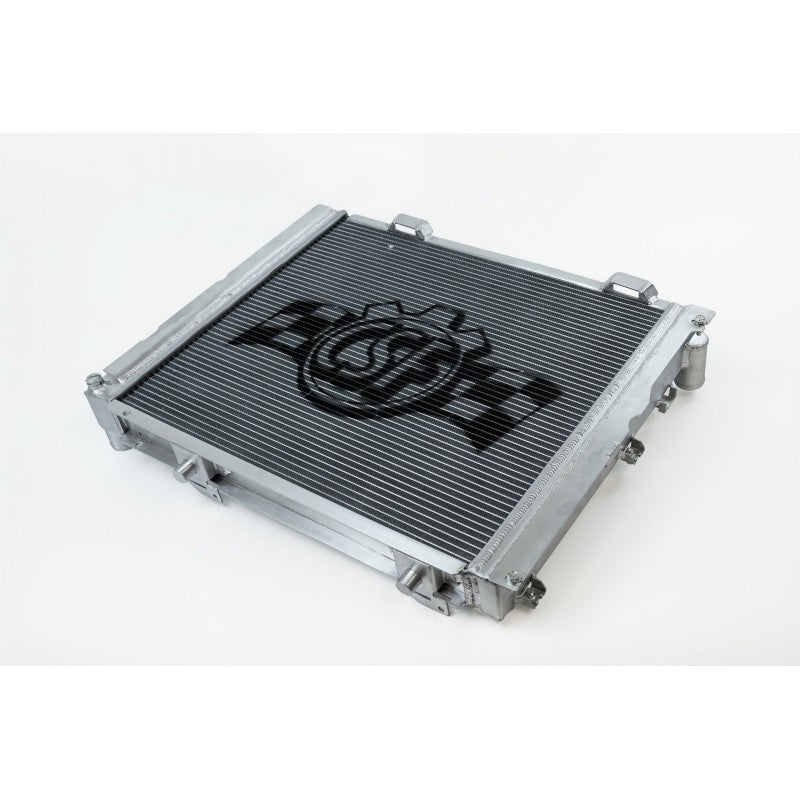

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-1

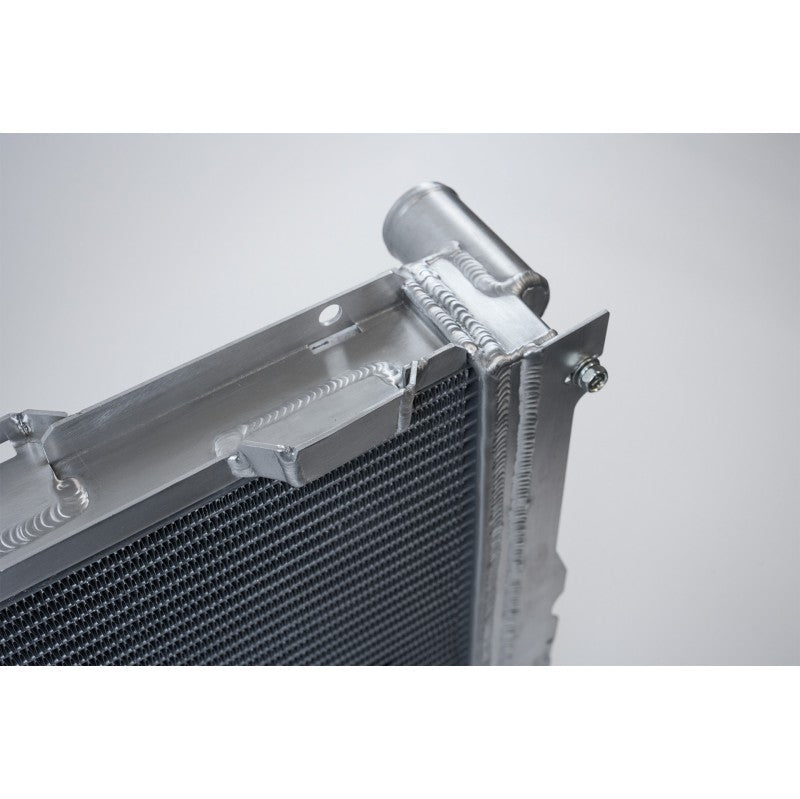

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-2
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-3
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-4

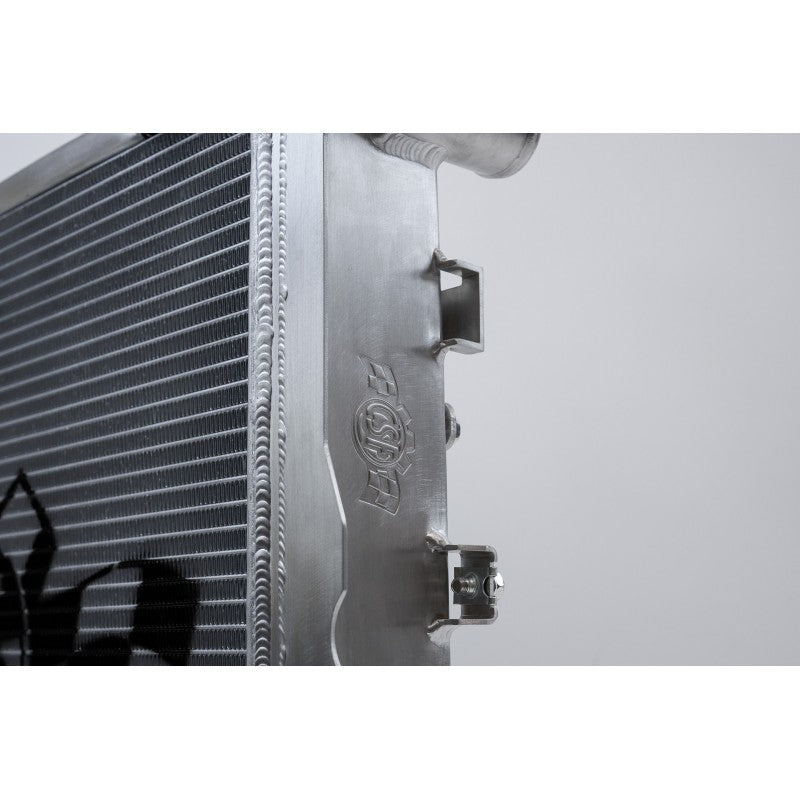

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-5
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-6
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-7

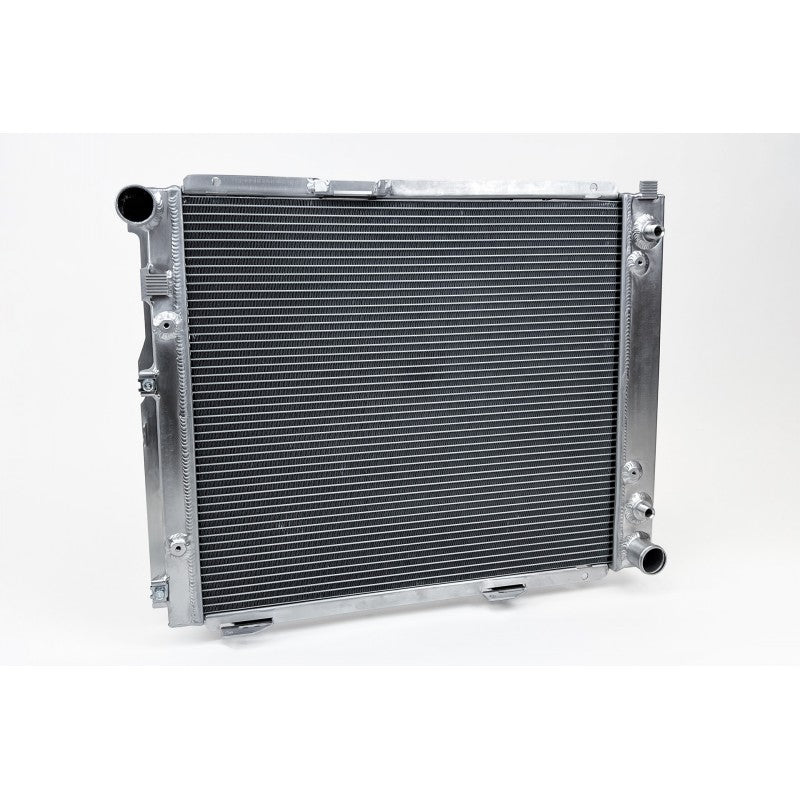

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-8
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-9
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-10
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-11
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-12
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-13
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-14
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-15
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-16
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-17
CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16 Photo-18

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16

Sale price€900,59

VAT included. Shipping calculated at checkout

CSFP/N: 7220 GTIN: 710353072202
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

CSF 7220 High-Performance Aluminum Radiator for MERCEDES-BENZ W201 190E 2.3-16/2.5-16

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

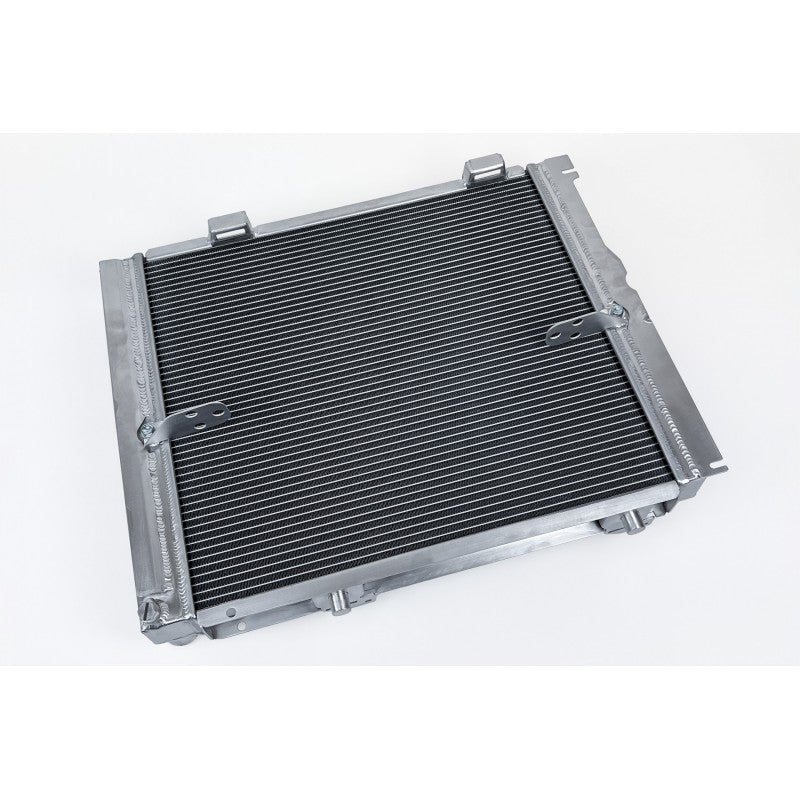

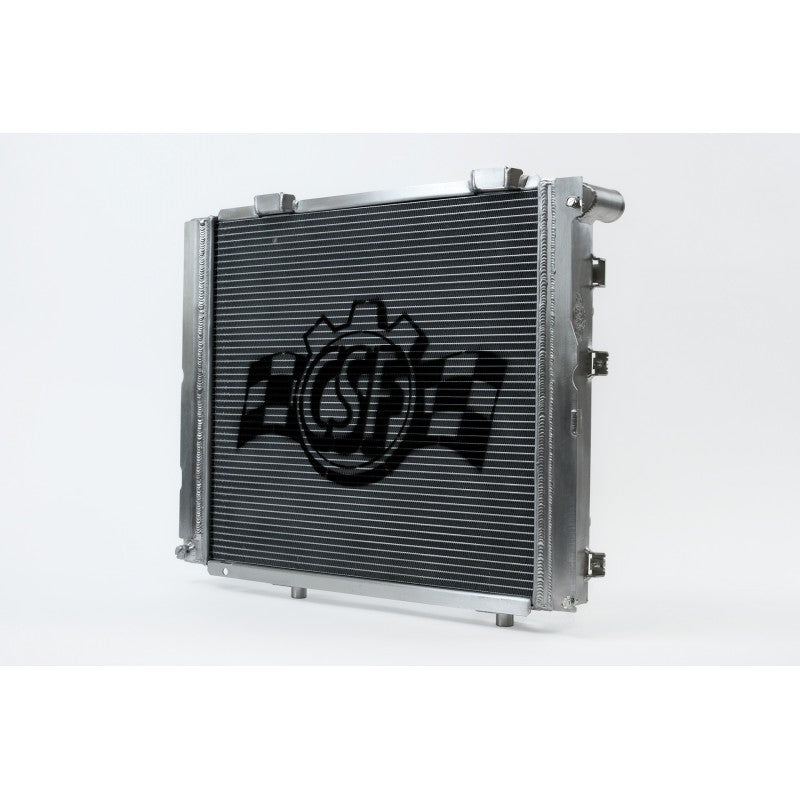

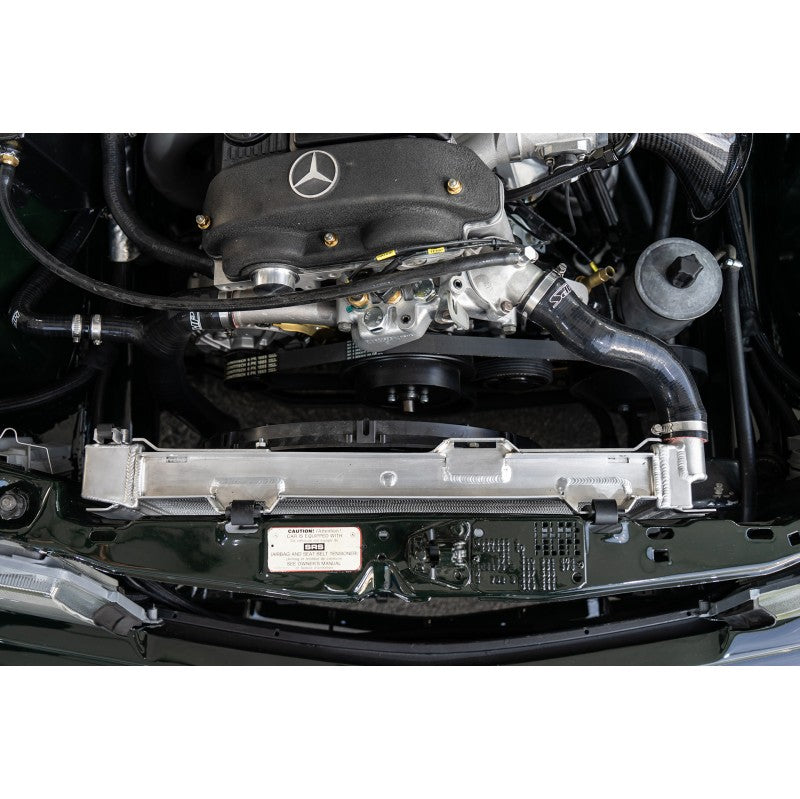

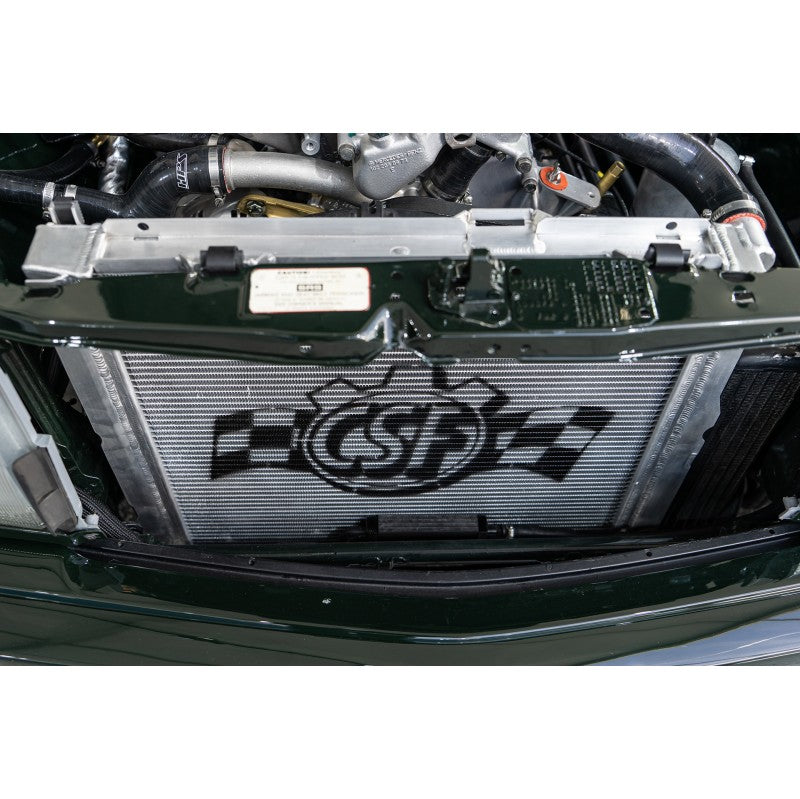

The CSF radiator features a 2-Row 42mm aluminum core that not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. With nearly double the number of cooling fins and tubes the CSF Radiator will outperform the OEM unit by a significant margin. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. The radiator mounts in the factory location and requires no modifications or cutting.

The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.

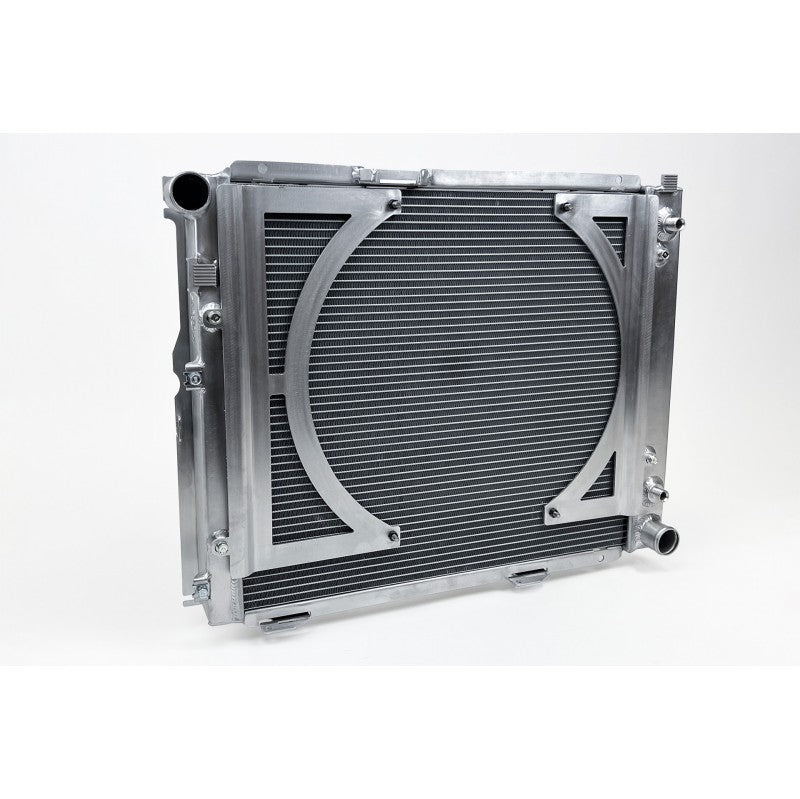

The 190E 2.3-16 and 2.5-16 both originally came equipped with a clutch style mechanical fan. While these old school fans function just fine, many owners like to upgrade to modern electrical fans. To make this conversion easier, CSF includes mounting brackets that work with 16 inch SPAL fans. Both the low profile SPAL #30100400 and medium profile SPAL #30101516 will bolt onto the brackets. Please note you will need a fan controller (not included) to use an electric fan on the 190E.

  • 2-Row, 42mm Ultra-High-Performance Dual Pass Core
  • Cooling Tubes with CSF’s Exclusive B-Tube Technology
  • 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact

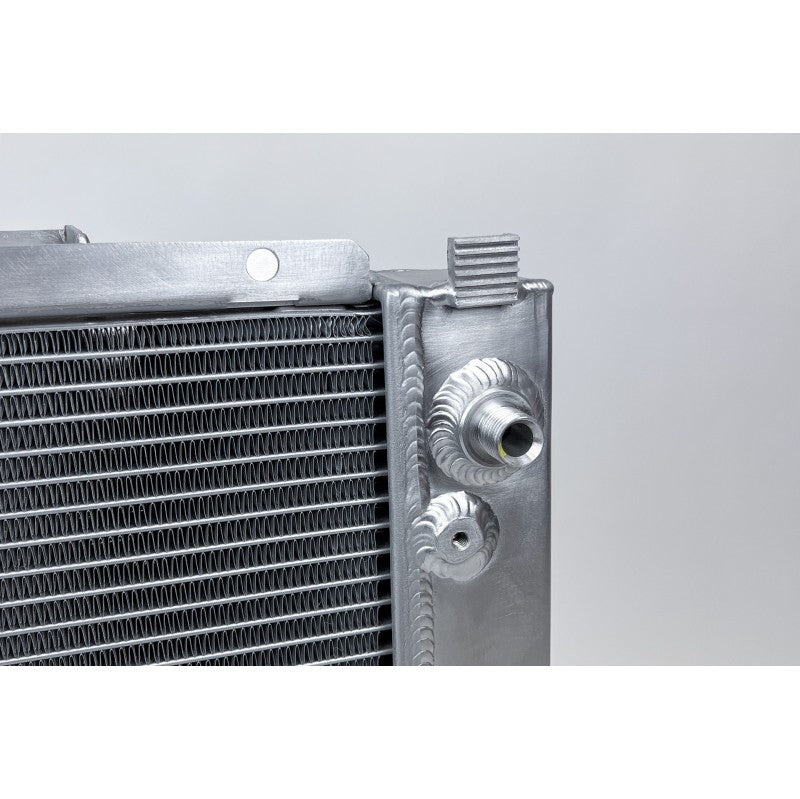

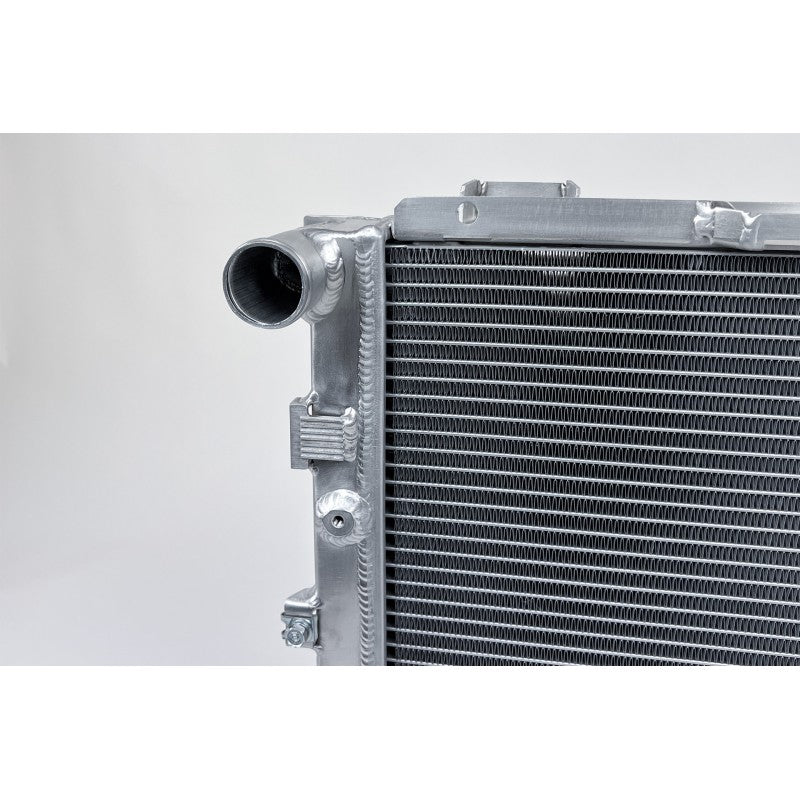

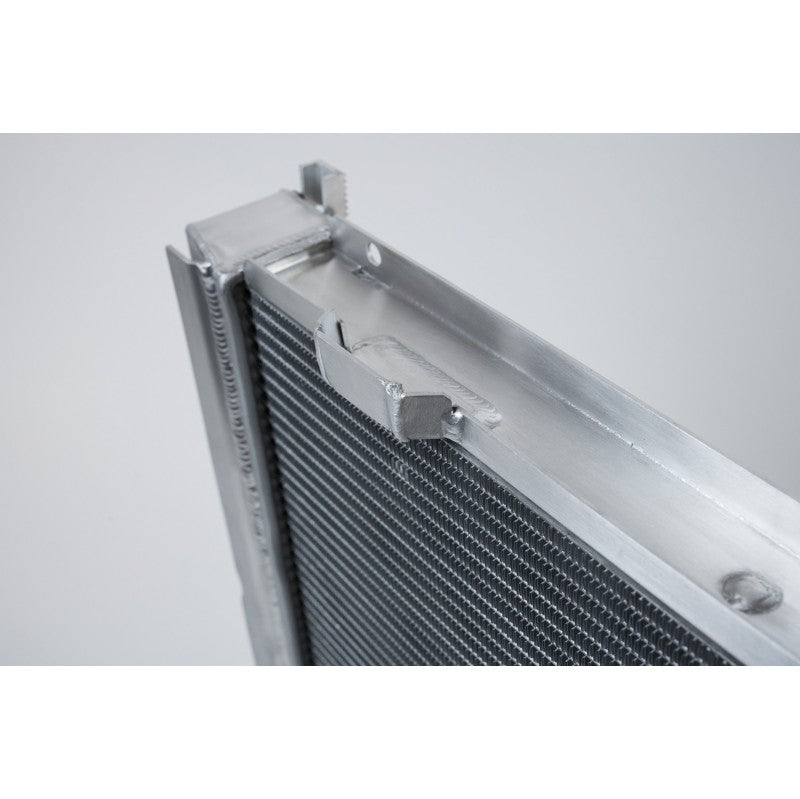

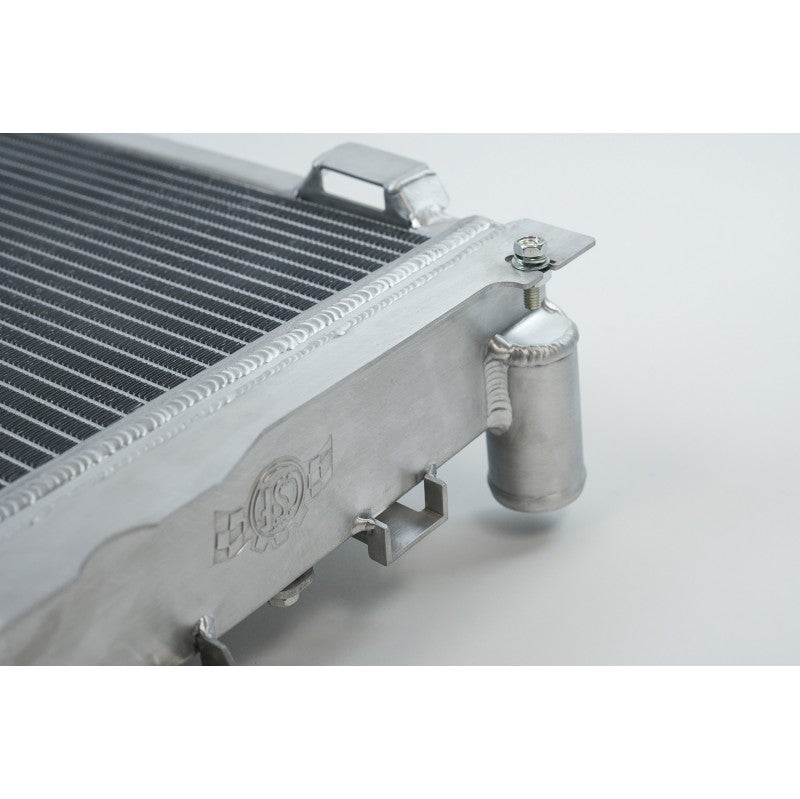

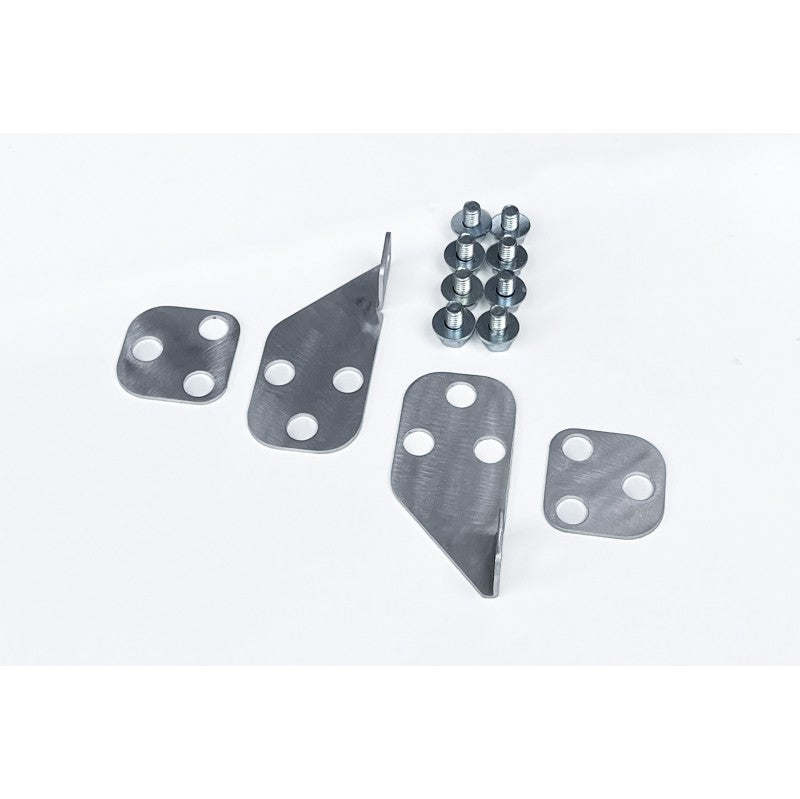

  • CNC Machined Mounting Brackets and OEM Style Inlet/Outlet

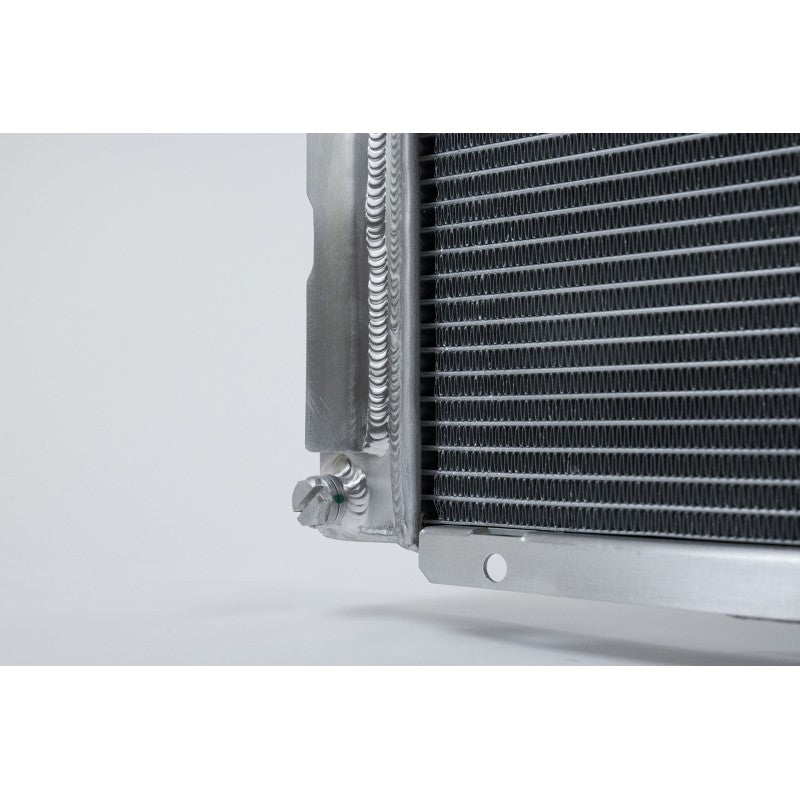

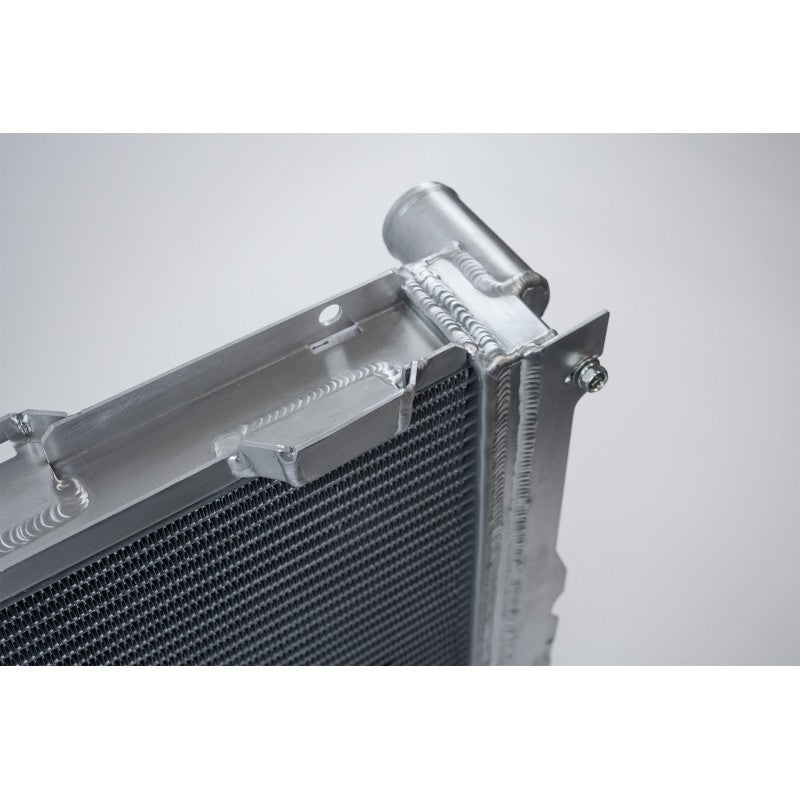

  • 100% All Aluminum TIG-Welded Construction
  • Satin Finish

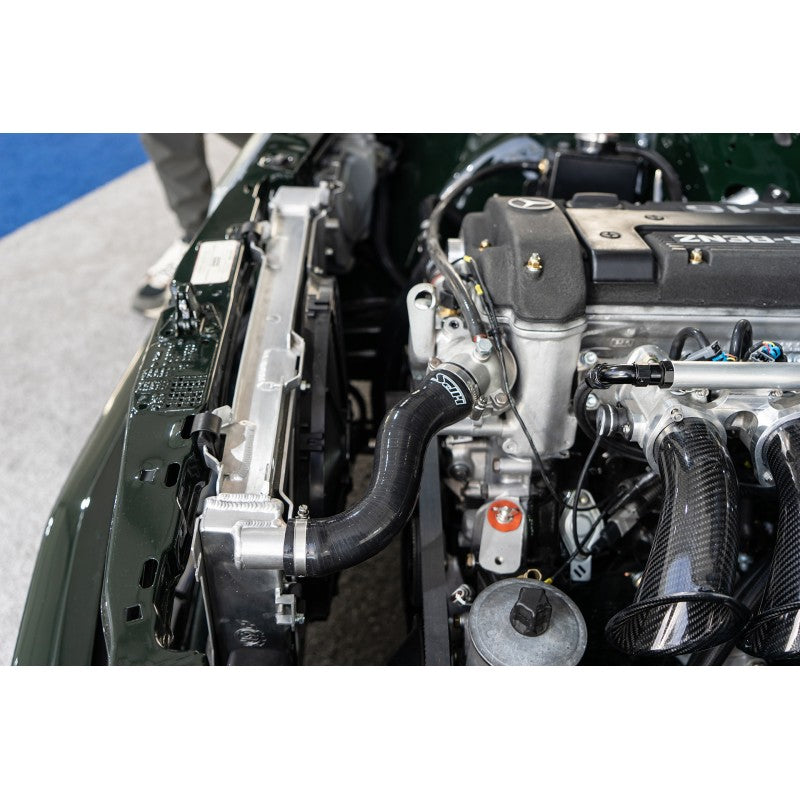

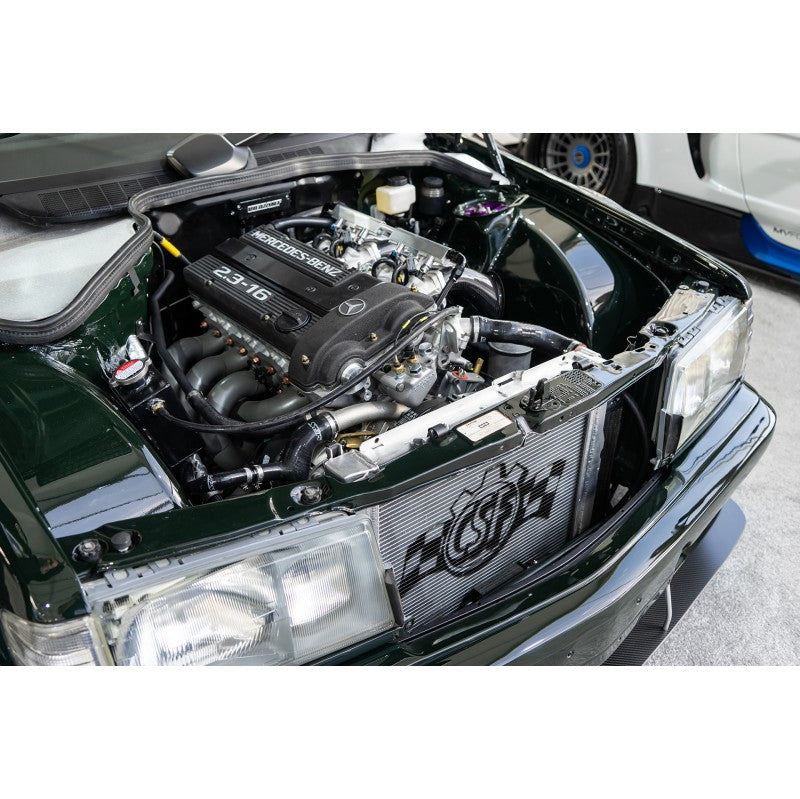

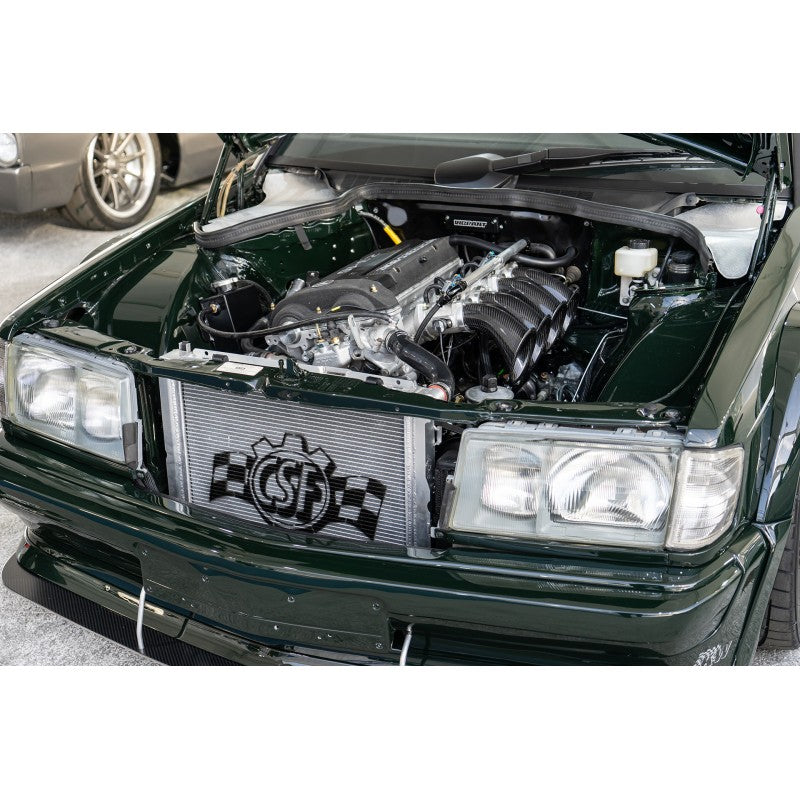

  • True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
  • Individually Leak and Pressure Tested
  • Modular design for use with or without Auxiliary Radiator

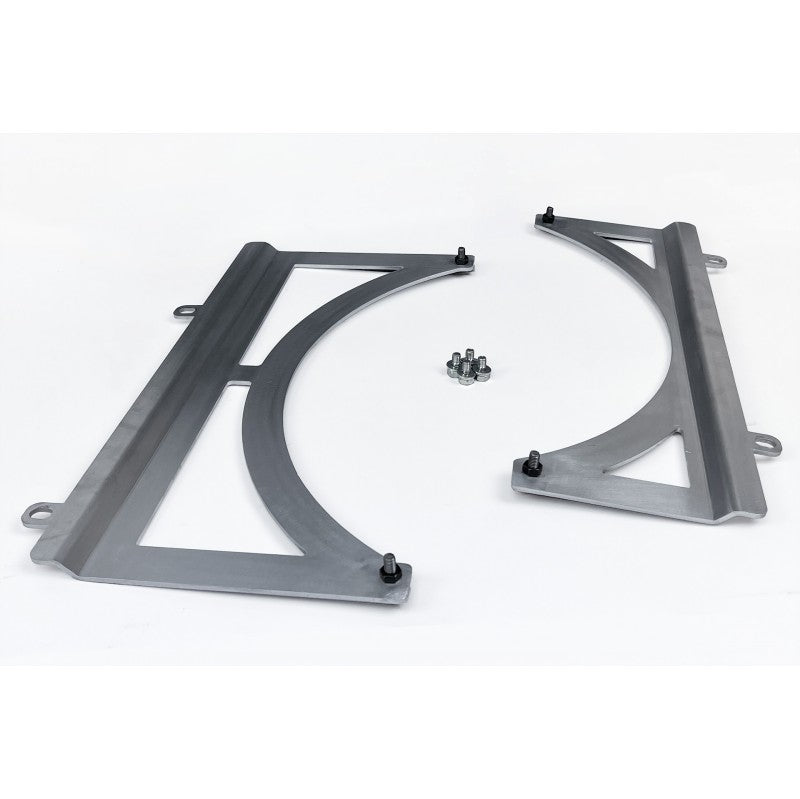

  • Includes CNC Cut Fan Mounting Brackets for a 16 inch SPAL Fan
    • Low Profile SPAL Fan PN: 30100400
    • Medium Profile SPAL Fan PN: 30101516
  • 2-Year Limited Warranty

Applications:

  • 1984-1988 Mercedes-Benz W201 190E 2.3-16 – with A/C
  • 1989-1993 Mercedes-Benz W201 190E 2.5-16 (incl. Evolution I and II) – with A/C

OEM Part Numbers:

  • Mercedes-Benz: A2015005303
