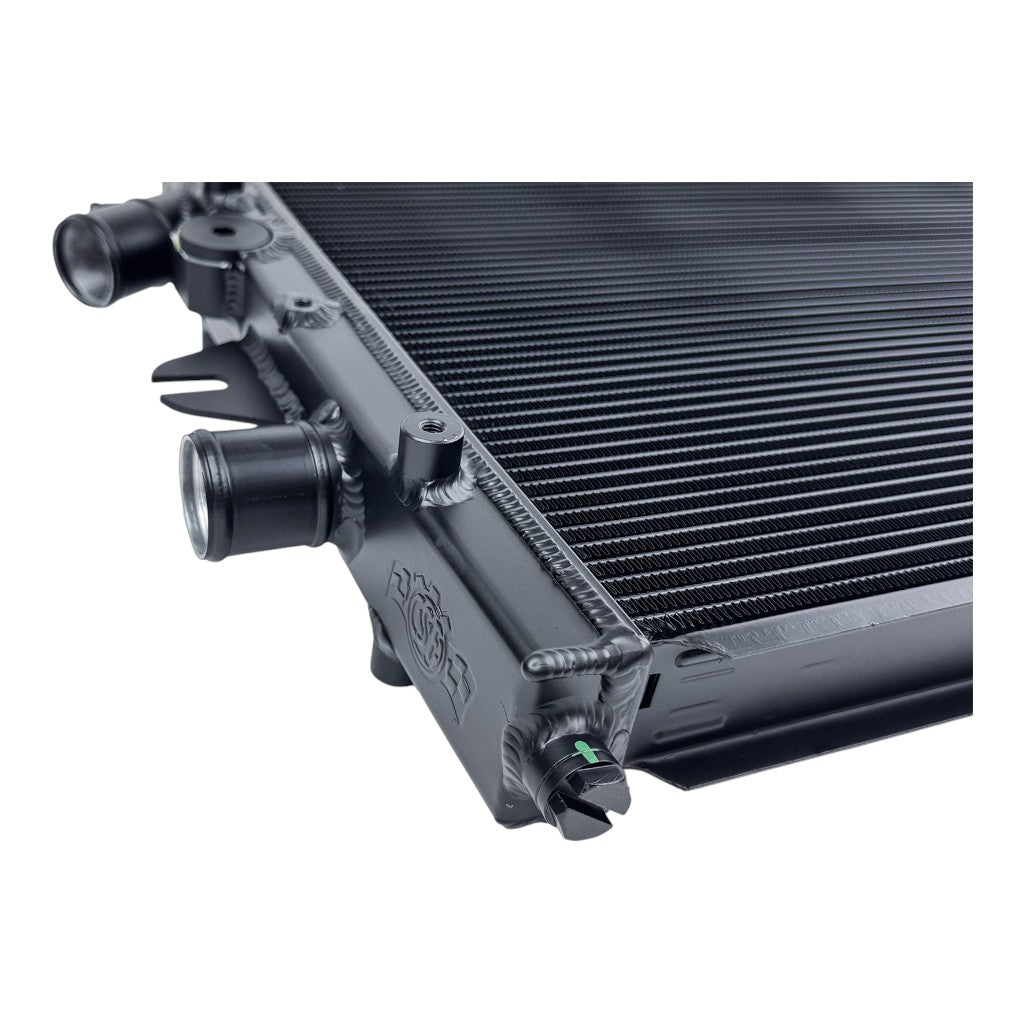

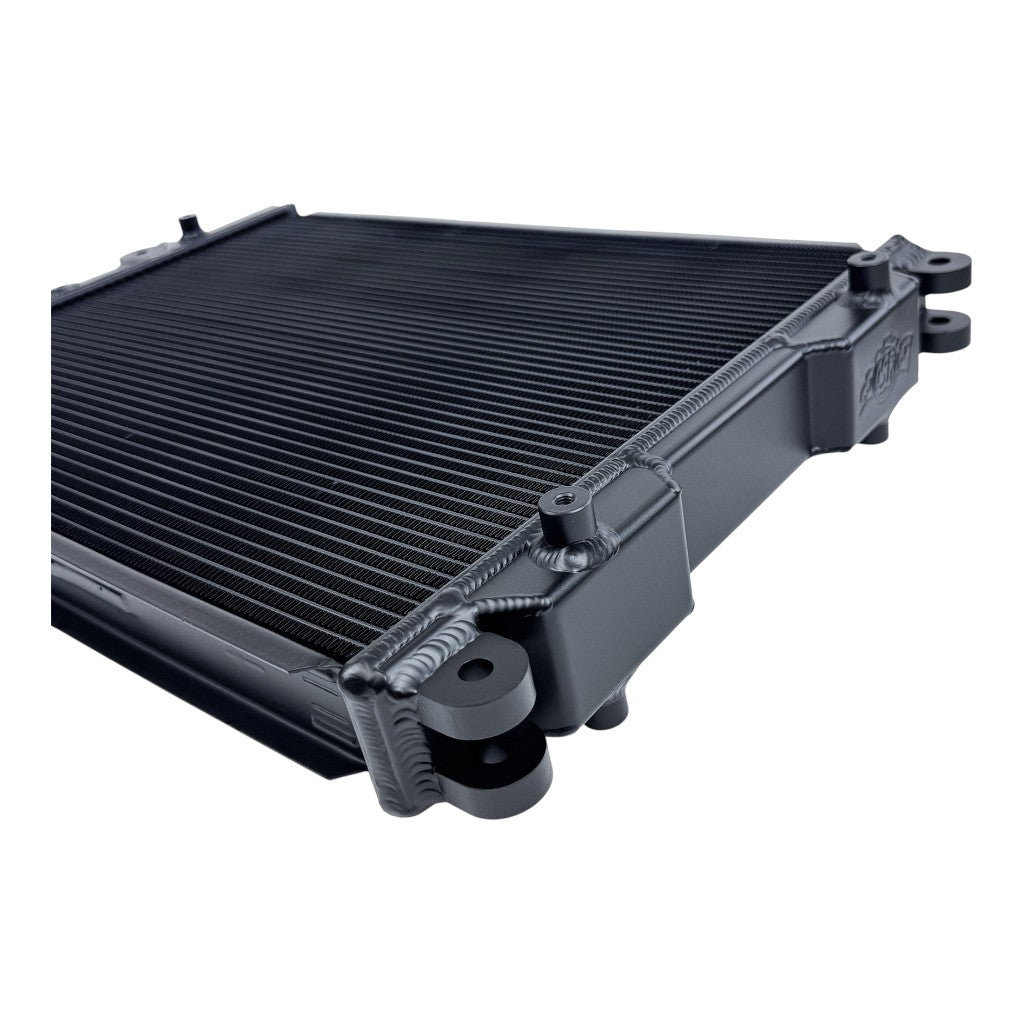

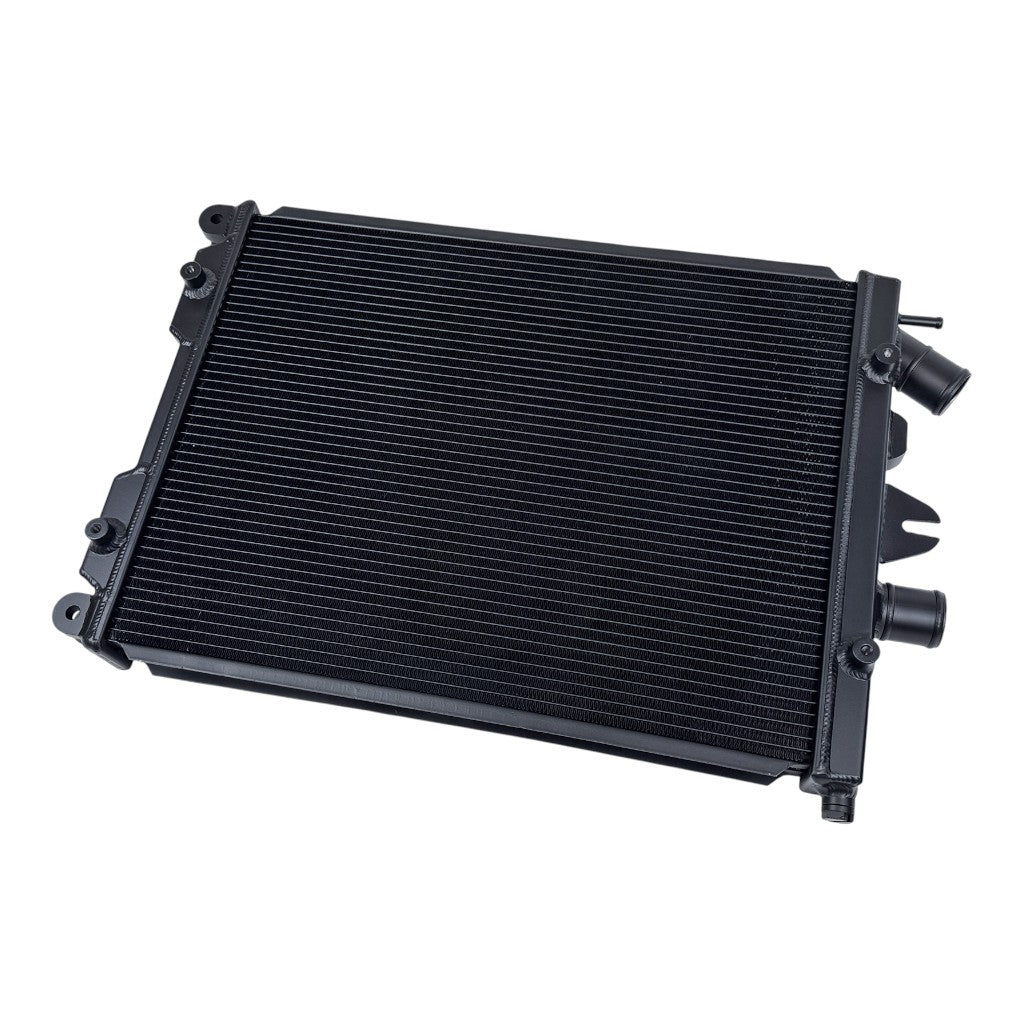

CSF 7246 High-Performance Aluminum Radiator for FERRARI 360 Modena / Spider / Challenge / Challenge Stradale 2000-2008

Description CSF 7246 High-Performance Aluminum Radiator for FERRARI 360 Modena / Spider / Challenge / Challenge Stradale 2000-2008

The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. The use of CSF’s 5mm fins also allowed for 12 additional cooling tubes and fin rows.

CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

The combination of TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. Additionally, the satin black finish gives the radiator a clean OEM look and both radiators are a true Plug-and-Play “Drop-in Fit” application.

CSF always seeks to offer the ultimate cooling solution. The latest 5mm fin technology was introduced at the end of 2023 offers even more heat transfer area and thermal efficiency than CSF’s tried and true 6.5mm fins. Porsche owners are known to push their cars hard and CSF is confident this radiator is ready to take on the most demanding conditions in the world.

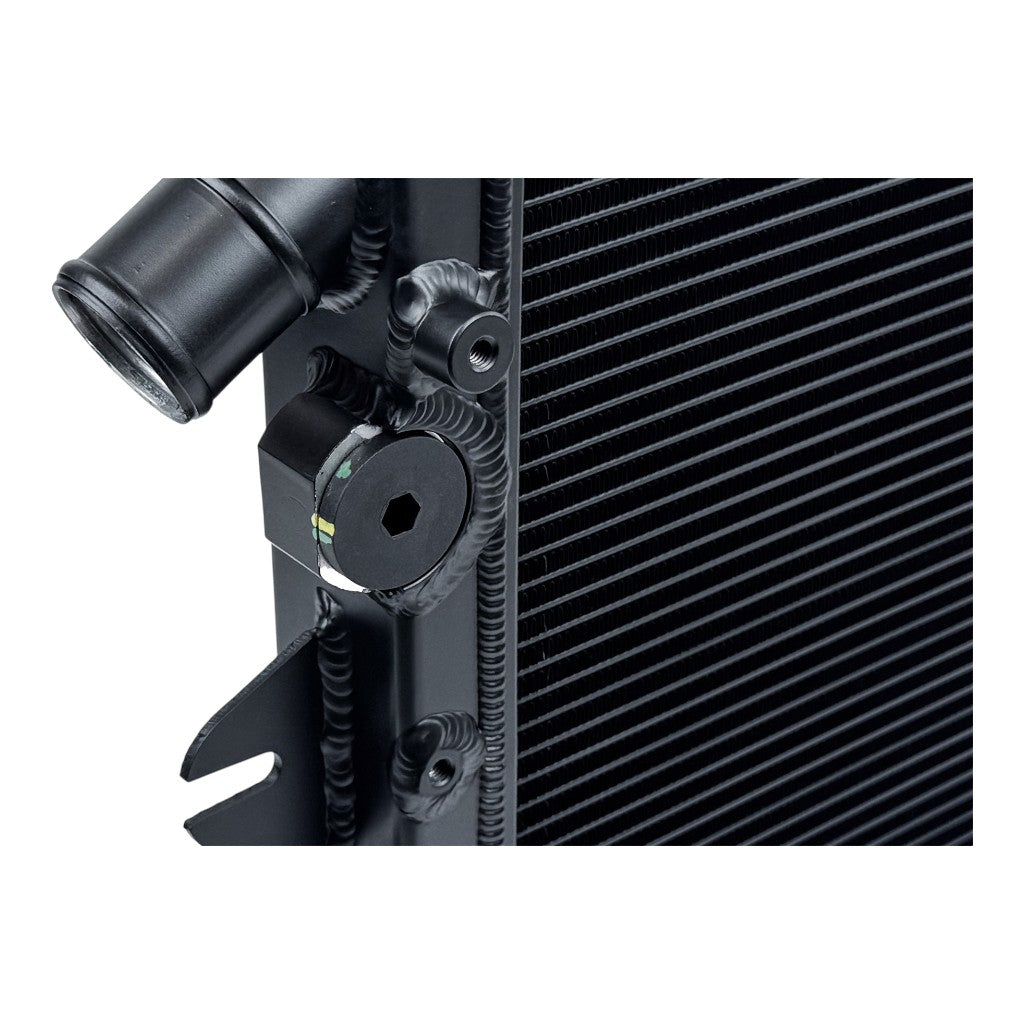

CSF Designed both the 360 and F430 radiators to fit both the left and right hand sides. The F430 OE radiators are designed this way but the 360 radiators are not. To resolve this, CSF simply includes a port for the coolant temperature sensor for both sides. This can be used with the OE 176322 sensor or any aftermarket sensor using M22x1.5 threading.

• Sold Individually – Fits both left and right sides
• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Double Barbed Inlet/Outlet Connections
• Pre-Plugged Port for OE (Ferrari 176322) or Aftermarket temp sensors (M22 x 1.5 Threading)
• 100% All Aluminum TIG-Welded Construction
• Hand Brushed Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2000-2008 Ferrari 360 (Modena, Spider, Challenge, and Challenge Stradale)

OEM Part Numbers:

• Ferrari: 763785 (Left)
  • Supersedes: 176056 (Left)
• Ferrari: 763787 (Right)
  • Supersedes: 172456 (Right)
