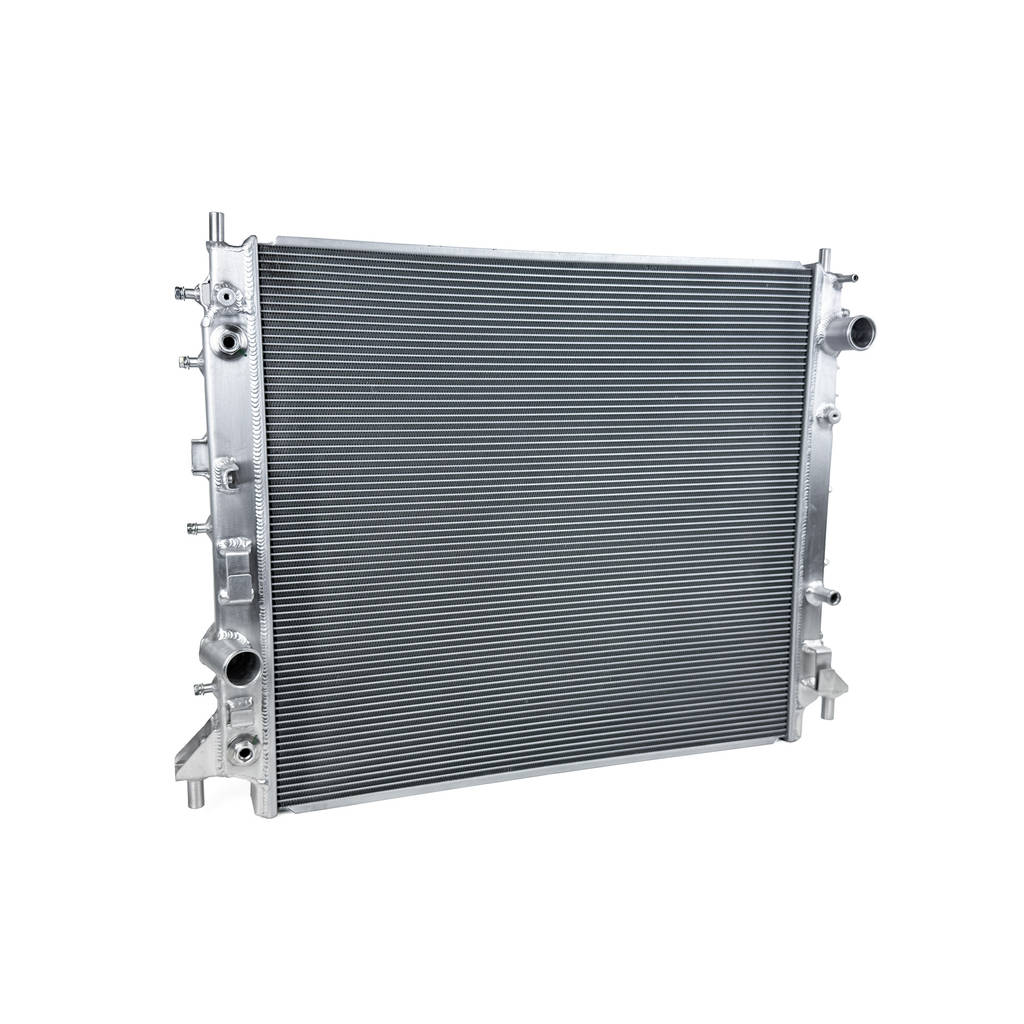

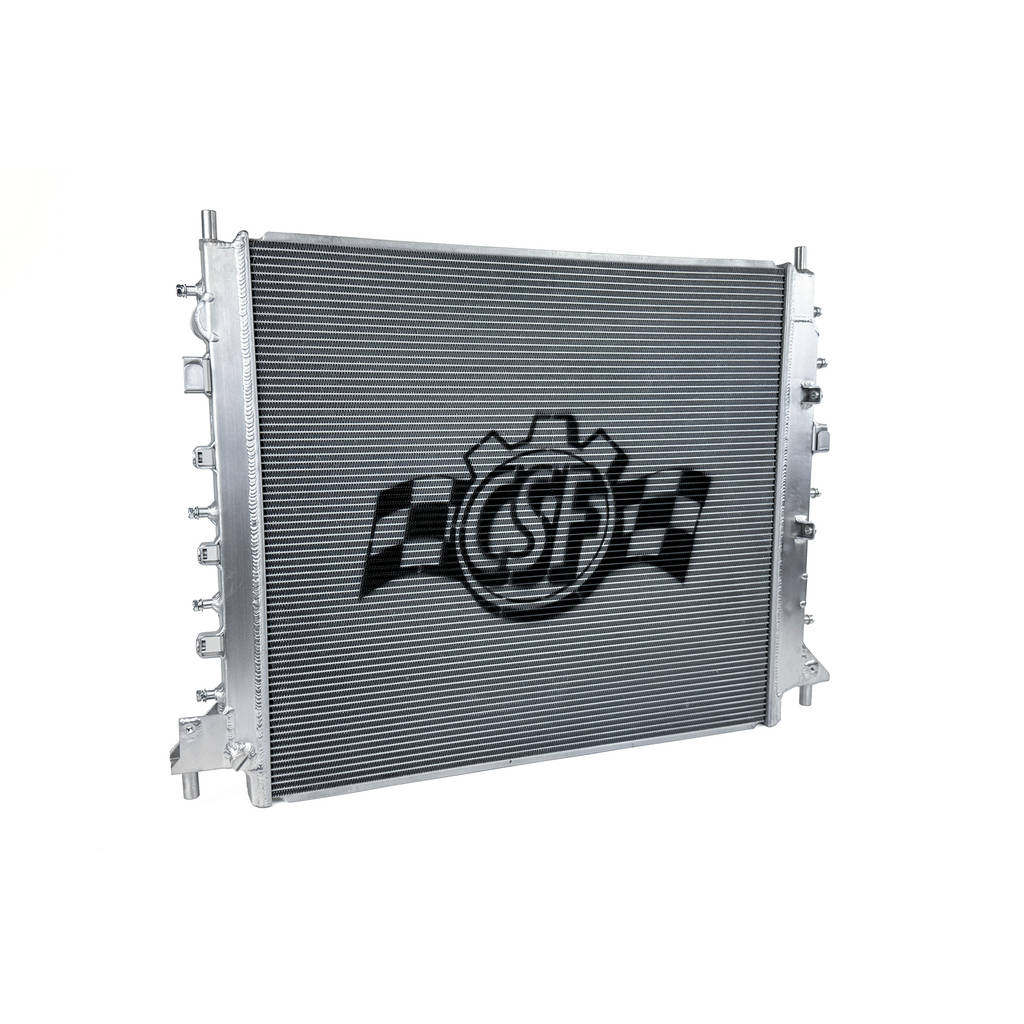

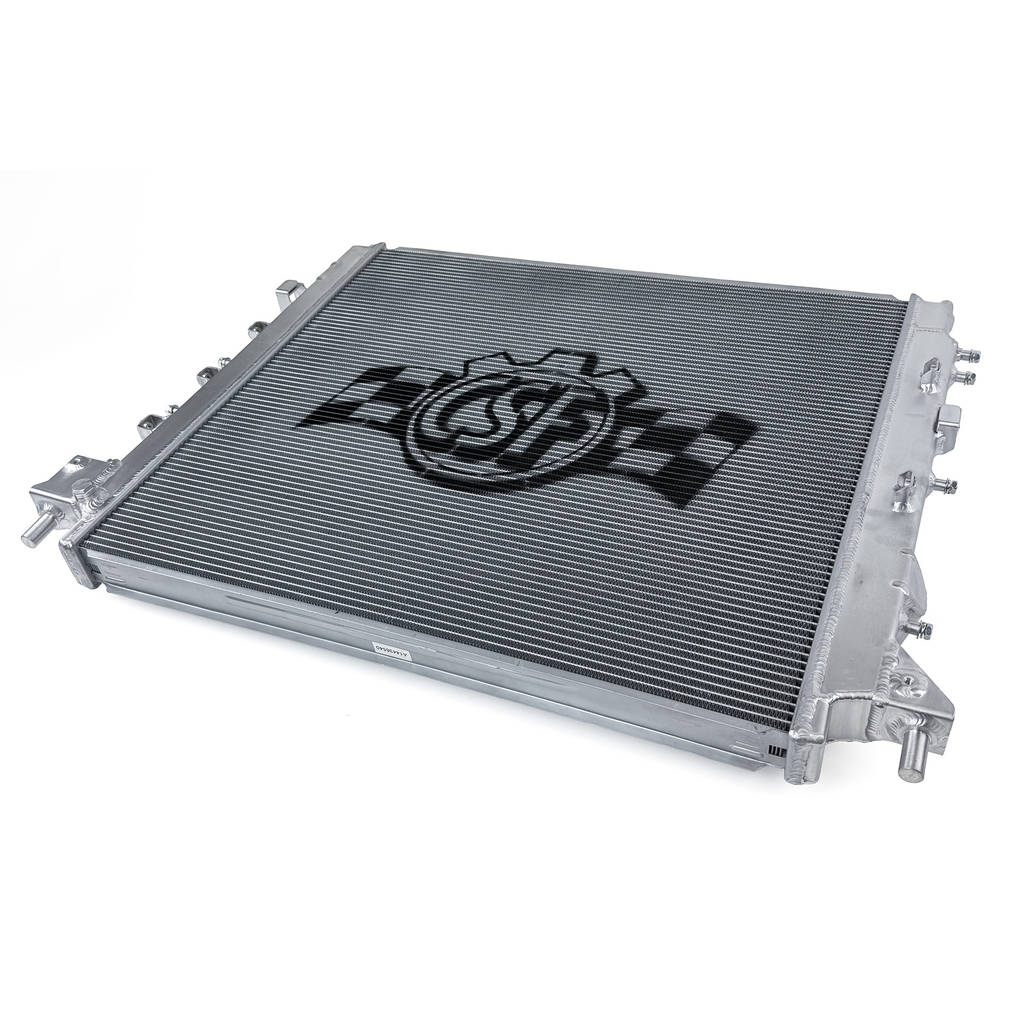

CSF 7249 High Performance Cooling Radiator for CHEVROLET Camaro AT / MT (LT1 / SS / ZL1) / CADILLAC CTS-V

Description CSF 7249 High Performance Cooling Radiator for CHEVROLET Camaro AT / MT (LT1 / SS / ZL1) / CADILLAC CTS-V

The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is 16% larger than the original GM OE radiator. This core volume difference comes from the thicker 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the core’s ability to dissipate heat.

CSF’s Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

The combination of TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions.

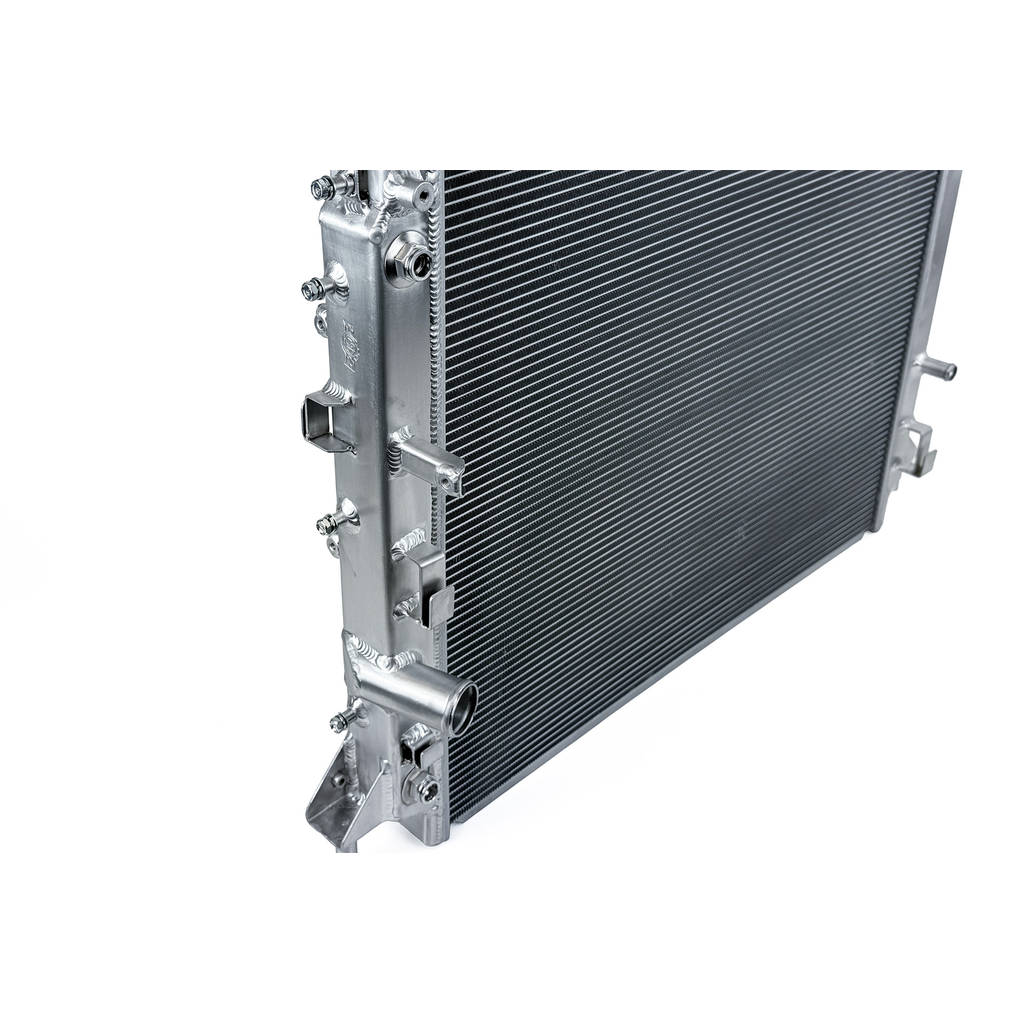

The CSF radiator also features a 4-plate transmission oil cooler built into the driver side end tank. It utilizes the OE connections for a seamless installation. It can be left disconnected for LT1 and SS models with a manual transmission. Both the ZL1 and CTS-V require this cooler.

CSF designed these Radiators to easily replace the OEM unit. The Plug-and-Play “Drop-in Fit” installation means all the factory shrouds and brackets will line up and bolt on perfectly. This includes the Engine Oil Cooler on the left-hand side as well as the A/C Condenser on the front.

Features:

• 2-Row – 42mm Ultra-High-Performance Core
• Cooling Tubes with CSF’s Exclusive B-Tube Technology
• New 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• Integrated 4-plate transmission oil cooler in the driver side tank

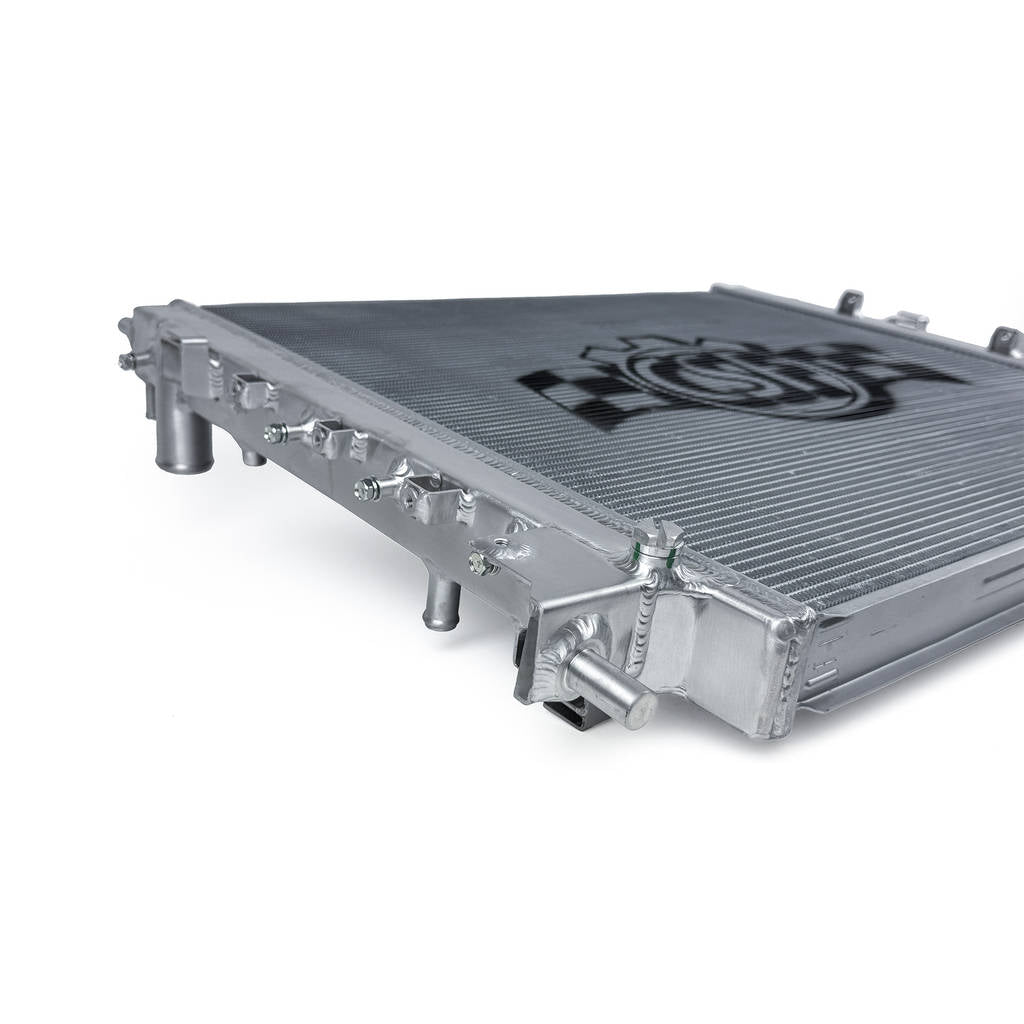

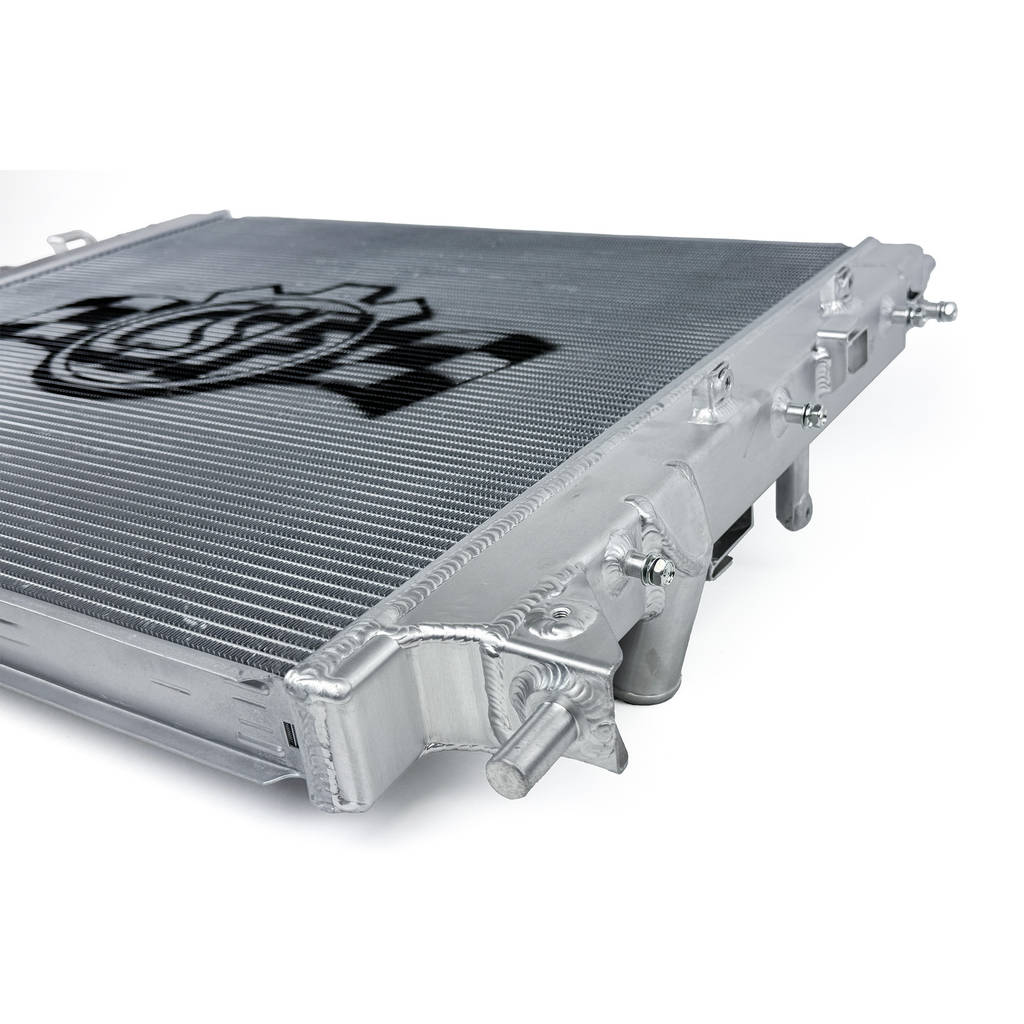

• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet Connections
• 100% All Aluminum TIG-Welded Construction
• Satin Finish
• True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2016-2024 Chevrolet Camaro AT & MT (LT1 / SS / ZL1)
• 2016-2019 Cadillac CTS-V

OEM Part Numbers:

• GM: 86551904
• GM: 86551905
