CSF 8375 High-Performance Transaxle Cooler Kit for FORD GT 2005-2006

Description CSF 8375 High-Performance Transaxle Cooler Kit for FORD GT 2005-2006

The original OE transaxle cooler worked fairly well given the design and cooler tech at the time. As usual though, there is also room for improvement for the cooler and the original lines. CSF’s Transaxle Cooler kit features a robust Bar & Plate Oil Cooler paired with laser cut mounting brackets and Motorsports grade lines with patented quick release fittings by DYME PSI.

Compared to the Ford Motorsport unit, the CSF cooler has 90% more core volume and is almost double the thickness. The line’s inner diameter has also been increased for better flow and to maximize efficiency. CSF’s “Aero-Flow” Bar Design offers the best possible heat dissipation while being lightweight, strong, and while maintaining maximum flow.

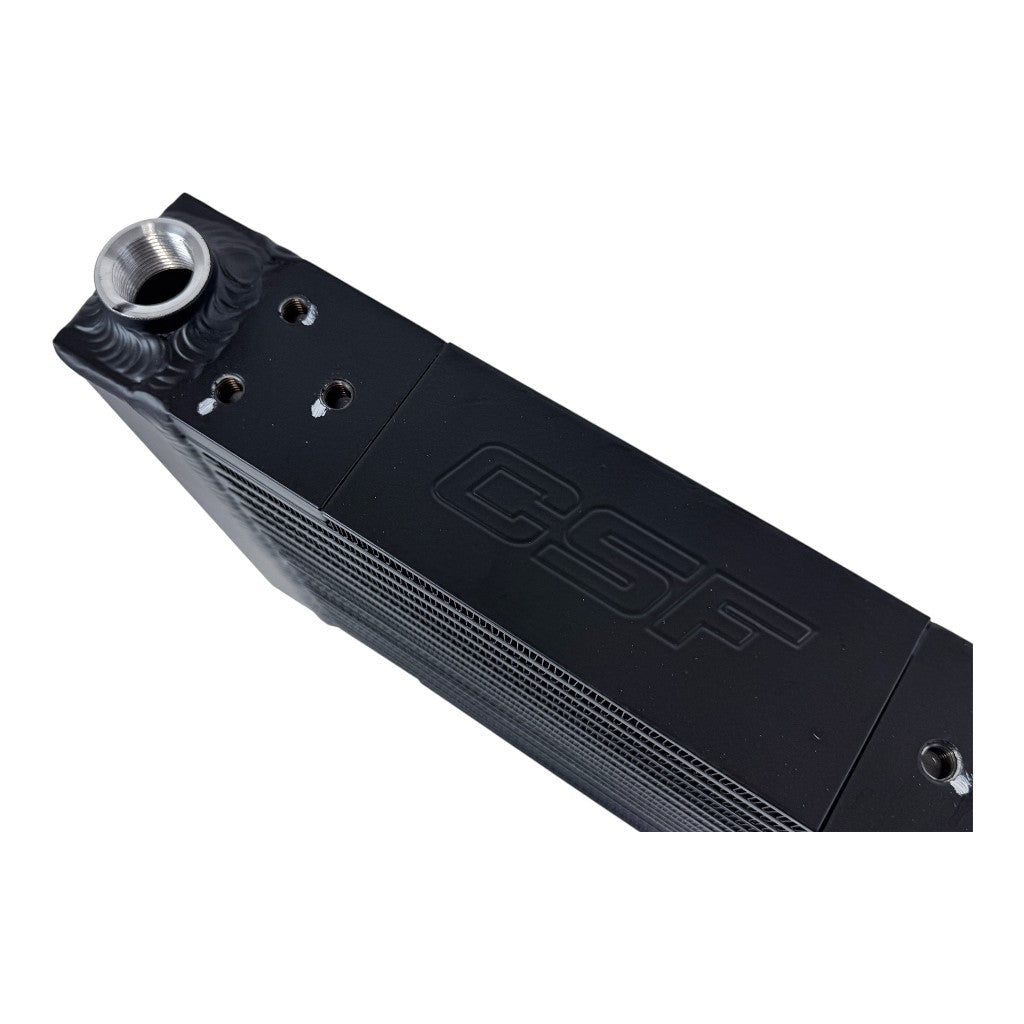

The laser cut mounting brackets bolt into the factory location requiring no modifications (drilling or cutting) to install. CSF also included pre-plugged 1/8 NPT ports on both tanks for running extra temp sensors or to use as bleeder ports. The oil cooler has a satin black finish for extreme protection against corrosion and debris.

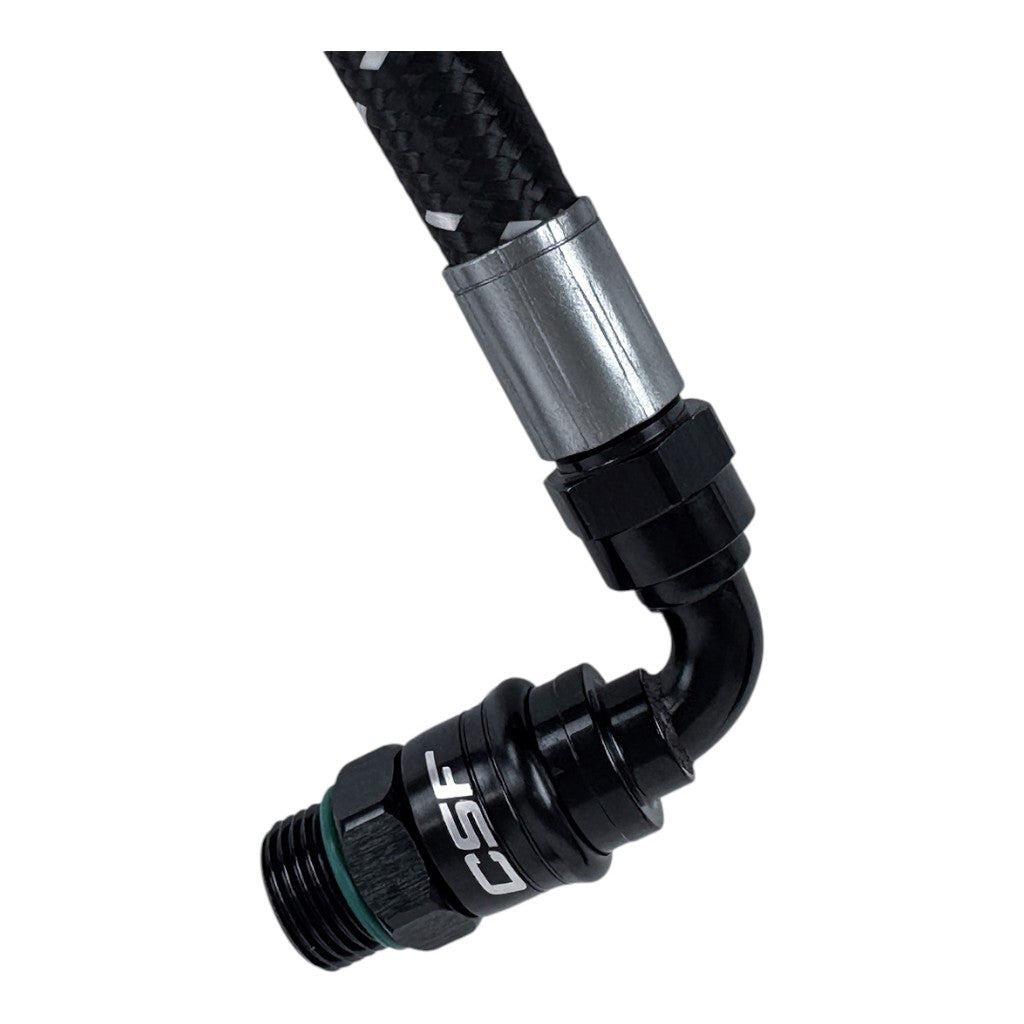

CSF partnered with DYME PSI for their exceptional quality and innovative quick-release hose and fitting solutions. The DYME Pro/Spec Quick Release Fittings offer race-proven performance with the convenience of tool-free clamshell removal and capable of withstanding up to 10,000 PSI. Quick Release fittings make the installation of the CSF kit much faster than traditional threaded fittings. In addition, they make maintenance like fluid changes much less of a headache.

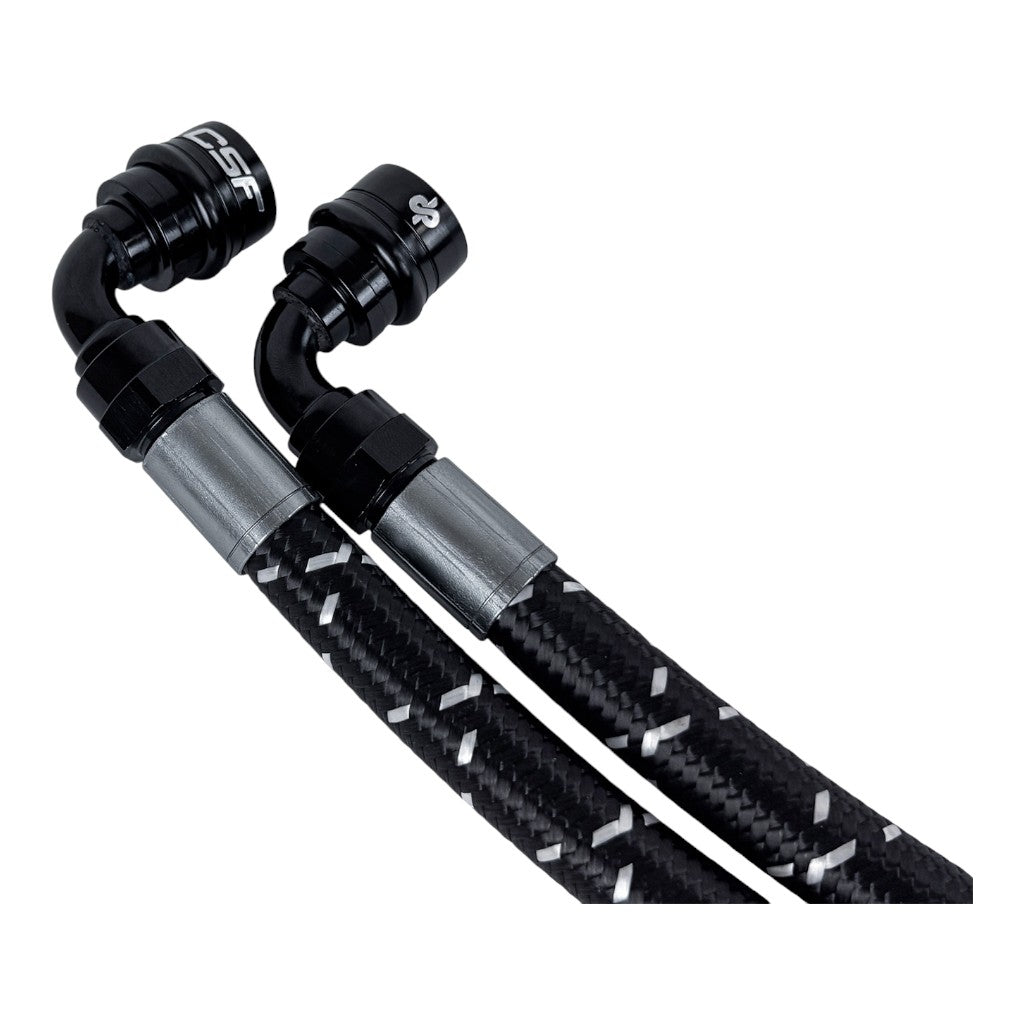

The hoses are a Superstrasse CPE lined stainless steel braided rubber hose for maximum flexibility, flow, and chemical resistance. The lines are ideal for motorsports use and more than capable of handling the most extreme conditions.

• High Efficiency & Rugged Durability 55 MM Thick Bar/Plate Design
• “Aero-Flow” Bar Lightweight Construction for Strength and Maximum Flow
• Triangular Flush Mounting Holes

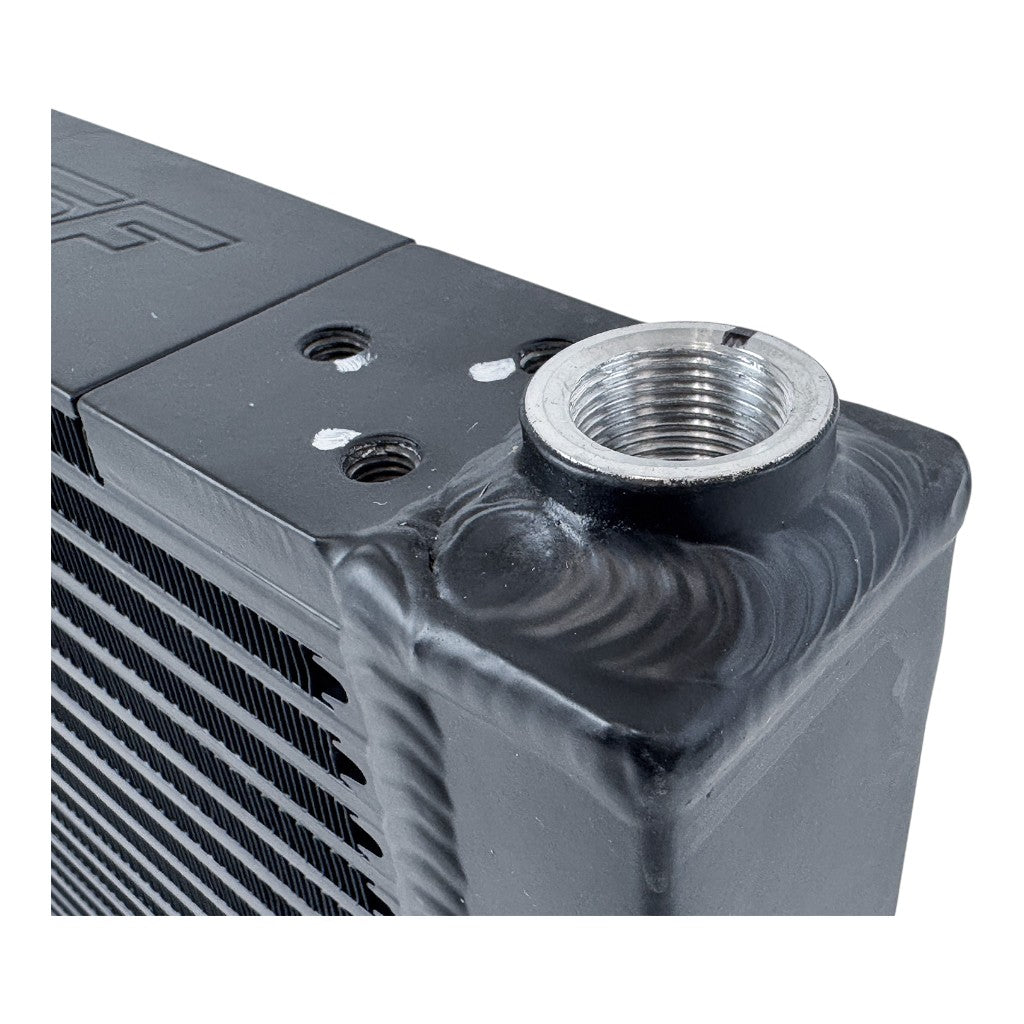

• Pre-plugged Optional 1/8th NPT Ports for Temperature Sensors
• Motorsports grade lines with patented quick release fittings by DYME PSI

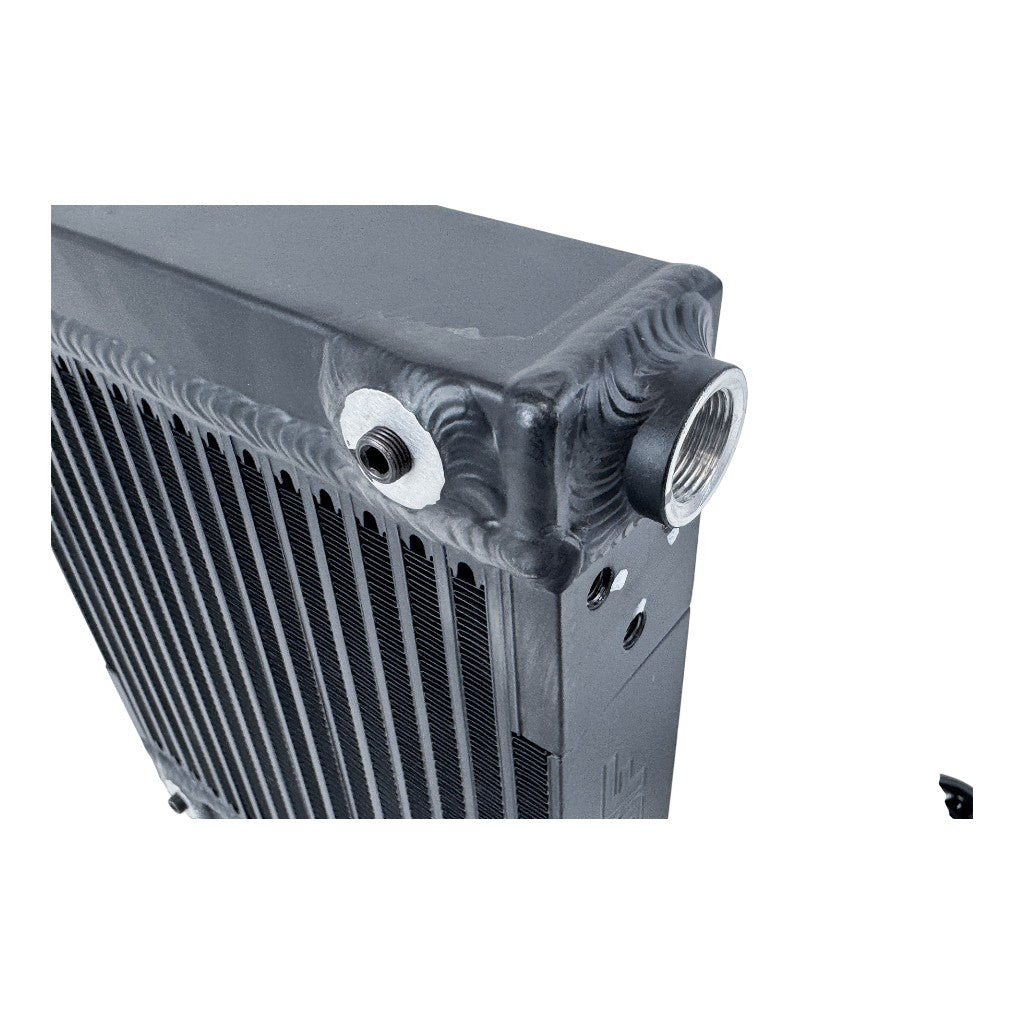

• Extruded End Tanks with 100% TIG-Welded Construction

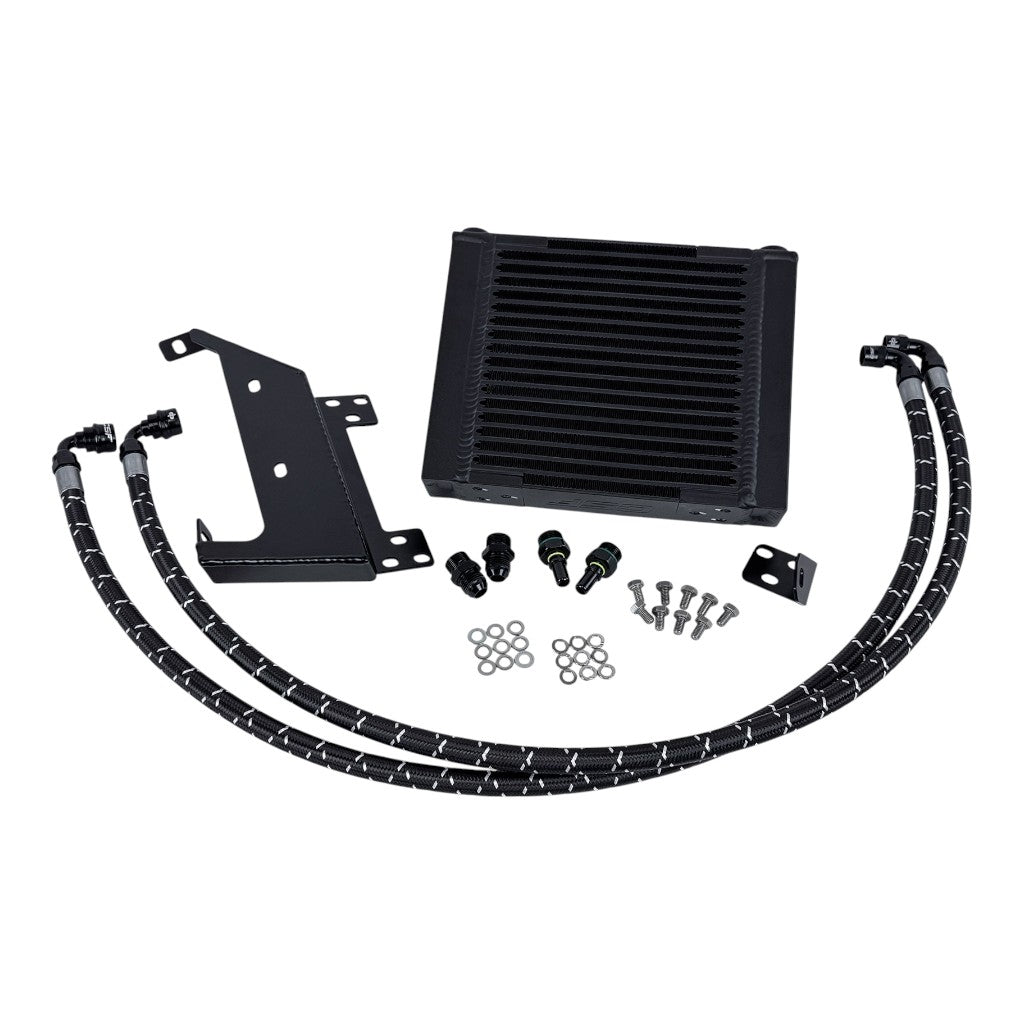

• Includes laser cut mounting brackets and line clips
• Machined hard plastic low profile clamshell guide to allow for the larger cooler
• True Plug-and-Play “Drop-in Fit” Installation Requires No Modifications
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty

Applications:

• 2005-2006 Ford GT

OEM Part Numbers:

• Ford: 4G7Z-7A095-BA
