CUSCO 1C8 64X CP Coilover Kit SPORT X for TOYOTA GR YARIS (GXPA16) 2024
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
CUSCO 1C8 64X CP Coilover Kit SPORT X for TOYOTA GR YARIS (GXPA16) 2024
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description CUSCO 1C8 64X CP Coilover Kit SPORT X for TOYOTA GR YARIS (GXPA16) 2024
CUSCO 1C8 64X CP SPORT X Coiloverkit suspension kit consists of front desk and rear desk. Front desk: Camber Adjustable Pillow Ball upper mount,damping force adjustment Dial pressure side: Low-speed 24-step adjustment/high-speed 24-step adjustment,knuckle Bracket -Camber Adjustment color. Rear desk:PPillow ball upper mount / damping force adjustment Dial extension side: 24 steps adjustment,damping force adjustment Dial pressure side: Low-speed 24-step adjustment / high-speed 24-step adjustment.
CUSCO 1C8 64X CP Coiloverkit suspension kit SPORT X:
- High rigidity single-cylinder shock for full-scale race, time attack, and competition.

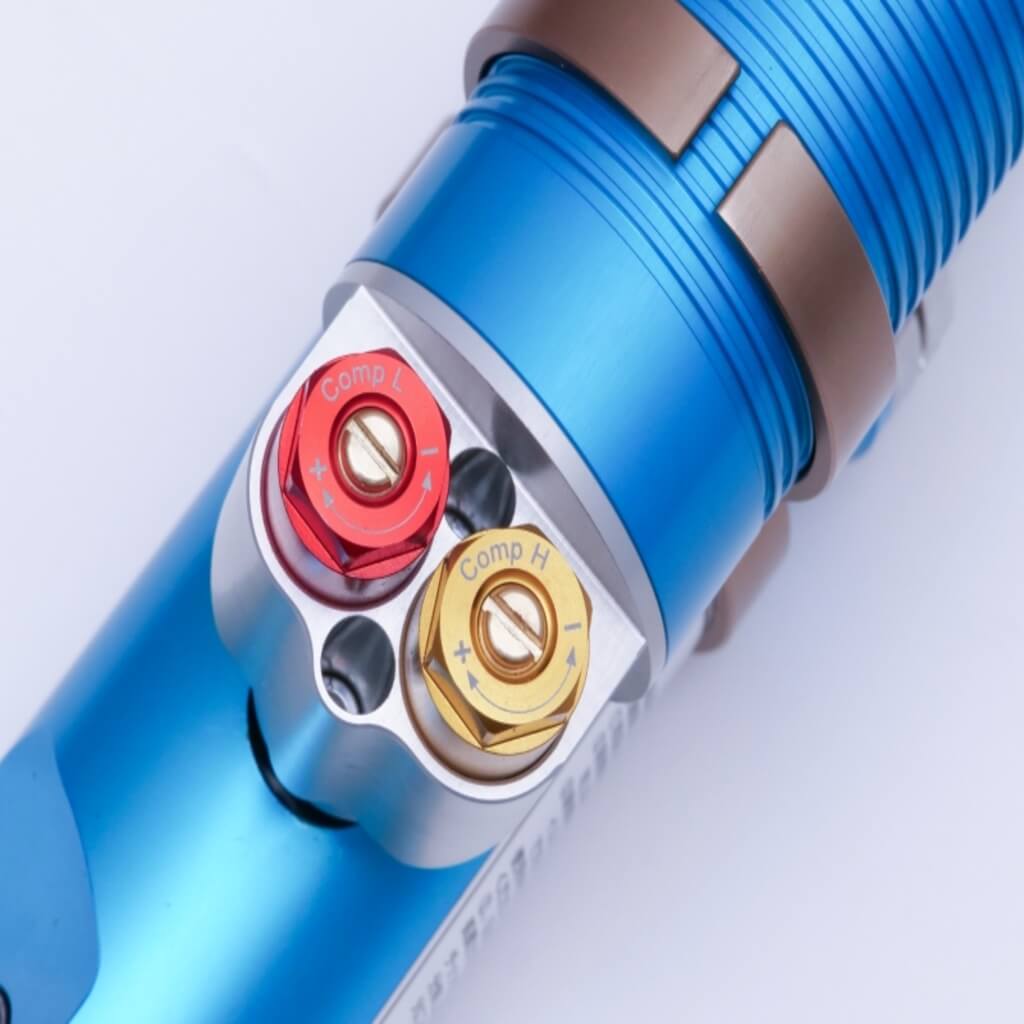

- 3Way damping force adjustment to enable precise setting: Stretch side: 24 steps adjustment, pressure side: Low-speed 24-step adjustment, high-speed 24-step adjustment.
- S tire correspondence, full specifications for seriously shaving time.
- High strength and durability “Blue Spring” as standard equipment.
- Full length adjustment type car height adjustment.
- Warranty of 1 year or 10,000km (according to CUSCO guarantee regulation).
Specifications:
- Vehicle height adjustment.Front: Full length adjustment type,Rear: Screw spacer adjustable.
- Damping force adjustment: Front/rear, Stretch side: 24 steps adjustment, Pressure side: Low-speed 24-step adjustment, high-speed 24-step adjustment.
- Upper mount. Front: Camber adjustable pillow ball upper mount,rear: Pillow ball upper mount.
- Standard spring: Front: 11 kgf/mm (065-180-11E),rear: 14 kgf/mm (065-200-14E).
- Optional rate Spring: Front: 9,10,12,14,16 kgf/mm, Rear: 10,11,12,16,18 kgf/mm.
- Recommended car high adjustment width: Front desk: -45~ -10mm, rear: -50 to -20 mm.
- Reference vehicle height:Front: -30mm, Rear: -30mm.
- Maximum car height adjustment width: Front desk: -45~0mm,Rear: -75~ -20mm.
- Front camber adjustment: Camber adjustment is possible with upper mount and knuckle bracket Camber adjustment color.
- Overhaul, damping force and stroke changeable is possible for surcharge.
