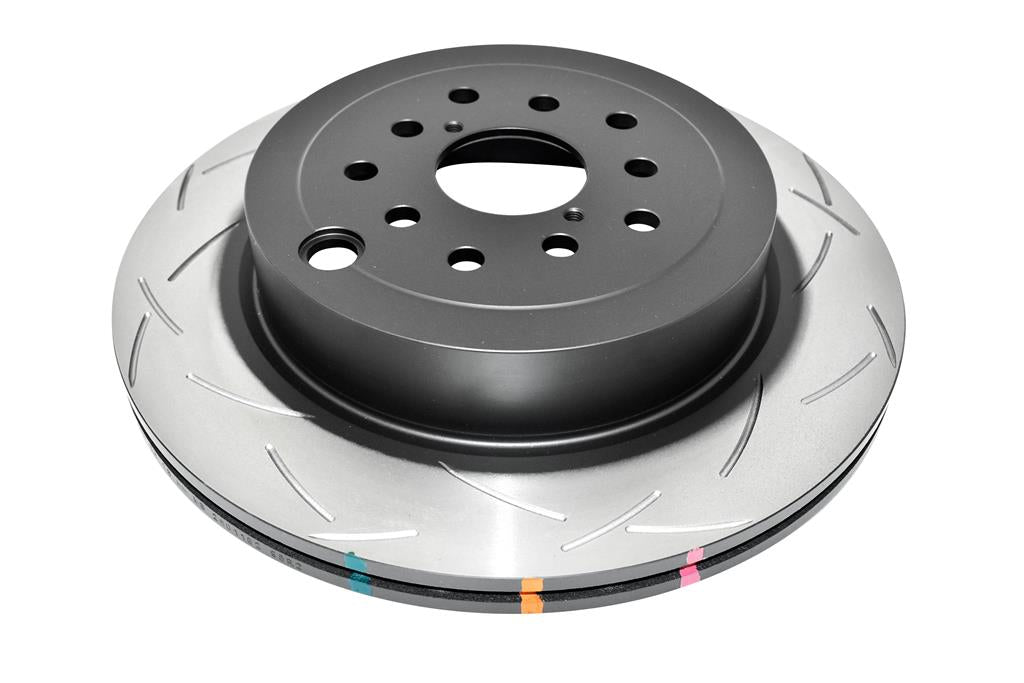

DBA 42656S-10 Brake Disc Rear for SUBARU WRX STi 2012-2017

48 Precision CNC Machined Slots

Tri-symmetrical curved slots dampen vibration harmonics and noise, resulting in a smoother, quieter, more responsive brake pedal feel. Excellent pad friction escape from additional slots. Universal design eliminates the need for left and right discs.

DBA Patented ‘Kangaroo Paw’ Ventilation Design

DBA’s unique ventilation pillar design has an increased surface area over competitor discs, meaning better heat dissipation, less brake fade and more effective braking. This in turn increases disc and pad life, lessening your maintenance costs & frequency.

XG150 High Carbon Alloyed Iron Disc Material

DBA discs use a specially formulated material to withstand constant extreme temperatures, time and time again. This minimises disc damage due to heat and prolongs the disc life overall.

Thermographic Temperature Monitoring

Heat paint markings change colour to indicate brake temperatures. When temperature thresholds have been exceeded the markings change colour permanently, allowing the driver to monitor disc fatigue & decide on replacement discs.

Paint Protection for Non-friction Surfaces

Mounting and other non-friction surfaces are painted with high-temperature black paint, preventing corrosion and enhancing the appearance of your brake setup.

Specifications:

• Diameter [mm]: 316
• Disc Vent: Kangaroo Paw
• Number of Holes: 10
• Inner Diameter [mm]: 58
• Minimum Thickness [mm]: 18
• Thickness [mm]: 20
• Height [mm]: 63.5
• Pitch Circle [mm]: 100 & 114.3
• Stage: Stage 4
• Axle: Rear
• Weight [kg]: 7.8
