DBA 42660S Front Brake Disc 4000 Series T3 for SUBARU Legacy / Liberty VI (BN) / Levorg I (VM) / Outback V (BS)

Description DBA 42660S Front Brake Disc 4000 Series T3 for SUBARU Legacy / Liberty VI (BN) / Levorg I (VM) / Outback V (BS)

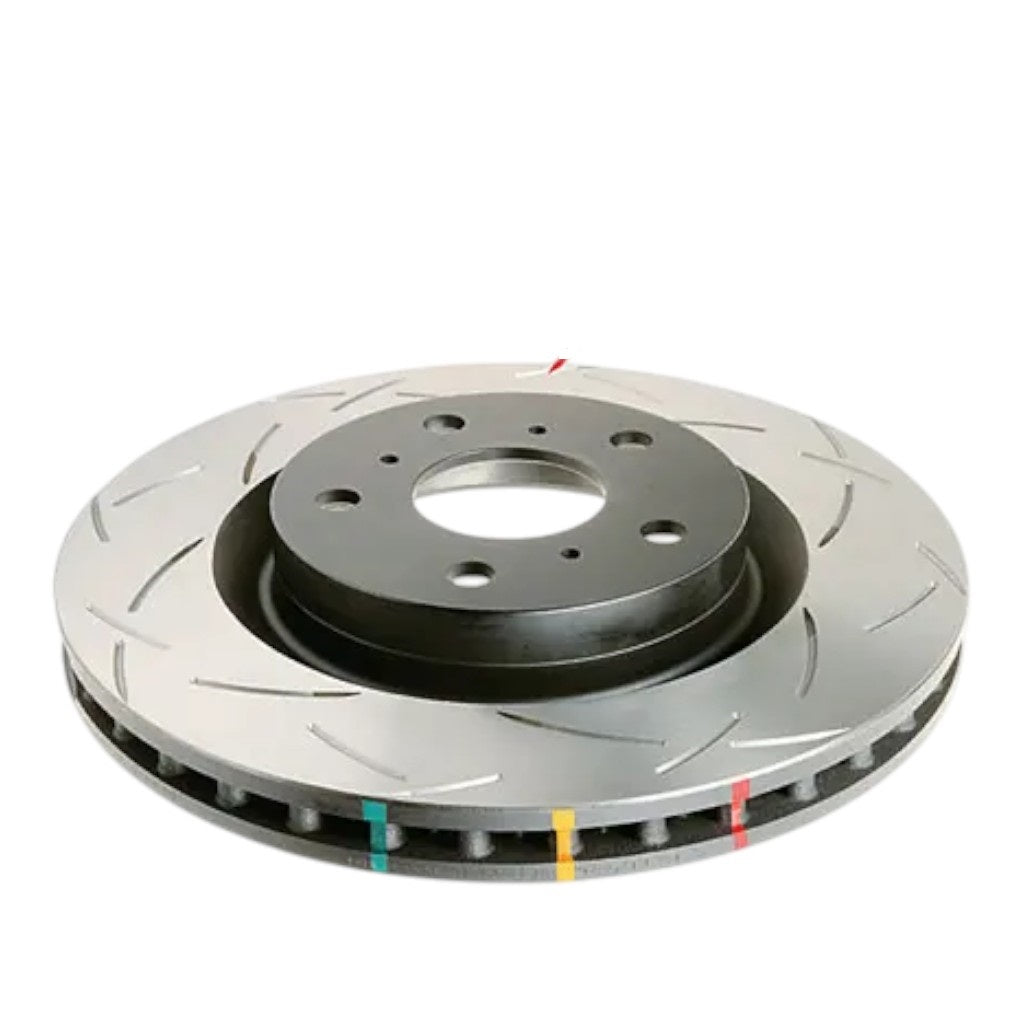

The DBA 42660S Brake Disc 4000 Series T3 is a high-performance brake disc for SUBARU Legacy / Liberty VI (BN) / Levorg I (VM) and Outback V (BS). It combines DBA’s patented T3 bi-directional slot design, Thermal Stability Profiling, high machining quality, and XG150 high carbon alloyed iron construction.

The brake disc features a Kangaroo Paw ventilation system with 144 diamond and tear drop pillars for improved heat dissipation. Thermographic Temperature Monitoring markings provide a visual indication of peak braking temperatures, while paint protection on non-friction areas helps reduce corrosion.

• DBA 4000 Series T3 brake disc for high-performance applications
• Patented T3 bi-directional slot design with 48 precision CNC-machined slots
• Kangaroo Paw ventilation system for increased heat dissipation
• XG150 high carbon alloyed iron construction
• Thermal Stability Profiling to reduce warping and cracking
• Thermographic Temperature Monitoring for visual temperature tracking
• Paint protection on non-friction areas to reduce corrosion

Specifications:

• Reference Code: BA42660S
• Series: 4000
• Design: T3
• Position: Front
• Diameter: 293,5 mm
• Disc Vent: Kangaroo Paw
• Number of Holes: 5
• Inner Diameter: 58.00 mm
• Minimum Thickness: 26 mm
• Thickness: 28 mm
• Height: 56.70 mm
• Stage: Stage 4
• Total Weight: 8.86 kg
• Material: XG150 high carbon alloyed iron
• Technology: Thermal Stability Profiling; Thermographic Temperature Monitoring; paint protection on non-friction areas
