DBA 42662S Rear Brake Disc 4000 Series T3 for SUBARU Levorg I (VM) / Outback V (BS)

Description DBA 42662S Rear Brake Disc 4000 Series T3 for SUBARU Levorg I (VM) / Outback V (BS)

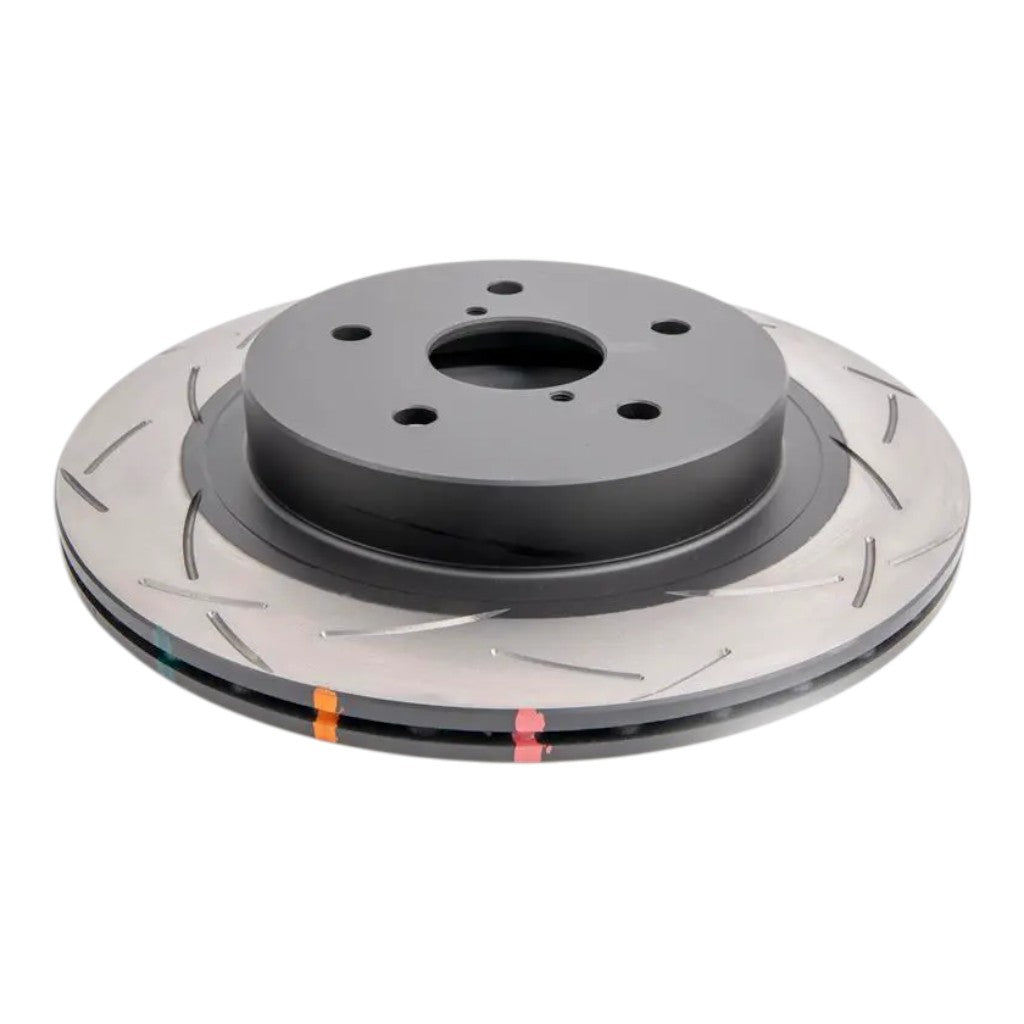

The DBA 42662S Brake Disc 4000 Series T3 is a high-performance rear brake disc for SUBARU Levorg I VM and SUBARU Outback V BS applications. It combines DBA’s patented T3 bi-directional slot design, Thermal Stability Profiling, high machining quality, and XG150 high carbon alloyed iron construction.

The brake disc features a Kangaroo Paw ventilation system with 144 diamond and tear drop pillars for improved heat dissipation. Thermographic Temperature Monitoring markings provide a visual indication of peak braking temperatures, while paint protection on non-friction areas helps reduce corrosion.

• DBA 4000 Series T3 rear brake disc for high-performance applications
• Patented T3 bi-directional slot design with 48 precision CNC-machined slots
• Kangaroo Paw ventilation system for increased heat dissipation
• XG150 high carbon alloyed iron construction
• Thermal Stability Profiling to reduce warping and cracking
• Thermographic Temperature Monitoring for visual temperature tracking
• Paint protection on non-friction areas to reduce corrosion

Specifications:

• Reference Code: DBA42662S
• Series: 4000
• Design: T3
• Position: Rear
• Diameter: 300 mm
• Disc Vent: Kangaroo Paw
• Number of Holes: 5
• Inner Diameter: 58.00 mm
• Minimum Thickness: 15 mm
• Thickness: 17 mm
• Height: 46.40 mm
• Stage: Stage 4
• Total Weight: 6.5 kg
• Material: XG150 high carbon alloyed iron
• Technology: Thermal Stability Profiling; Thermographic Temperature Monitoring; paint protection on non-friction areas
