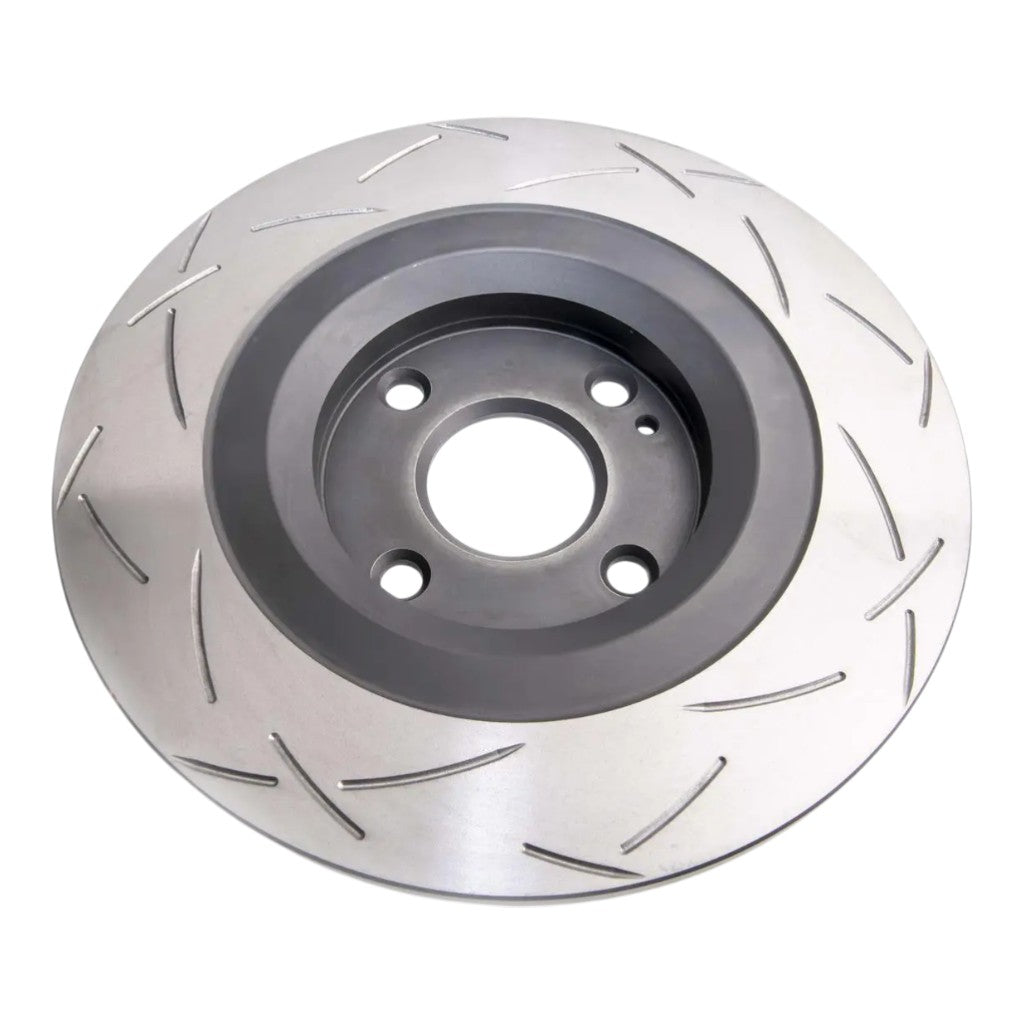

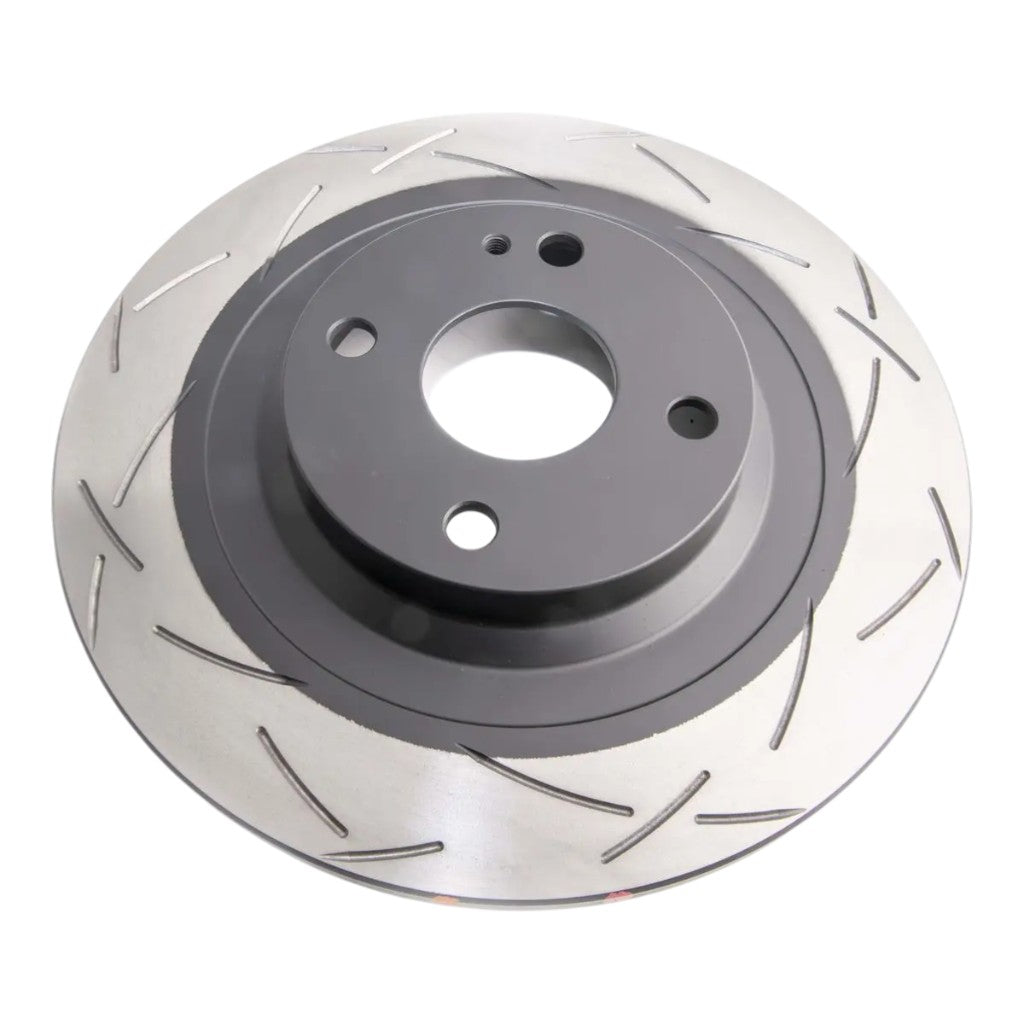

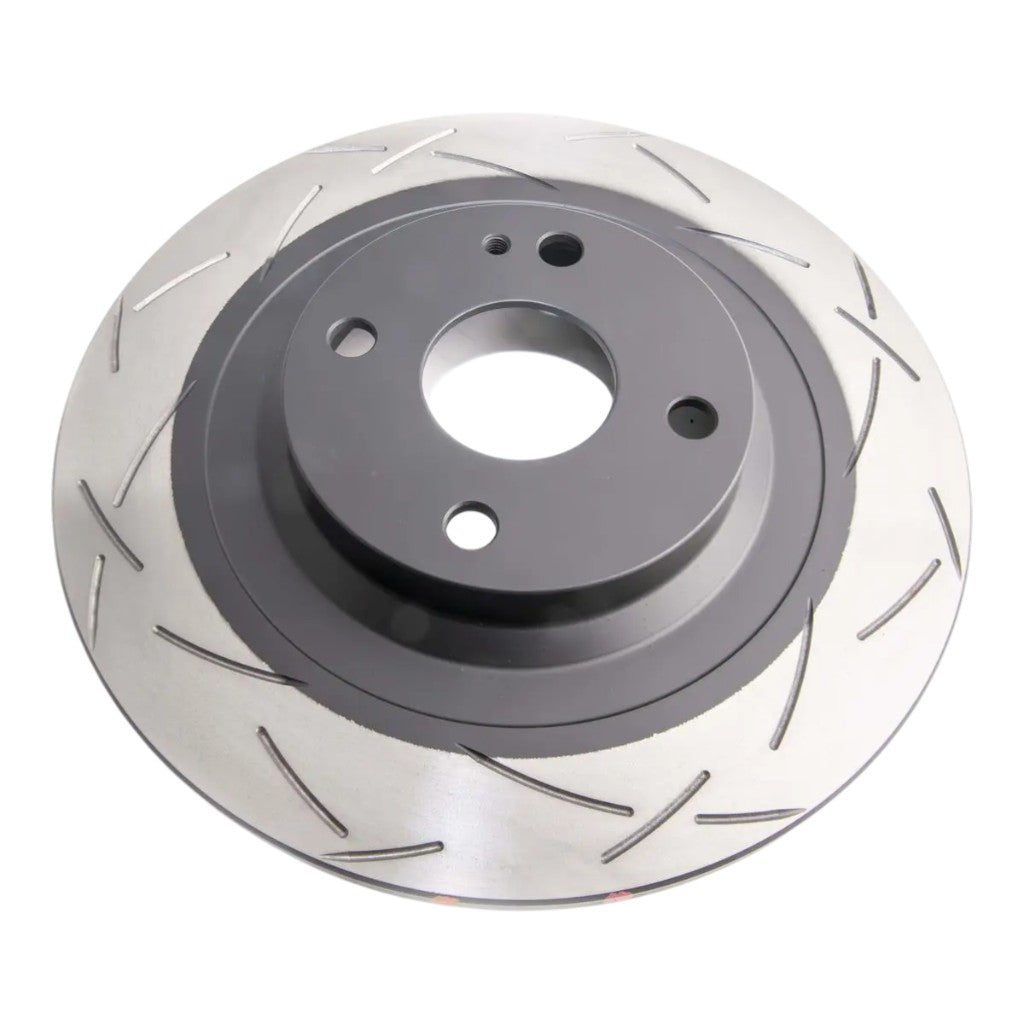

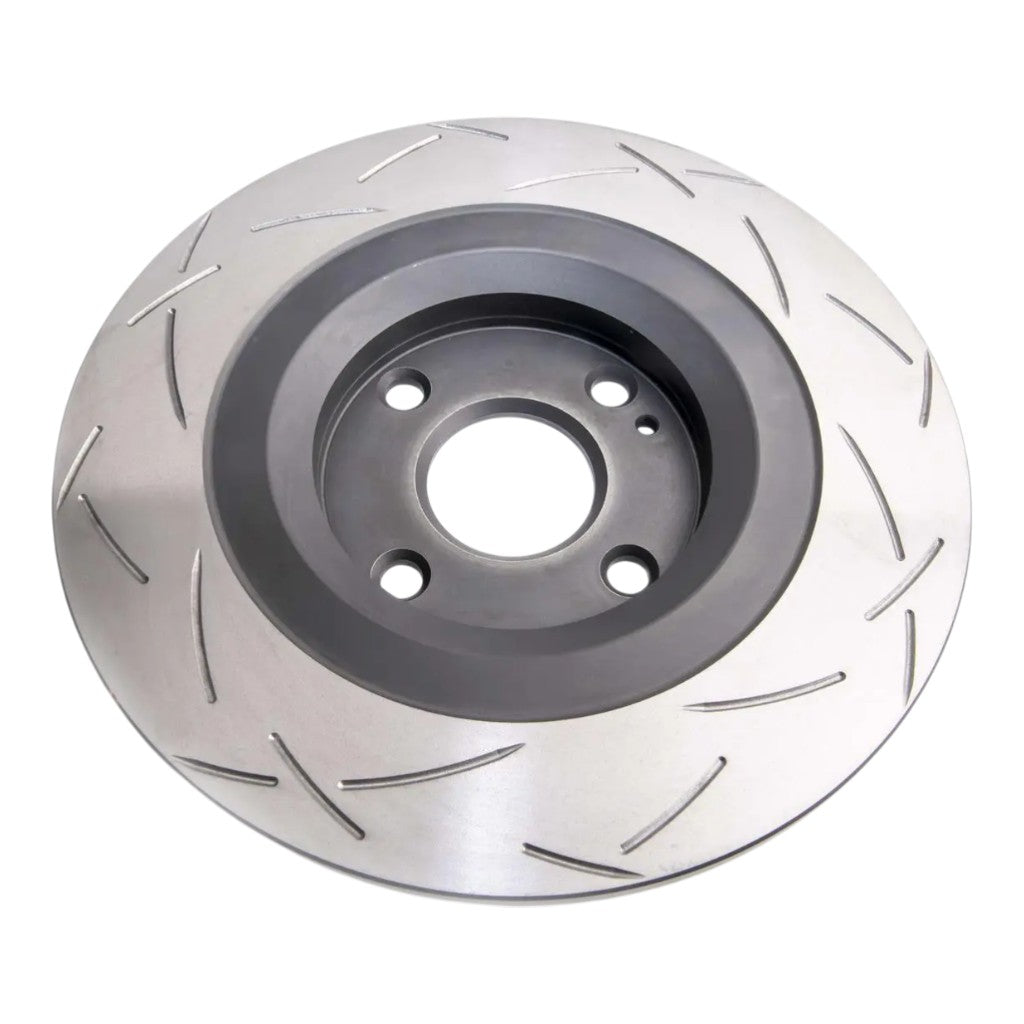

DBA 42965S Brake Disc T3 4000 Series for ABARTH 124 Spider (348) / FIAT 124 Spider (348) / MAZDA MX-5 (ND / ND2 / Mk4) / MAZDA MX-5 RF (ND / ND2)

Description DBA 42965S Brake Disc T3 4000 Series for ABARTH 124 Spider (348) / FIAT 124 Spider (348) / MAZDA MX-5 (ND / ND2 / Mk4)  / MAZDA MX-5 RF (ND / ND2)

The DBA 42965S T3 brake disc from the 4000 Series is engineered for high-performance street and spirited driving applications. Designed for selected ABARTH, FIAT, and MAZDA models, this Stage 4 rotor combines advanced slot technology, high carbon alloyed iron construction, and enhanced thermal management systems to ensure consistent braking performance under demanding conditions.

Featuring DBA’s T3 tri-symmetrical slot design and Kangaroo Paw ventilation system, the disc improves heat dissipation, reduces vibration harmonics, and enhances pedal feel. The universal slot configuration eliminates the need for left and right specific discs. One box contains one disc for either the left or right side of the axle.

• T3 48 precision CNC-machined tri-symmetrical slots
• Kangaroo Paw 144 diamond and tear drop pillar ventilation system
• XG150 high carbon alloyed iron construction
• Thermal Stability Profiling (DBA_TSP)
• Thermographic Temperature Monitoring (DBA_TTM)
• Universal slot design (no left/right specific disc required)
• Paint protection on non-friction areas to reduce corrosion
• ECE R90 approved

Specifications:

• Series: 4000 Series – T3
• Stage: Stage 4
• Disc Type: Solid
• Disc Diameter: 280 mm
• Disc Thickness: 9.5 mm
• Minimum Thickness: 8 mm
• Height: 35.6 mm
• Number of Holes: 4
• Inner Diameter: 55 mm
• ECE R90 Number: E11 90R-02C01704/72742
• Total Weight: 3.5 kg
