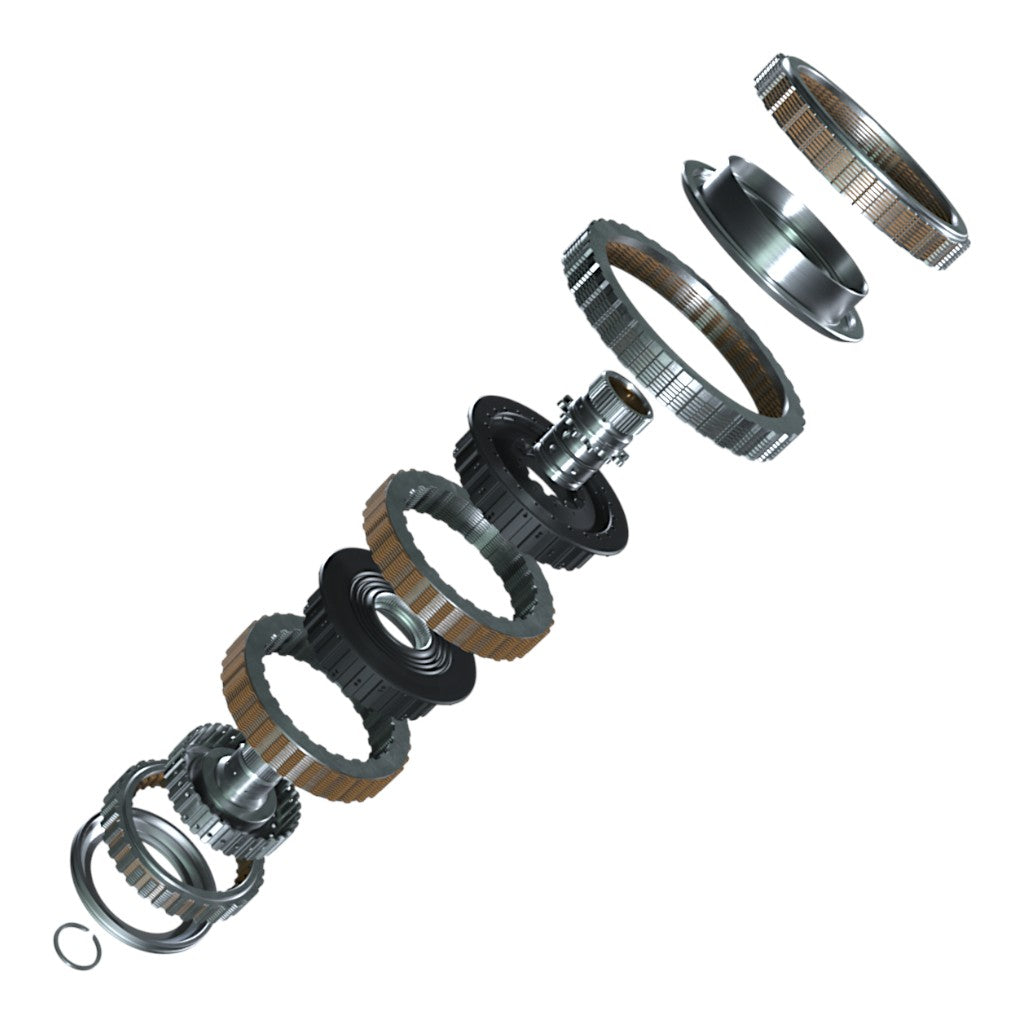

DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox Photo-0

DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox

€8.180,14

VAT included. Shipping calculated at checkout

DODSON P/N: DMS-8688
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description DODSON DMS-8688 Clutch Kit PROMAX for ZF 8HP76 Gearbox

High-performance friction material and precision-manufactured steel discs.

Separator springs added to the hard-working C and E clutches minimize hub chatter, especially when paired with hard-anodized hubs. These springs reduce drag and improve crossover performance, eliminating the usual downsides of increased plate counts, such as jerky behavior, multiple learning attempts, or chattery take-off performance.

The patent-pending steel-core splined hub design with an aluminum outer provides the strength of a steel hub without transmission-upsetting inertia. The hard-anodized outers resist chatter and feature additional oiling holes to optimize oil flow and temperature control for the denser clutch stacks.

Specifications:

  • Clutch A: 8 plates (+3)
  • Clutch B: 7 plates (+2)
  • Clutch C: 12 plates (+6)
  • Clutch D: 8 plates (+4)
  • Clutch E: 11 plates (+6)
  • Horsepower / HP: Over 1700 HP

Kit comes with:

  • C Hub featuring aerospace-grade billet aluminum, hard-anodized to minimize wear, with enhanced oiling passages
  • Additional friction materials and steels over the Sportsman’s Plus
  • Billet end plates
  • Upgraded billet pistons
