EVENTURI EVE-A90B48-INT TOYOTA MK5 2.0 B48 Supra Carbon Intake

Fitment for the MKV Supra 2.0 B48

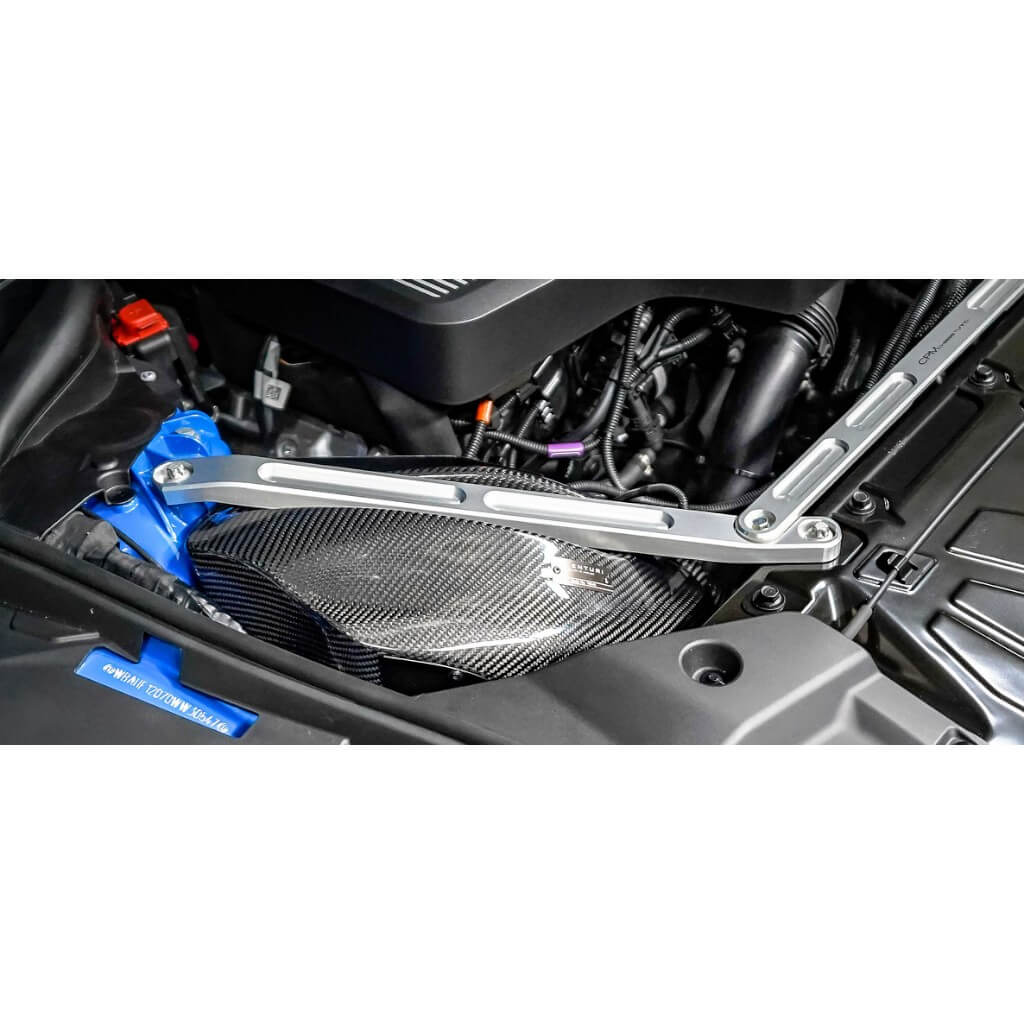

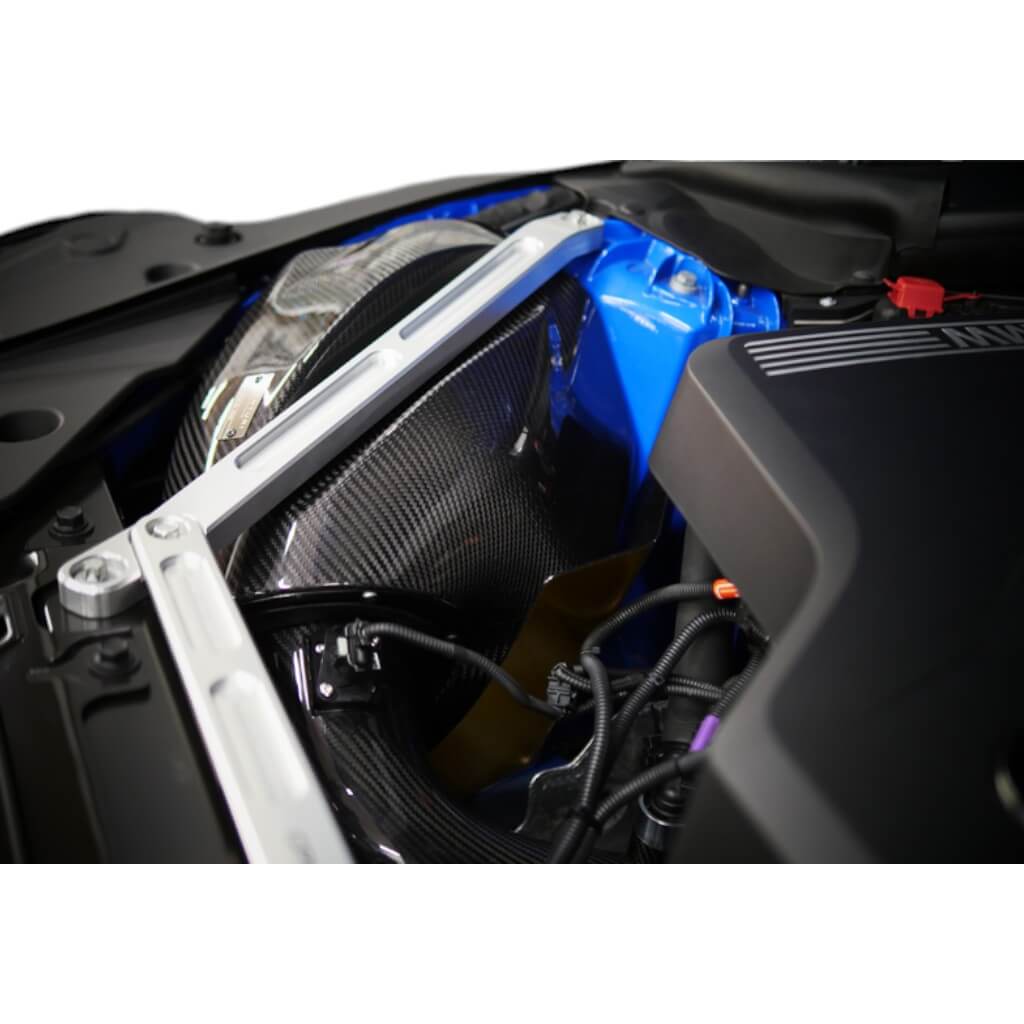

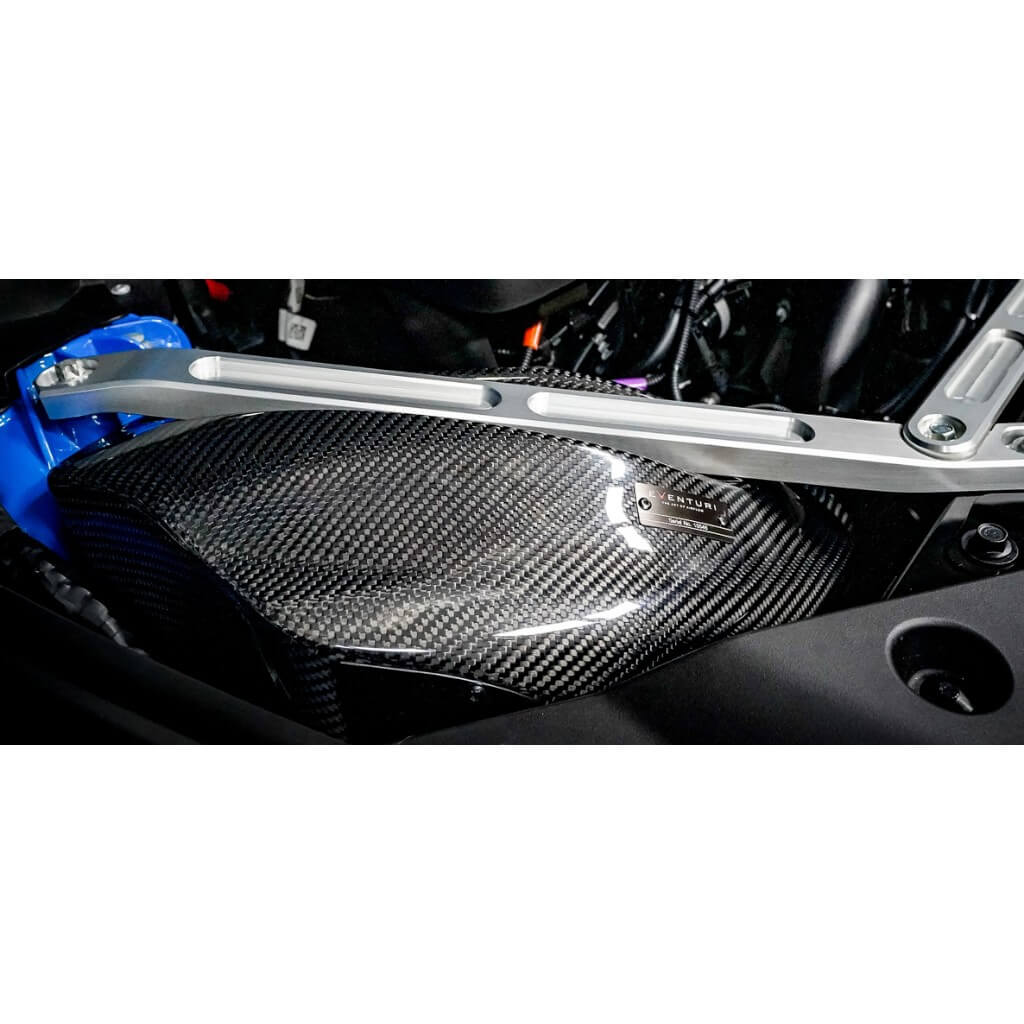

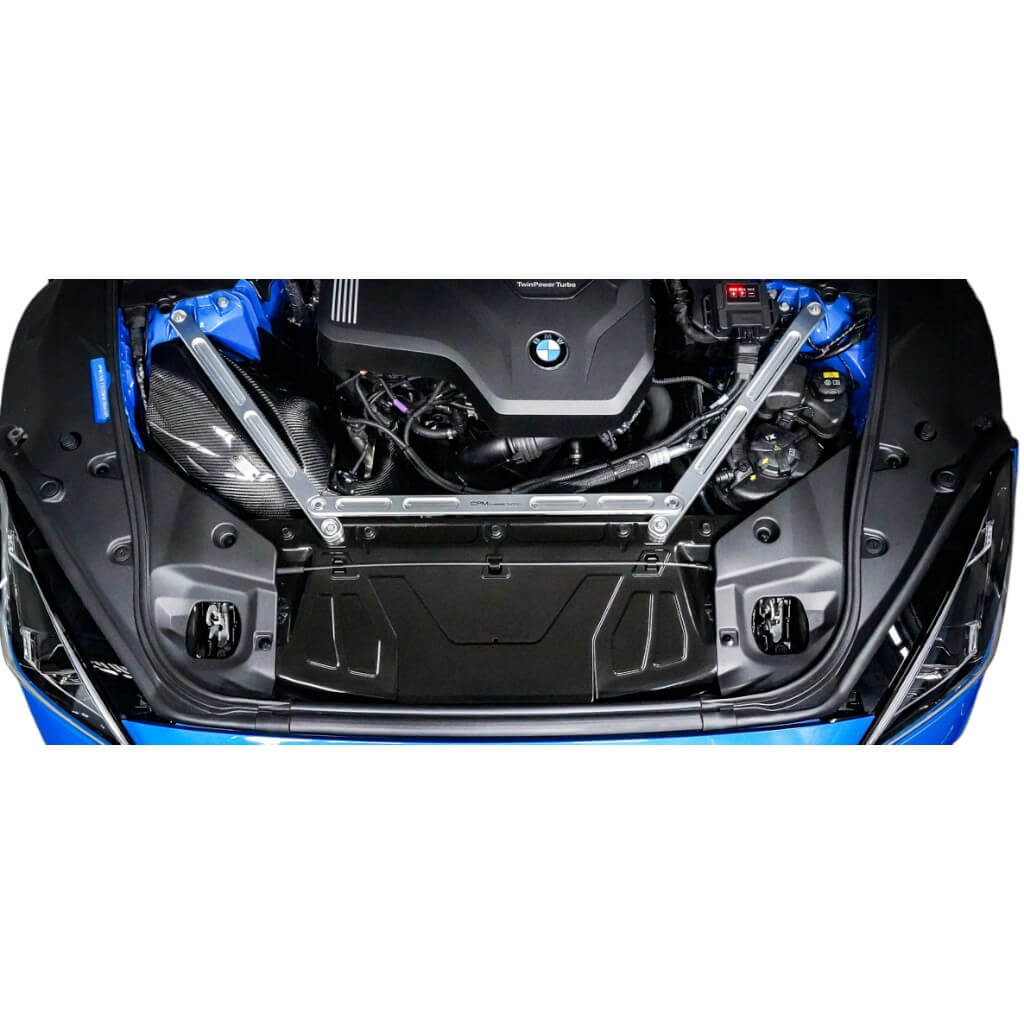

Images show intake fitted to a BMW Z4 B48

The MK5 Supra Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures. Heat and Volume are the main considerations when designing an intake for turbocharged engines. In the Supra, the intake system is located next to the exhaust manifold which rapidly heat soaks the engine bay. High temperatures are detrimental for engine performance as the turbo would have to build boost with heated, less dense air and so the only way to ensure IAT’s are kept to a minimum is for a fully sealed intake. This however, results in a restriction with only one stock air feed to draw air in from.

During development we noticed an additional opening into the wheel arch area and took advantage of this by adding a secondary feed to our airbox. Furthermore our sealed airbox also has a heat shield with gold reflective to minimize the radiative heat transfer from the exhaust manifold. In order to maximize volume we made the airbox as large as possible with a recess for potential strut braces. The stock convoluted intake tube is replaced with a smooth carbon tube which is also larger in internal volume with a starting internal diameter of 111mm (4.4″) smoothly tapering down to match the turbo inlet. The tube provides a smooth path from the filter to the turbo inlet. Finally we use a custom made high-flow dry filter which is ISO tested for filtration performance and has a larger filtration area than the stock filter.

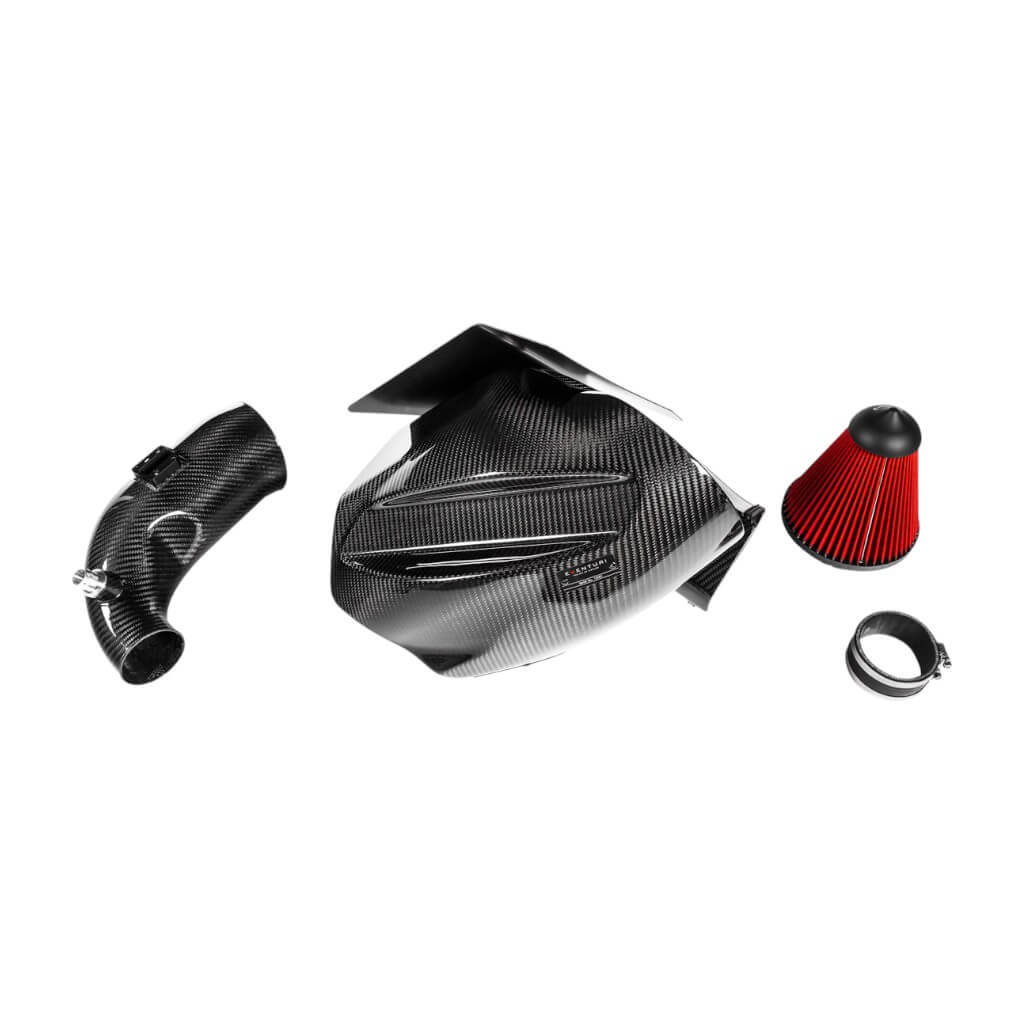

Each intake system consists of:

Carbon Fiber Airbox with Dual Feeds
Bespoke High Flow Dry Cone Filter
Carbon Fiber Inlet Tube with 111mm opening ID
CNC Machined Temperature Sensor Mount
CNC Machined Breather adapter
Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel Brackets
Silicon Coupler with OEM Specification Clamps
