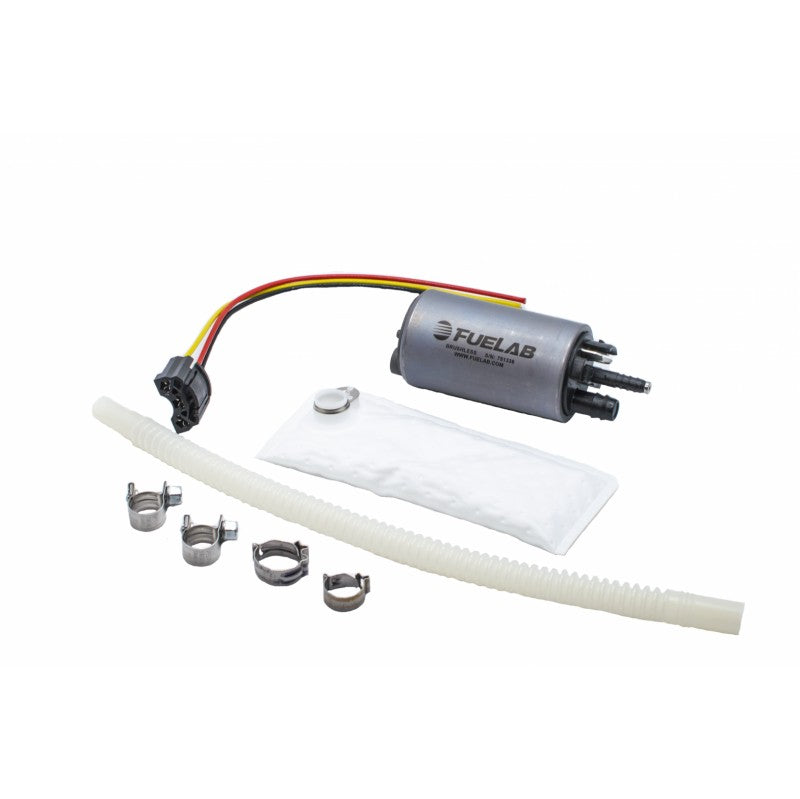

FUELAB 49614 In-Tank Brushless Fuel Pump (500 LPH @ 3 BAR, 8.6 BAR max) with 9 mm Barb Outlet 6mm Barb Siphon
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
EXTERNAL BRUSHLESS PUMP CONTROLLER REQUIRED
The FUELAB 496 Series brings high flow brushless technology in a compact size into the fuel tank. Designed for high flow, high pressure applications, these 350lph and 500lph aftermarket pumps are easily retro fitted into an OE pump module. Offered as a stand-alone unit or in a universal install kit, these pumps make going brushless easier than ever!
Pump Features
- Flows 500LPH @ 3bar, 13.5v (132 GPH @ 45psi)
- Compatible with gas, E85 and Methanol
- Maximum Pressure – 8.6 Bar (125psi)
- Can be used in carbureted and EFI applications
- Each fuel pump is individually tested for performance and includes flow and current draw report
- Backed by a Limited Lifetime Warranty
Construction Features
- Comes with 9mm barb Outlet, 6mm barb siphon
- 41.5mm Diameter
- Weighs 11.5oz
- Designed for in-tank use only
- Sending Unit not included
- Comes with pre-filter and wire lead harness
For control options, check these out:
- FUELAB 72001 Full Speed
- FUELAB 72002 PWM Input Signal
- FUELAB 72003 0-5v Input Signal
