GARRETT 451888-5011S CHRA Garrett Cartridge GT4202R
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 451888-5011S CHRA Garrett Cartridge GT4202R
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany

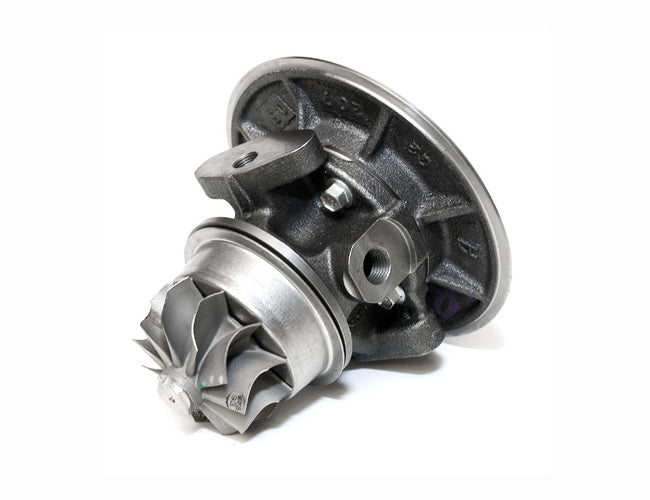

Replacement center cartridge for Garrett turbocharger.
The center hub rotating assembly (CHRA) houses the shaft that connects the compressor impeller and turbine. Garrett components are some of the strongest and most reliable units for your turbo rebuilding needs.
- Ceramic Dual Ball Bearing CHRA
- Oil-cooled bearing system
CHRA Turbochargers GT4202R
TURBINE SIDE
O.D. 82.0mm
I.D. 75.0mm
TRIM 84
COMPRESSOR SIDE
O.D. 102.3mm
I.D. 74.7mm
TRIM 53
Fit on
774595-5007S TURBOCHARGER 1.28 A/R GT4202R
774595-5008S TURBOCHARGER 1.44 A/R GT4202R
