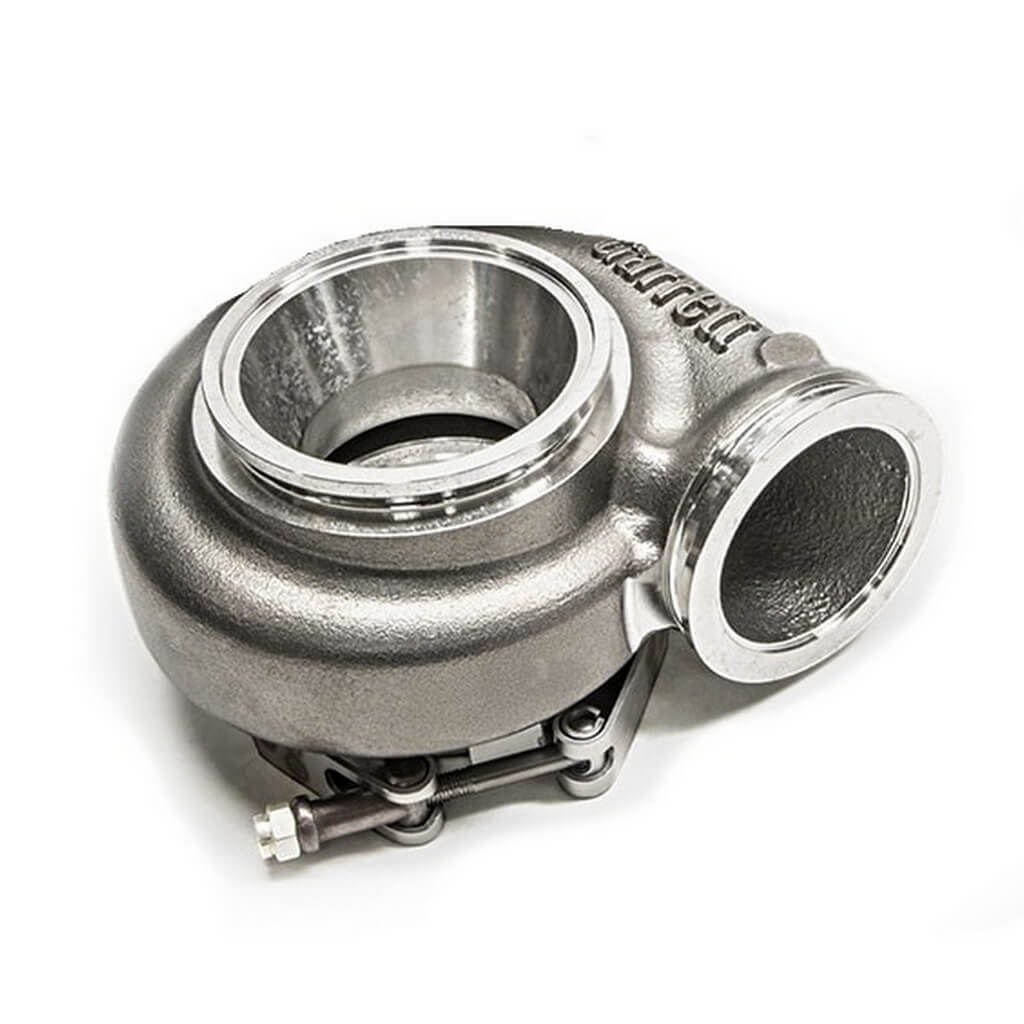

GARRETT 740902-0098 Turbine Housing Kit 1.01 A/R O/V; V-Band In/Out G30 Reverse Rotation Photo-0

GARRETT 740902-0098 Turbine Housing Kit 1.01 A/R O/V; V-Band In/Out G30 Reverse Rotation

€546,21 €642,60

VAT included. Shipping calculated at checkout

GARRETT P/N: 740902-0098
Only 1 unit left
Quantity:
Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 740902-0098 Turbine Housing Kit 1.01 A/R O/V; V-Band In/Out G30 Reverse Rotation

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup currently unavailable

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Description GARRETT 740902-0098 Turbine Housing Kit 1.01 A/R O/V; V-Band In/Out G30 Reverse Rotation

The turbine housing is designed for Garrett G30 reverse rotation turbochargers. It is equipped with V-Band flanges for easy installation and provides excellent flow capacity with an A/R ratio of 1.01.

Features

Main features:

  • Inlet flange: V-Band
  • The output flange: V-Band
  • A/R value: 1.01

Compatible with the turbine wheel:

  • Inlet: 60.00 mm
  • The output: 55.00 mm
  • Trim: 84

Suitable for:

  • Garrett G30-660 Reverse
  • Garrett G30-770 Reverse
  • Garrett G30-900 Reverse
