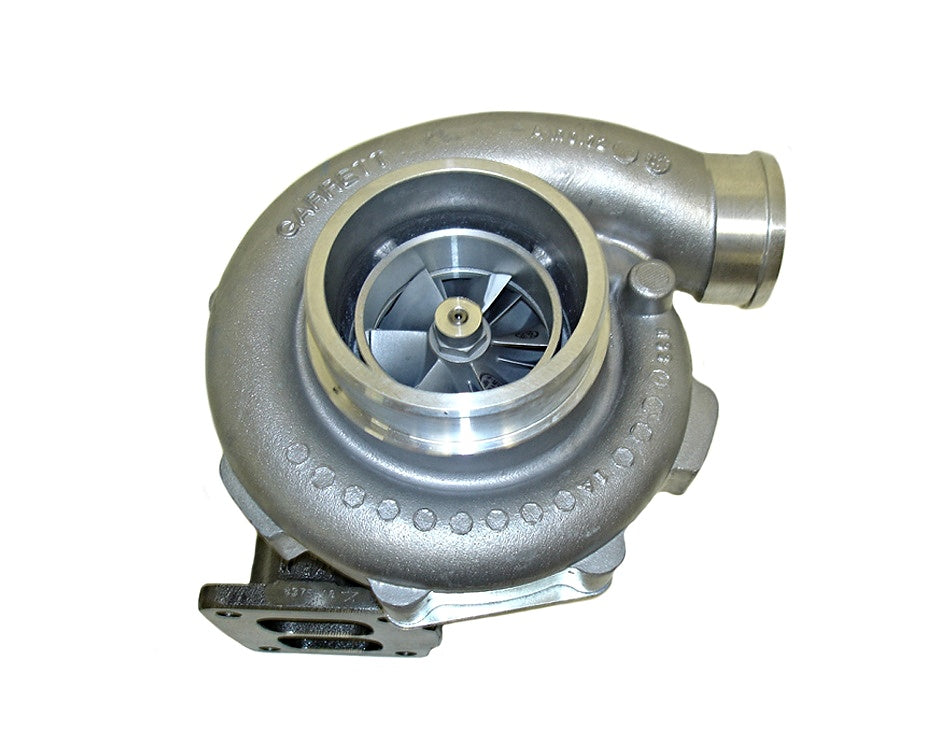

GARRETT 751470-5020S Turbocharger GT4094R .95 A/R Photo-0

GARRETT 751470-5020S Turbocharger GT4094R .95 A/R

€2.134,86

VAT included. Shipping calculated at checkout

GARRETT P/N: 751470-5020S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 751470-5020S Turbocharger GT4094R .95 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Ball bearing.
Oil & Water cooled bearign system.
High perfomance C117 compressor wheel and UHP turbine.
Brings GT ball bearing perfomance to the 800 HP class.
V-band turbine outlet flange.
T4 turbine inlet flange.

Dual ball bearing, oil & water-cooled CHRA
Free float, non-wastegated turbine housing
Ideal for applications that cannot accomodate the
GT4294R but need more flow than the GT4094R
Outline interchangeable with the GT4094R
Ported shroud compressor housing to increase
surge resistance

Turbo Part Number Model Turbine side Compressor side
New Part  Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
  751470-5020S GT4094R 77.0 68.0 78 .95 94.0 67.8 52 .72
HORSEPOWER 450HP - 800HP
DISPLACEMENT 2.0L - 5.7L

448375-0018 Turbine Hsg DIV A/R 0.85
448375-0019 Turbine Hsg Div 0.95 A/R
448375-0020 Turbine Hsg DIV A/R 1.06
773628-0003 Turbine Hsg Kit O/V 1.11 A/R T4
773628-0010 Turbine Hsg Kit 0.85 A/R
773628-0011 Turbine Hsg Kit 0.95 A/R
773628-0012 Turbine Hsg Kit 1.06 A/R
773628-0013 Turbine Hsg Kit 1.19 A/R Bottom of Form
