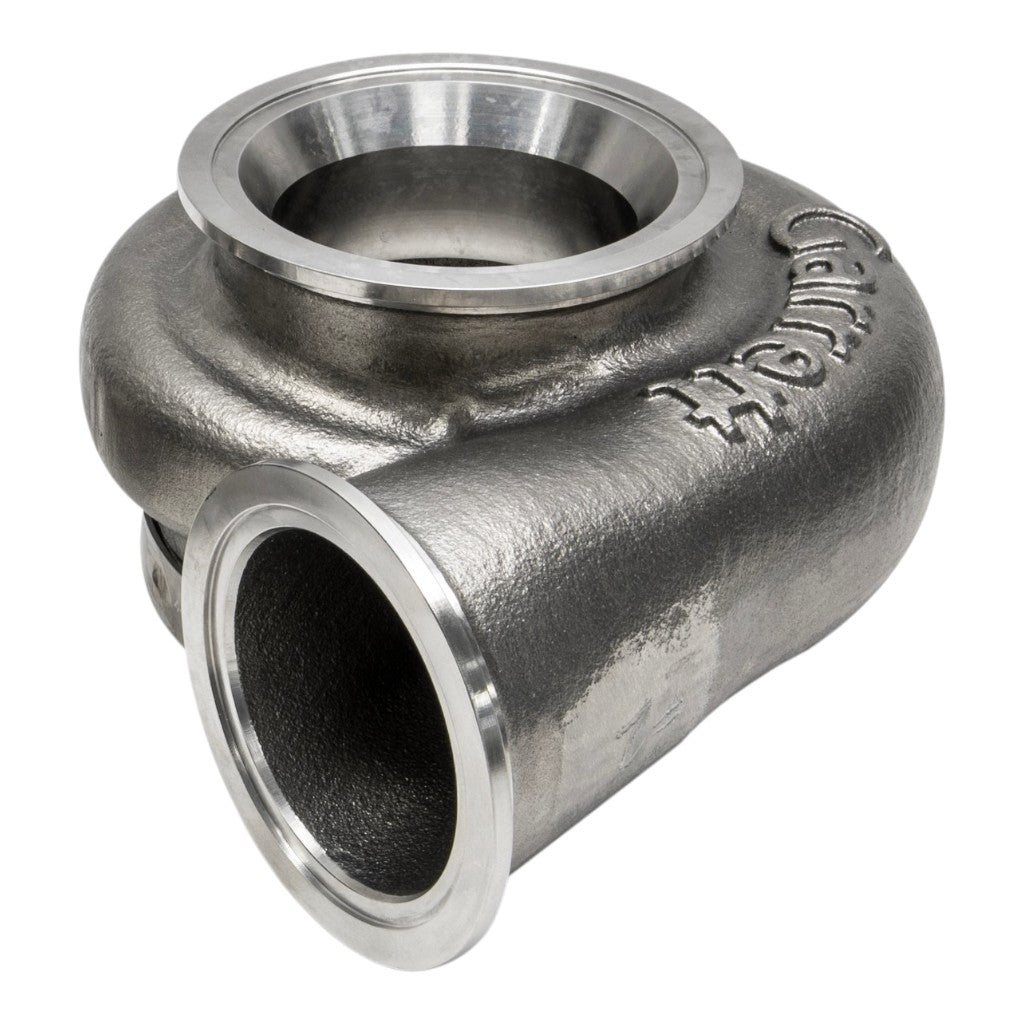

GARRETT 757707-0037 Turbine Housing Kit G38, GXR38 O/V V-Band / V-Band 0.85 A/R
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 757707-0037 Turbine Housing Kit G38, GXR38 O/V V-Band / V-Band 0.85 A/R
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description GARRETT 757707-0037 Turbine Housing Kit G38, GXR38 O/V V-Band / V-Band 0.85 A/R
The GARRETT G38 turbocharger platform is developed for high-performance applications with engine displacements from 2.0L to 5.5L. The turbine section uses an Inconel turbine wheel with a 74 mm inducer and 66 mm exducer, combined with stainless steel turbine housings available in V-Band and T4 divided configurations. Multiple A/R options allow the G38 platform to be adapted to different boost response and power requirements.
The G38 compressor reference range includes the G-XRace GXR38-64 with a 64 mm compressor and hose or V-Band compressor outlet configurations, as well as the G-Series II G38-1000 with a 62 mm compressor and hose compressor outlet. Both variants are engineered to provide increased pressure ratio capability, efficient airflow, reduced weight, and advanced monitoring support.
- Supports 2.0L to 5.5L engine displacements
- Inconel turbine wheel with 74 mm inducer and 66 mm exducer
- Stainless steel turbine housings available in V-Band and T4 divided configurations
- G-Series II compressor aerodynamics support increased boost levels and enhanced power output
- High-flow efficiency helps deliver cooler and denser intake air for improved engine performance
- Engineered to OEM standards for durability, reliability, and long-term performance
- Lightweight aluminum backplate helps reduce turbocharger weight
- Integrated fully machined sensor port enables precise turbo monitoring and tuning
- G-XRace GXR38-64 is available with both V-Band and hose compressor outlet configurations
- G-XRace GXR38-64 is designed for XWorld drag racing and classes with a 64.9 mm compressor inducer limit
- G-XRace GXR38-64 provides a direct upgrade path and outline interchangeability with GXR45-73 for XFWD class applications
- Compatible with G-Smart Module/App PN 923586-0003, Speed Sensor Kit 781328-0003, and Speed Sensor Kit 781328-0004
Specifications:
- Engine Displacement Range: 2.0L - 5.5L
- Turbine Wheel Material: Inconel
- Turbine Wheel Inducer: 74 mm
- Turbine Wheel Exducer: 66 mm
- Turbine Housing Material: Stainless Steel
- Turbine Housing Configurations: V-Band, T4 Divided
- A/R Options: 0.85, 0.95, 1.06
- Compressor Reference: G-XRace GXR38-64 64 mm
- G-XRace GXR38-64 Compressor Outlet: Hose, V-Band
- Compressor Reference: G-Series II G38-1000 62 mm
- G-Series II G38-1000 Compressor Outlet: Hose
- Compressor Inducer Class Limit: 64.9 mm
- Compatible Monitoring Module: G-Smart Module/App PN 923586-0003
- Compatible Speed Sensor Kit: 781328-0003 Street Kit with Gauge
- Compatible Speed Sensor Kit: 781328-0004 Pro Kit without Gauge
