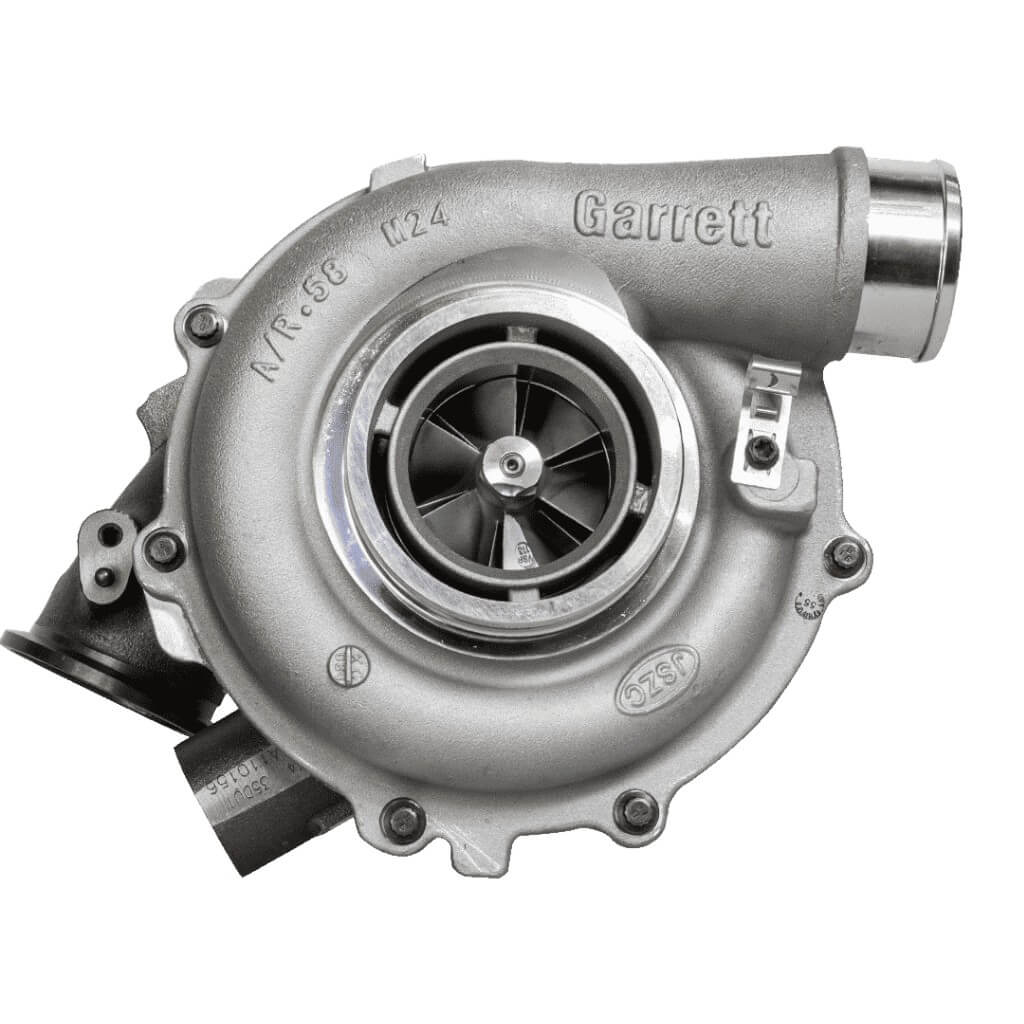

GARRETT 772441-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0L 2004-2007 Photo-0

GARRETT 772441-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0L 2004-2007

€1.744,54

VAT included. Shipping calculated at checkout

GARRETT P/N: 772441-5002S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 13.11.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 772441-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0L 2004-2007

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 772441-5002S Turbocharger GT3788VA Stage 1 AVNT for FORD Power Stroke 6.0L 2004-2007

The Garrett GT3788VA turbocharger is designed as a performance upgrade for the Ford Power Stroke 6.0L (2003), incorporating the patented Advanced Variable Nozzle Turbine (AVNT) technology. This system uses nine movable vanes to precisely control exhaust flow, significantly improving turbine efficiency, boost response, and overall engine performance across the entire RPM range.

Specifications

  • Power Rating: 560 HP
  • Compressor Inducer Diameter: 64 mm
  • Compressor Exducer Diameter: 88 mm
  • Compressor Trim: 52
  • Compressor A/R: 0.58
  • Turbine Inducer Diameter: 73 mm
  • Turbine Exducer Diameter: 66 mm
  • Turbine Trim: 84
  • Turbine A/R: 0.90
  • AVNT variable nozzle turbine with nine movable vanes for improved efficiency
  • Enhanced boost response from low RPM through peak torque range
  • Electro-hydraulic actuation with proportional solenoid for precise control
  • Upgraded compressor wheel for increased power potential
  • Maintains lower turbo speeds for improved durability at equivalent power
  • Direct-fit upgrade for FORD Power Stroke 6.0L 2004-2007
