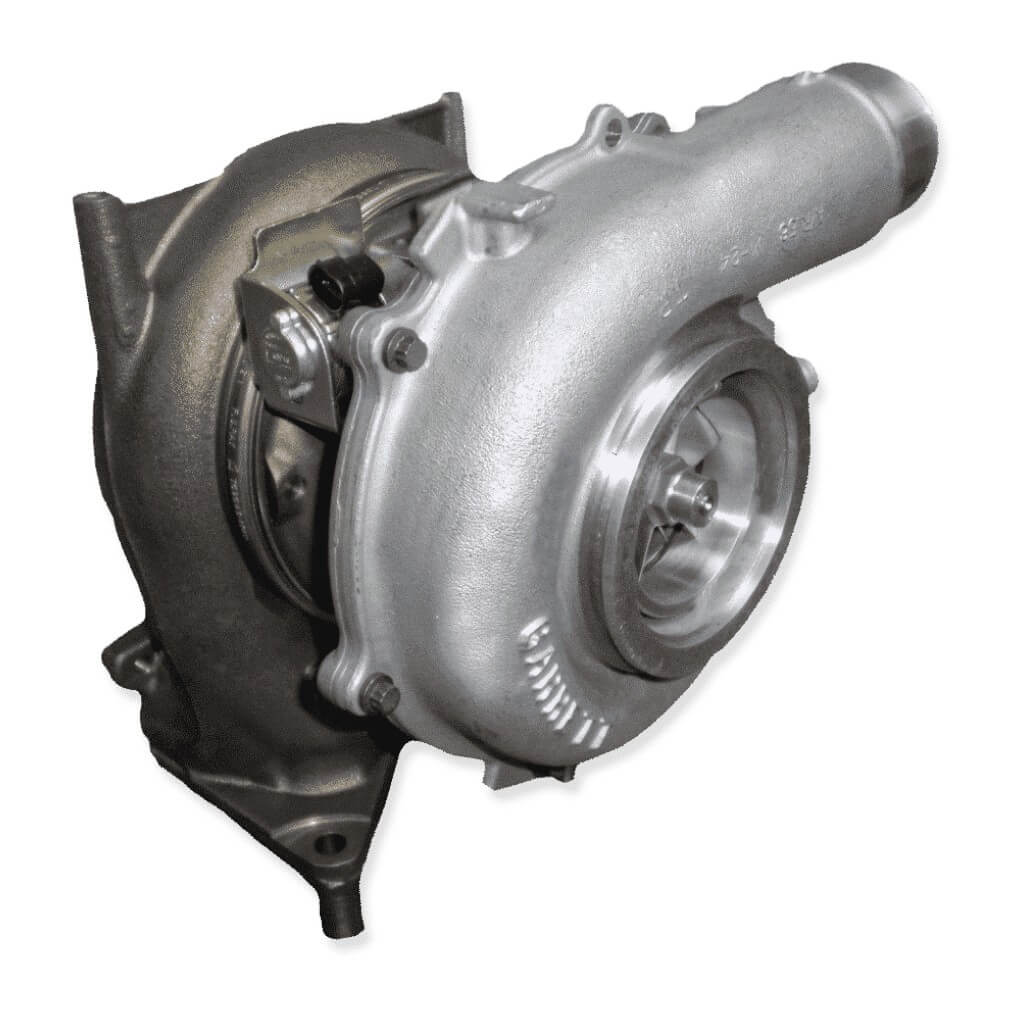

GARRETT 773540-5001S Turbocharger GT3794VA Stage 1 AVNT for CHEVY Duramax 6.6LD 2004-2009 Photo-0

GARRETT 773540-5001S Turbocharger GT3794VA Stage 1 AVNT for CHEVY Duramax 6.6LD 2004-2009

€2.261,00

VAT included. Shipping calculated at checkout

GARRETT P/N: 773540-5001S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 773540-5001S Turbocharger GT3794VA Stage 1 AVNT for CHEVY Duramax 6.6LD 2004-2009

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 773540-5001S Turbocharger GT3794VA Stage 1 AVNT for CHEVY Duramax 6.6LD 2004-2009

The Garrett Duramax Stage 1 turbocharger kit (PN: 773540-5001S) is engineered as a performance upgrade for Chevrolet and GMC Duramax 6.6L engines (2004.5–2009). It incorporates the patented Advanced Variable Nozzle Turbine (AVNT) technology, designed to improve both compressor and turbine airflow while enhancing overall engine efficiency.

Specifications

  • Part Number: 773540-5001S
  • Application: Chevy / GMC Duramax 6.6L (2004.5–2009) Stage 1
  • Power Rating: 590 HP
  • Compressor Inducer Diameter: 65 mm
  • Compressor Exducer Diameter: 94 mm
  • Compressor Trim: 48
  • Compressor A/R: 0.58
  • Turbine Inducer Diameter: 73 mm
  • Turbine Exducer Diameter: 67 mm
  • Turbine Trim: 78
  • Turbine A/R: 0.90
  • AVNT variable nozzle turbine with nine movable vanes for improved efficiency
  • Enhanced boost response and reduced back pressure
  • Lower intake and exhaust gas temperatures under load
  • GT Series compressor wheel design for stable performance
  • Electro-hydraulic actuation with proportional solenoid for precise control
  • Direct replacement fitment for OE turbocharger
