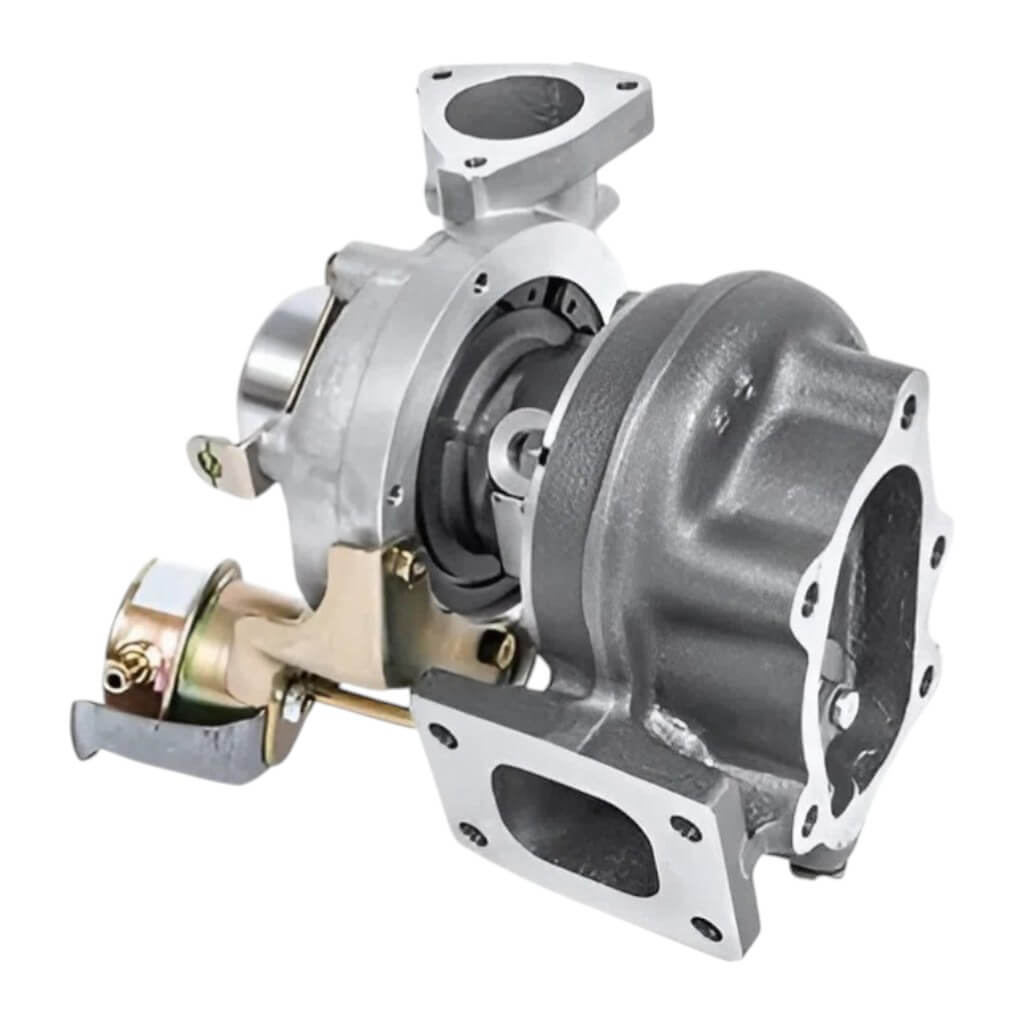

GARRETT 836023-5001S Turbocharger GT2554R 0.64 A/R, T25 / V-Band, Internal Wastegate Photo-0

GARRETT 836023-5001S Turbocharger GT2554R 0.64 A/R, T25 / V-Band, Internal Wastegate

€890,12

VAT included. Shipping calculated at checkout

GARRETT P/N: 836023-5001S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836023-5001S Turbocharger GT2554R 0.64 A/R, T25 / V-Band, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 836023-5001S Turbocharger GT2554R 0.64 A/R, T25 / V-Band, Internal Wastegate

The Garrett GT2554R turbocharger 836023-5001S is designed for compact displacement engines requiring efficient boost delivery and fast response. Supporting a power range of 170 to 270 horsepower, it is suitable for engines from 1.4L to 2.2L, making it applicable for street performance and light motorsport use.

Specifications

  • Power Range: 170 - 270 HP
  • Compressor Inducer Diameter: 42 mm
  • Compressor Exducer Diameter: 54 mm
  • Compressor A/R: 0.80
  • Turbine Inducer Diameter: 53 mm
  • Turbine Exducer Diameter: 42 mm
  • Turbine Trim: 62
  • Turbine A/R: 0.64
  • GT Series aerodynamic design for efficient airflow and performance
  • Smallest ball bearing CHRA configuration for fast spool response
  • Water-cooled CHRA for improved thermal stability
  • Internally wastegated turbine housing for simplified boost control
  • Complete turbocharger assembly with actuator and turbine components
