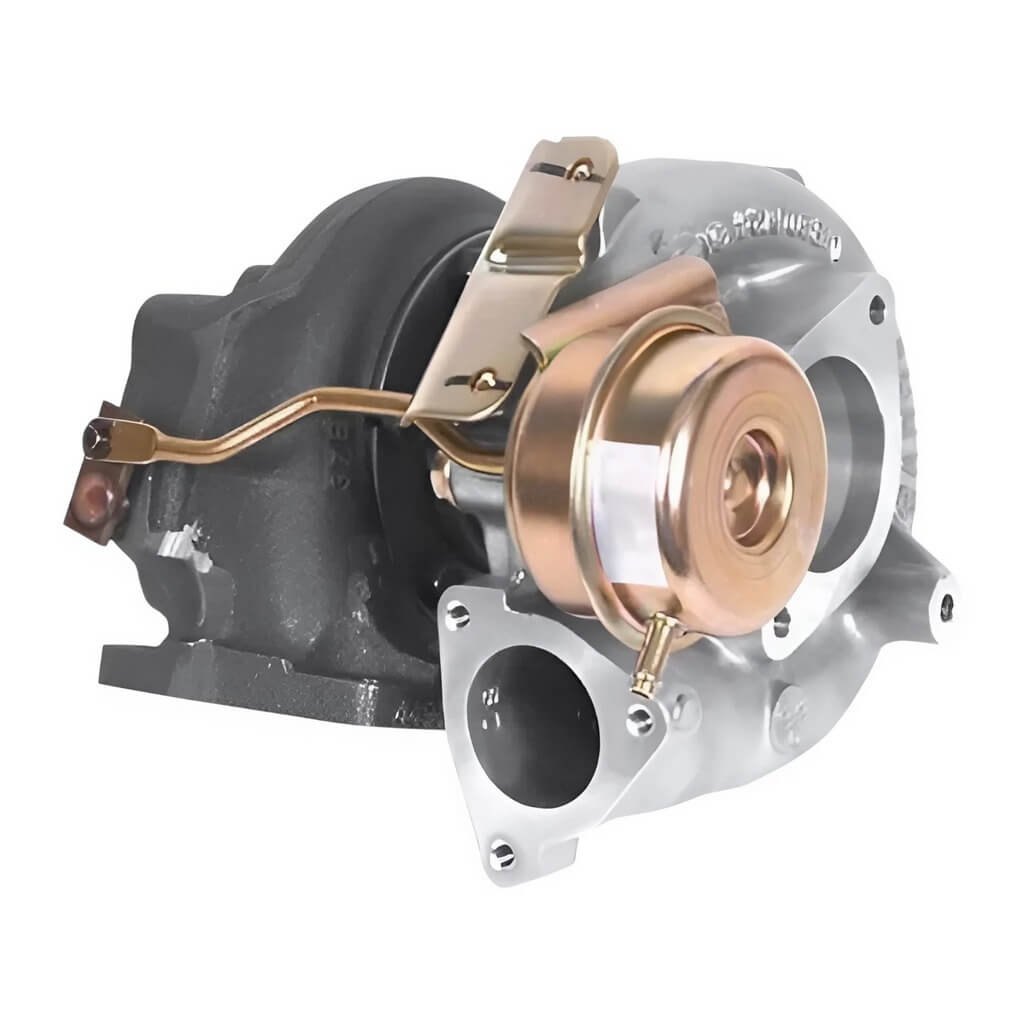

GARRETT 836023-5003S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate Photo-0

GARRETT 836023-5003S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate

€932,96

VAT included. Shipping calculated at checkout

GARRETT P/N: 836023-5003S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836023-5003S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 836023-5003S Turbocharger GT2560R 0.64 A/R, T25 / V-Band, Internal Wastegate

The Garrett GT2560R turbocharger 836023-5003S is designed for performance applications within compact engine platforms, supporting a wide power range while maintaining efficient airflow and responsiveness. Suitable for engines with displacement from 1.4L to 2.5L, it delivers reliable boost characteristics for both street and light motorsport use.

Specifications

  • Power Range: 170 - 270 HP
  • Compressor Inducer Diameter: 46 mm
  • Compressor Exducer Diameter: 60 mm
  • Compressor A/R: 0.80
  • Turbine Inducer Diameter: 53 mm
  • Turbine Exducer Diameter: 42 mm
  • Turbine Trim: 62
  • Turbine A/R: 0.64
  • GT Series aerodynamic design for optimized airflow and efficiency
  • Ball bearing CHRA with water cooling for improved response and durability
  • Internally wastegated turbine housing for simplified boost management
  • Supplied as a complete turbocharger with actuator and turbine components
