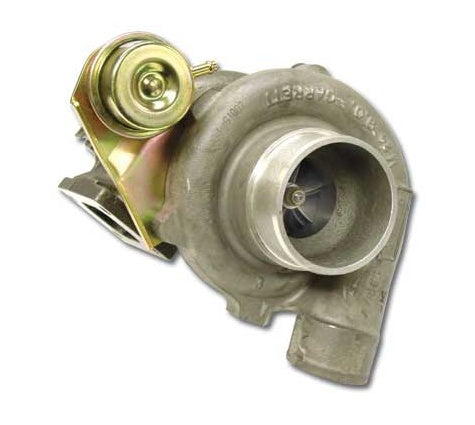

GARRETT 836026-5009S Turbocharger GT2860RS 0.86 A/R Photo-0

GARRETT 836026-5009S Turbocharger GT2860RS 0.86 A/R

€1.224,51

VAT included. Shipping calculated at checkout

GARRETT P/N: 836026-5009S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836026-5009S Turbocharger GT2860RS 0.86 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2554R (471171-0003) and GT2854R (471171-0009); turbine housing flanges are outline interchngeable.
T25 turbine inlet flange.
Great size for applications w/packing constrains.
Essentially, a GT2860RS Disco Potato turbo with a GT2560R compressor housing
Turbine housing option available


Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836026-5009S 739548-5009S GT2860RS 53.8 47.0 76 .86 60.0 47.2 62 .60




HORSEPOWER 250HP - 360HP
DISPLACEMENT 1.8L - 3.0L


C.H.R.A. Part Number
New Part CHRA Old Part CHRA
835998-5007S 446179-5066S

Applicable Garrett P/N's:
739548-5001S
739548-5005S
739548-5009S
739548-5010S
739548-5014S
739548-0001
739548-0005
739548-0009
739548-0010
739548-0014
739548-1
739548-5
739548-9
739548-10
739548-14
